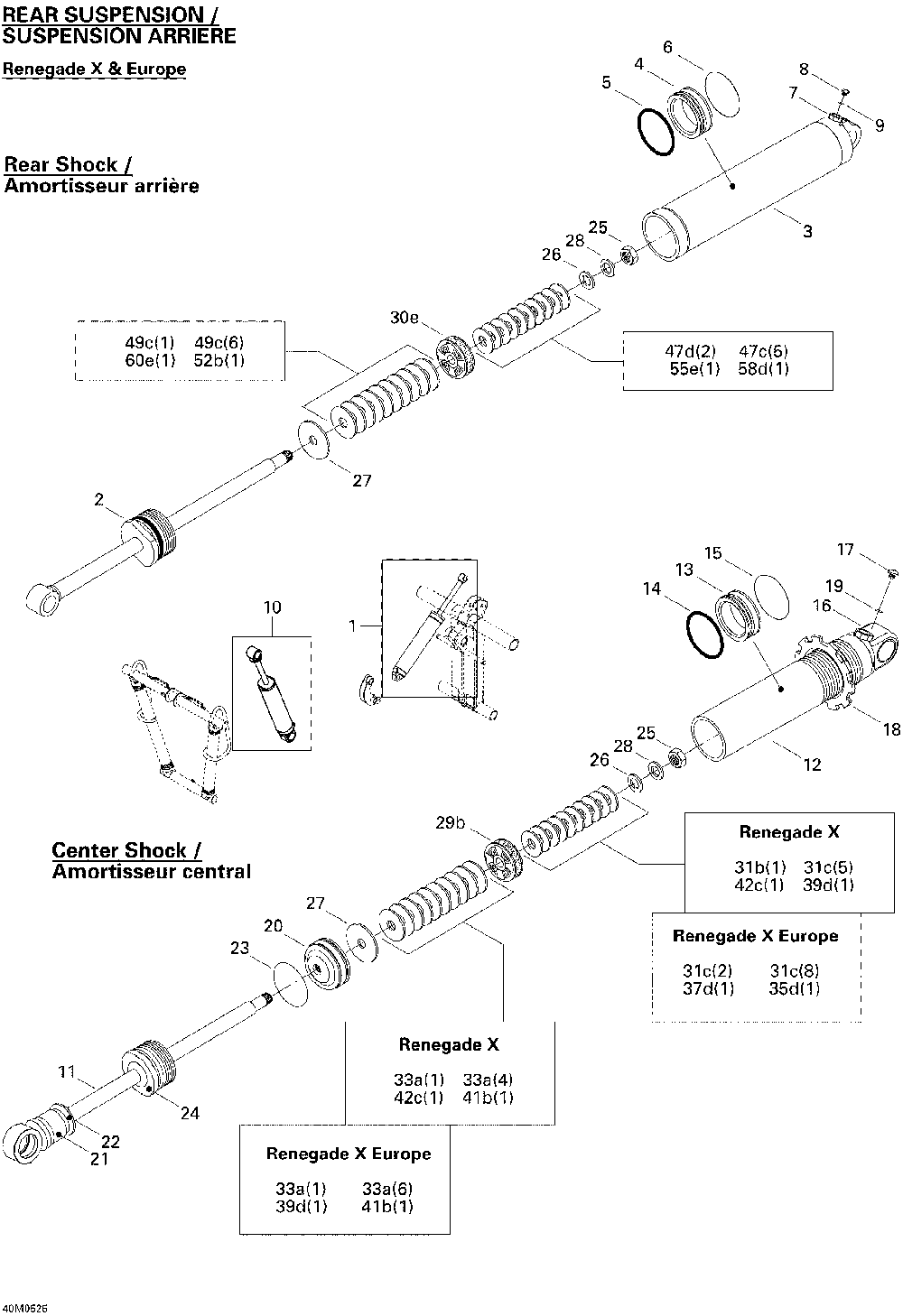

08- take apart shock, rear renegade x, europe

Ski-Doo (Bombardier) MX Z 600 HO SDI Renegade & Renegade X
Ski-Doo (Bombardier)
#oem кодцена
1
503190382
Amort. Arr. *shock-rear Europe
4
503189008
Piston Flott. *piston-flotting
5
503189007
Кольцо
6
503189006
Ring Piston *ring-piston
7
505070398
Soupape Air *valve-air+ring
8
505070399
Винт
9
505070400
Кольцо
10
503191203
Amort.central *shock-center Renegade X
10
503190973
Amort.central *shock-center Europe
13
503189309
Piston Libre *piston-free
14
414888312
Кольцо
15
503189308
Bague *ring-piston
18
414888316
Collet Ressort *collar-spring
29a
414888304
Piston Comp. *piston-comp.
29c
414888305
Piston Comp. *piston-comp.
29e
414888306
Piston Comp. *piston-comp.
29g
414888307
Piston Comp. *piston-comp.
30a
503189004
Tige De Piston *piston-rod
30b
503189003
Tige De Piston *piston-rod
30d
503189002
Tige De Piston *piston-rod
31a
415039100
Lame Soupape *leaf-valve
31b
414888318
Lame Soupape *leaf-valve
31c
414888319
Lame Soupape *leaf-valve
32b
414888320
Lame Soupape *leaf-valve
32c
414888321
Lame Soupape *leaf-valve
33a
415039000
Lame Soupape *leaf-valve
33b
414888322
Lame Soupape *leaf-valve
33c
414888323
Lame Soupape *leaf-valve
35b
414888324
Lame Soupape *leaf-valve
35c
414888325
Lame Soupape *leaf-valve
36d
414888340
Lame Soupape *leaf-valve
37b
414888326
Lame Soupape *leaf-valve
37c
414888327
Lame Soupape *leaf-valve
37d
414888328
Lame Soupape *leaf-valve
39b
414888329
Lame Soupape *leaf-valve
39c
414888330
Lame Soupape *leaf-valve
41a
414888331
Lame Soupape *leaf-valve
41b
414888332
Lame Soupape *leaf-valve
41c
414888333
Lame Soupape *leaf-valve
41d
415038900
Lame Soupape *leaf-valve
42a
414888334
Lame Soupape *leaf-valve
42b
414888335
Lame Soupape *leaf-valve
42c
414888336
Lame Soupape *leaf-valve
42d
414888337
Lame Soupape *leaf-valve
45a
503189538
Lame Soupape *leaf-valve 12xt0.254
45b
414888338
Lame Soupape *leaf-valve
45c
414888339
Lame Soupape *leaf-valve
45d
415038800
Lame Soupape *leaf-valve
46
293600035
Huile Amortis. *oil-shock Not Shown
47b
503189041
Rondelle Piston*washer-piston
47c
503189040
Rondelle Piston*washer-piston
47d
503189039
Rondelle Piston*washer-piston
49b
503189038
Rondelle Piston*washer-piston
49c
503189037
Rondelle Piston*washer-piston
49d
503189036
Rondelle Piston*washer-piston
51a
503189035
Rondelle Piston*washer-piston
51b
503189034
Rondelle Piston*washer-piston
51c
503189033
Rondelle Piston*washer-piston
51d
503189032
Rondelle Piston*washer-piston
51e
503189031
Rondelle Piston*washer-piston
52a
503189030
Rondelle Piston*washer-piston
52b
503189029
Rondelle Piston*washer-piston
52c
503189028
Rondelle Piston*washer-piston
52d
503189027
Rondelle Piston*washer-piston
52e
503189026
Rondelle Piston*washer-piston
53a
503189025
Rondelle Piston*washer-piston
53b
503189024
Rondelle Piston*washer-piston
53c
503189023
Rondelle Piston*washer-piston
53d
503189022
Rondelle Piston*washer-piston
53e
503189021
Rondelle Piston*washer-piston
54a
503189020
Rondelle Piston*washer-piston
54b
503189019
Rondelle Piston*washer-piston
54c
503189018
Rondelle Piston*washer-piston
54d
503189017
Rondelle Piston*washer-piston
54e
503189016
Rondelle Piston*washer-piston
55a
503189015
Rondelle Piston*washer-piston
55b
503189014
Rondelle Piston*washer-piston
55c
503189013
Rondelle Piston*washer-piston
55d
503189012
Rondelle Piston*washer-piston
55e
503189011
Rondelle Piston*washer-piston
10
503191220
Amort.central *shock-center Europe
16
505070398
Soupape Air *valve-air+ring
17
505070399
Винт
19
505070400
Кольцо
