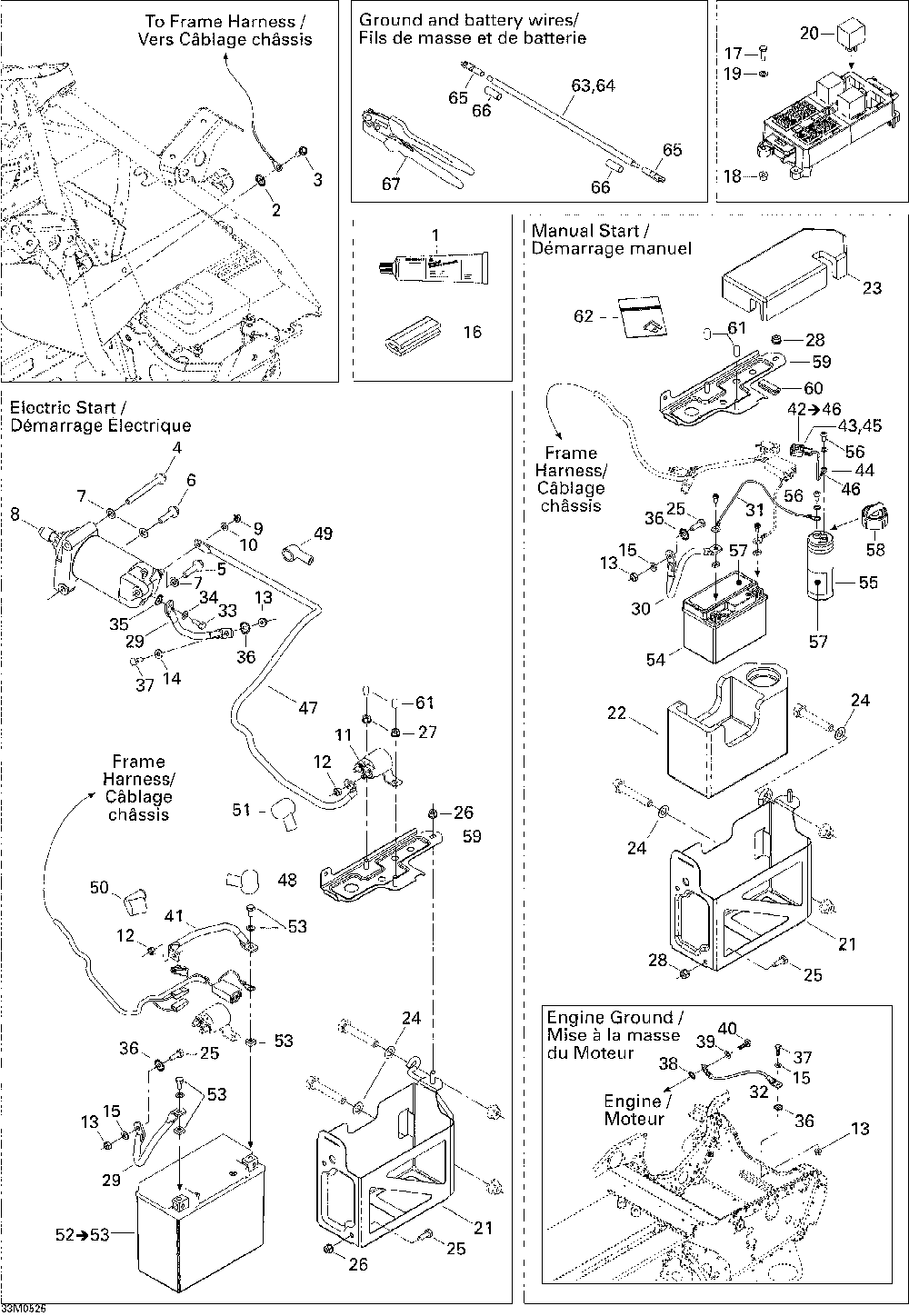

Электрика

Ski-Doo (Bombardier) MX Z 600 HO SDI Renegade & Renegade X
Ski-Doo (Bombardier)
#oem кодцена
1
293550004
Смазка диэлектрическая
2
394001900
Шайба с зубцами
3
210261280
Винт
4
207587544
Screw-hex.flange Din.6921 S.grip Electric Start
5
207583044
Screw-hex.flange Din.6921 S.grip Electric Start
7
250200008
Washer-flat Din.125a Teflon-coat Electric Start
8
515176133
Demarreur *starter Electric Start
9
232561414
Nut-stop Elastic Din.985 Electric Start
10
234061410
Washer-flat M6 Din.125a Electric Start
11
515176011
Solenoide Dem. *relay-starter Electric Start
16
271000110
Moul.protect. *trim-protect.
17
207152044
Винт
18
233251414
Гайка
19
234051410
Шайба
20
410113604
Relais *relay Manual Start
21
515176230
Кронштейн АКБ
22
515176190
Supp Condensate*capacitor Supp Manual Start
23
515176114
Couvercle *cover Manual Start
24
503175800
Шайба
25
207161844
Винт
26
233261414
Nut-flange Elastic Din.6926 Electric Start
29
515175749
Fil De Masse *wire-ground Electric Start
31
515176119
Cablage Masse C*ground Harness Manual Start
32
515176276
Fil De Masse Ba*ground Harness Manual Start
33
207361644
Screw-hex.scotch Grip Din.933 Electric Start
35
250200041
Washer-lock Serrated Int.ext.m6 Electric Start
37
207162044
Винт
38
234481608
Washer-lock Serrated Din.6798a-a2 Manual Start
39
234081410
Washer-flat Din.125a Manual Start
40
207181644
Screw-hex.cap Din.933 Manual Start
41
515175904
Fil De Batterie*battery Wire Electric Start
42
515176120
Cablage Condens*capasitor Harn Includes Items 42 To 46 / Manual Start
43
515175273
Cosse Male *terminal-male Manual Start
44
515175504
Cosse A Oeillet*terminal-ring Manual Start
45
515175509
Logement Male *housing-male Manual Start
48
570151000
Capuchon Prot. *cap-protection Electric Start
49
278001771
Capuchon Batt. *cap-wire Batt. Electric Start
50
570064200
Capuchon Prot. *cap-protection Electric Start
51
515175919
Capuchon Prot. *protector Cap Electric Start
52
410301203
Batterie Ytx20lbs*battery18amps(wet) Includes Items 52 To 53 / Electric Start
53
295500849
Ens. Boulon Ba*fastener Battery Kit Electric Start
54
410301204
Batterie 3 Amp *battery-3 Amp (wet) Manual Start
55
515176025
Condensateur *capacitor Manual Start
56
515176257
Vis 10-32 *screw 10-32 Manual Start
57
516002728
Decalque Conden*capacit Decal Manual Start
58
515176211
Capuchon *cap Manual Start
59
515175735
Laniere Batteri*strip-battery
60
414506600
Moulure Pa-br. *trim-w Shield Manual Start
61
515176141
Крышка
63
278001680
Cable Batt.noir*cable-batt.ground
64
278001690
Cable Batt.roug*cable-batt.red
65
278001682
Cosse Plate P/t*terminal-flat
278001683
Cosse 45 P/t *terminal-45 Deg.
278001684
Cosse 90 P/t *terminal-90 Deg.
278001685
Cosse Plate G/t*terminal-flat
278001686
Cosse 45 G/t *terminal-45 Deg.
278001687
Cosse 90 G/t *terminal-90 Deg.
278001688
Cosse Plate *terminal-flat
278001776
Cosse Plate P/t*terminal-flat
66
710000483
Gaine Thermo. *shrink Tubing
67
529035730
Pince Sertissag*plier-crimp
55
515176387
Condensateur *capacitor Manual Start
56
515176388
Vis 10-32 X 3/8*screw 10-32 Manual Start
6
207583044
Screw-hex.flange Din.6921 S.grip Electric Start
12
232561414
Nut-stop Elastic Din.985 Electric Start
13
232561414
Гайка с тефлоном
14
234061410
Washer-flat M6 Din.125a Electric Start
15
234061410
Шайба
27
233261414
Nut-flange Elastic Din.6926 Electric Start
28
233261414
Nut-flange Elastic Din.6926 Manual Start
30
515175749
Fil De Masse *wire-ground Manual Start
34
234061410
Washer-flat M6 Din.125a Electric Start
36
250200041
Шайба
