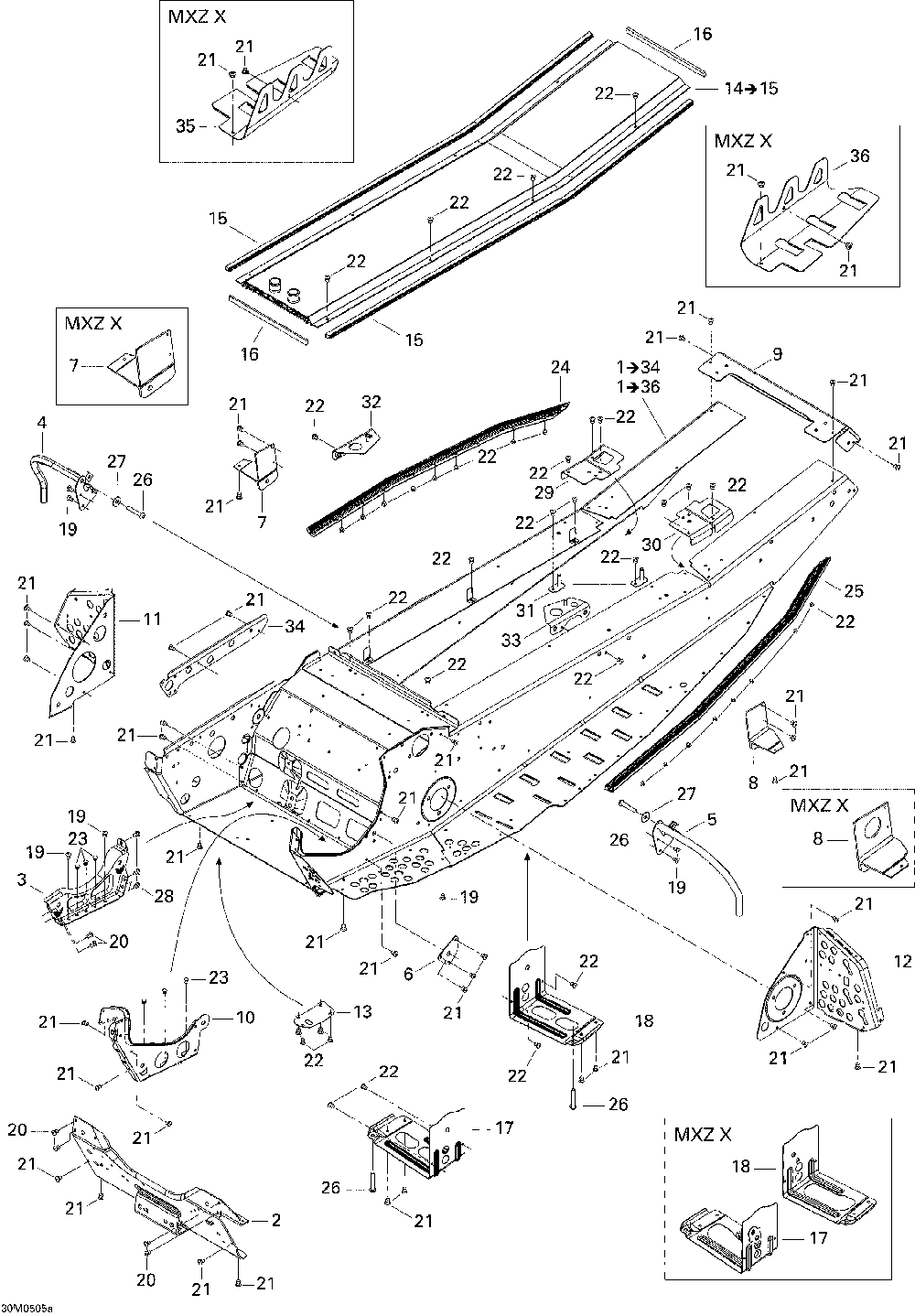

Рама

Ski-Doo (Bombardier) MX Z 600 HO Trail & Adrenaline & X
Ski-Doo (Bombardier)
#oem кодцена
1
415128920
Chassis *frame Service Includes 1 To 34 / Adrenaline & Trail
1
415129233
Chassis *frame Service Includes 1 To 36 / X
2
518323239
Tablier Avant S*front Pan Weld
3
518323346
Supp.moteur *engine Support
4
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
5
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
6
518323507
Renfort Ext. *reinf. Outer
7
518323572
Att.susp.dr. *slide Brkt Rh Adrenaline & Trail
7
518324488
Att.susp.dr. *slide Brkt Rh X
8
518323573
Att.susp.ga. *slide Brkt Lh Adrenaline & Trail
8
518324489
Att.susp.ga. *slide Brkt Lh X
9
518324409
Capuchon *rear Cap
10
518323241
Renfort Int. *inner Reinforcement
11
518323805
Renfort Droit *rh.footrest
12
518324527
Renfort Gauche *reinforcement
13
518324169
Пластина
14
518324242
Radiateur Arr.s*front Rad. Weld. Includes 14 To 15
15
415012300
Защита
16
293200096
Прокладка
17
518323753
Renfort Droit *reinforcement Adrenaline & Trail
17
518324634
Renfort Droit *reinforcement X
18
518323754
Renfort Gauche *reinforcement Adrenaline & Trail
18
518324635
Renfort Gauche *reinforcement X
19
390909200
Заклепка
20
390909100
Заклепка
21
390402200
Rivet-pop 3/16 *rivet-pop 3/16 X
22
390402400
Заклепка 3/16
23
390910300
Rivet Henrob *rivet-henrob
24
518323551
Rouleau Droit *roller-rh
25
518324954
Rouleau Gauche *roller-lh
26
205982086
Screw-socket Bn.hd.s.grip Iso.7380
27
234082410
Шайба
28
293150096
Заклепка
29
518324431
Renf.tunnel Dr.*reinf-frame Rh
30
518324432
Renf.tunnel Ga.*reinf-frame Lh
31
518322791
Att.reserv.so. *brkt-tank Weld
32
518324385
Renfort Tunnel *frame Form. Reinf.
33
518324386
Renfort Tunnel *frame Form. Reinf.
34
518323328
Raidisseur *stiffener
35
518325268
Doublure Tun.dr*liner-tunnel Rh X
36
518325269
Doublure Tunnel*liner-tunnel Lh X
24
518324953
Rouleau Droit *roller-rh
