OPT:METER (DF25AT)(DF30AT) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 30ATS (2019)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2019
DF 30ATS

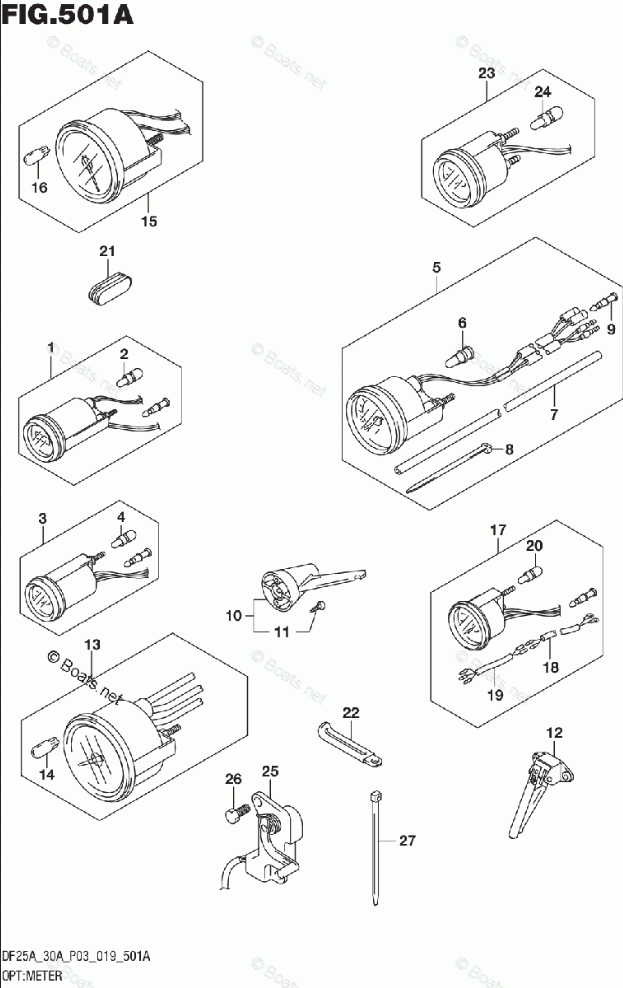

OPT:METER (DF25AT)(DF30AT)
OPT:METER (DF25AT)(DF30AT)

OPT:METER (DF25AT)(DF30AT)

Suzuki Marine DF 30ATS

oem код

название

цена

1-2

34500-93J13

METER ASSY, HOUR *{WHITE}*

1-1

34500-93J02

METER ASSY, HOUR *{BLACK}*

09471-12103

BULB (12V,3W,T6.5)

3-2

34600-93J13

METER ASSY, VOLTAGE *{WHITE}*

3-1

34600-93J02

METER ASSY, VOLTAGE *{BLACK}*

09471-12103

BULB (12V,3W,T6.5)

5-1

34100-93J22

SPEEDOMETER ASSY *{MAX 80KM/H BLACK}*

5-4

34100-93J53

SPEEDOMETER ASSY *{MAX 45KNOTS WHITE}*

5-3

34100-93J42

SPEEDOMETER ASSY *{MAX 45KNOTS BLACK}*

5-2

34100-93J33

SPEEDOMETER ASSY *{MAX 80KM/H WHITE}*

BULB (12V3.4W,T10)

TUBE

CLAMP (L:145)

TERMINAL, RESIN

SENDER ASSY, SPEEDOMETER

03112-0630B

SCREW

34190-87D00

SENDER ASSY, SPEEDOMETER

13-1

34200-93J22

TACHOMETER ASSY *{BLACK}*

13-2

34200-93J34

TACHOMETER ASSY *{WHITE}*

09471-12028

BULB (12V3.4W,T10)

15-2

34200-93J14

TACHOMETER ASSY, WITH MONITOR *{WHITE}*

15-1

34200-93J02

TACHOMETER ASSY, WITH MONITOR *{BLACK}*

09471-12077

BULB (12V1.7W,T10,WB121)

17-2

34300-93J13

GAUGE ASSY, FUEL *{WHITE}*

17-1

34300-93J02

GAUGE ASSY, FUEL *{BLACK}*

LEAD, FUEL GAUGE

ADAPTER, FUEL GAUGE

BULB (12V,3W,T6.5)

PLUG, LOWER COVER

CLAMP, TRIM SENDER LEAD

23-1

34800-93J02

METER ASSY, TRIM *{BLACK}*

23-2

34800-93J13

METER ASSY, TRIM *{WHITE}*

BULB (12V1.7W,T6.5)

SENDER ASSY, TRIM

BOLT (6X16)

CLAMP (L:145)

DF25AT P03 DF30AT P03
