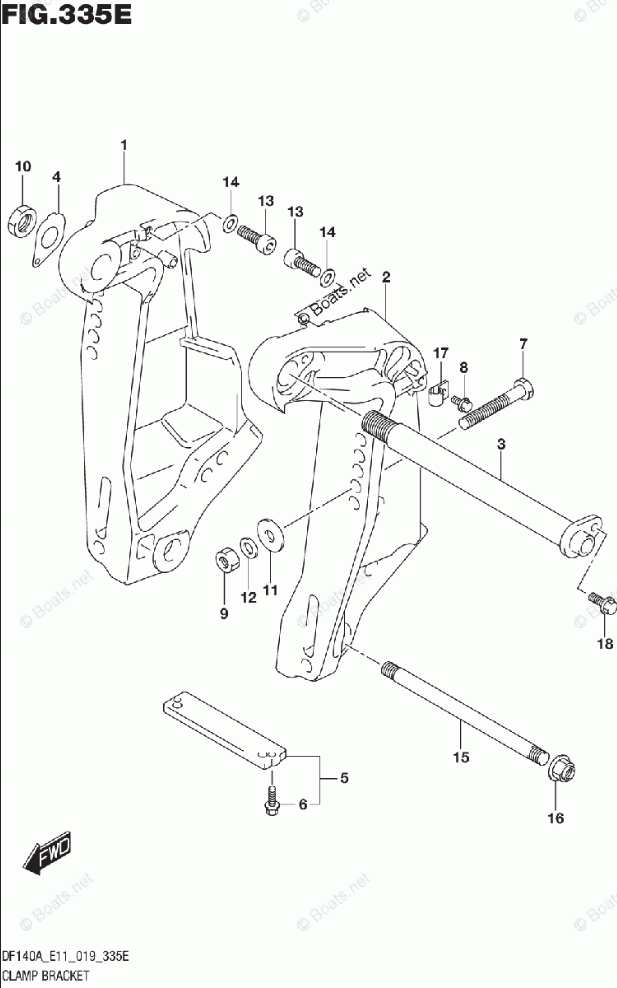

CLAMP BRACKET (DF140AT E40)(DF140AZ E40)
CLAMP BRACKET (DF140AT E40)(DF140AZ E40)

CLAMP BRACKET (DF140AT E40)(DF140AZ E40)

Suzuki Marine DF 140AZX

CLAMP BRACKET (DF140AT E40)(DF140AZ E40)

#

oem код

название

цена

1-2

41111-92J03-Y5S

BRACKET, CLAMP STBD (WHITE)

BRACKET, CLAMP STBD (WHITE)

1-1

41111-92J03-YAY

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2-2

41121-92J21-Y5S

BRACKET, CLAMP PORT (WHITE)

BRACKET, CLAMP PORT (WHITE)

2-1

41121-92J21-YAY

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

4

WASHER, CLAMP BRACKET SHAFT

WASHER, CLAMP BRACKET SHAFT

5

ZINC, PROTECTION

ZINC, PROTECTION

6

BOLT (6X25)

BOLT (6X25)

7

BOLT (12X115)

BOLT (12X115)

8

BOLT (6X12)

BOLT (6X12)

9

NUT

NUT

10

NUT

NUT

11

WASHER (12.5X35X3)

WASHER (12.5X35X3)

12

WASHER (12.5X22X3)

WASHER (12.5X22X3)

13

BOLT (10X20)

BOLT (10X20)

14

WASHER (10.5X19X2)

WASHER (10.5X19X2)

15

PIN, TILT LOCK

PIN, TILT LOCK

16

NUT

NUT

17

CLAMP

CLAMP

18

BOLT (8X22)

BOLT (8X22)

19

DF140AT E40 DF140AZ E40

DF140AT E40 DF140AZ E40
