Рама Запчасти для снегоходов Ski-Doo (Bombardier) Elite 1500 2nd Edition (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

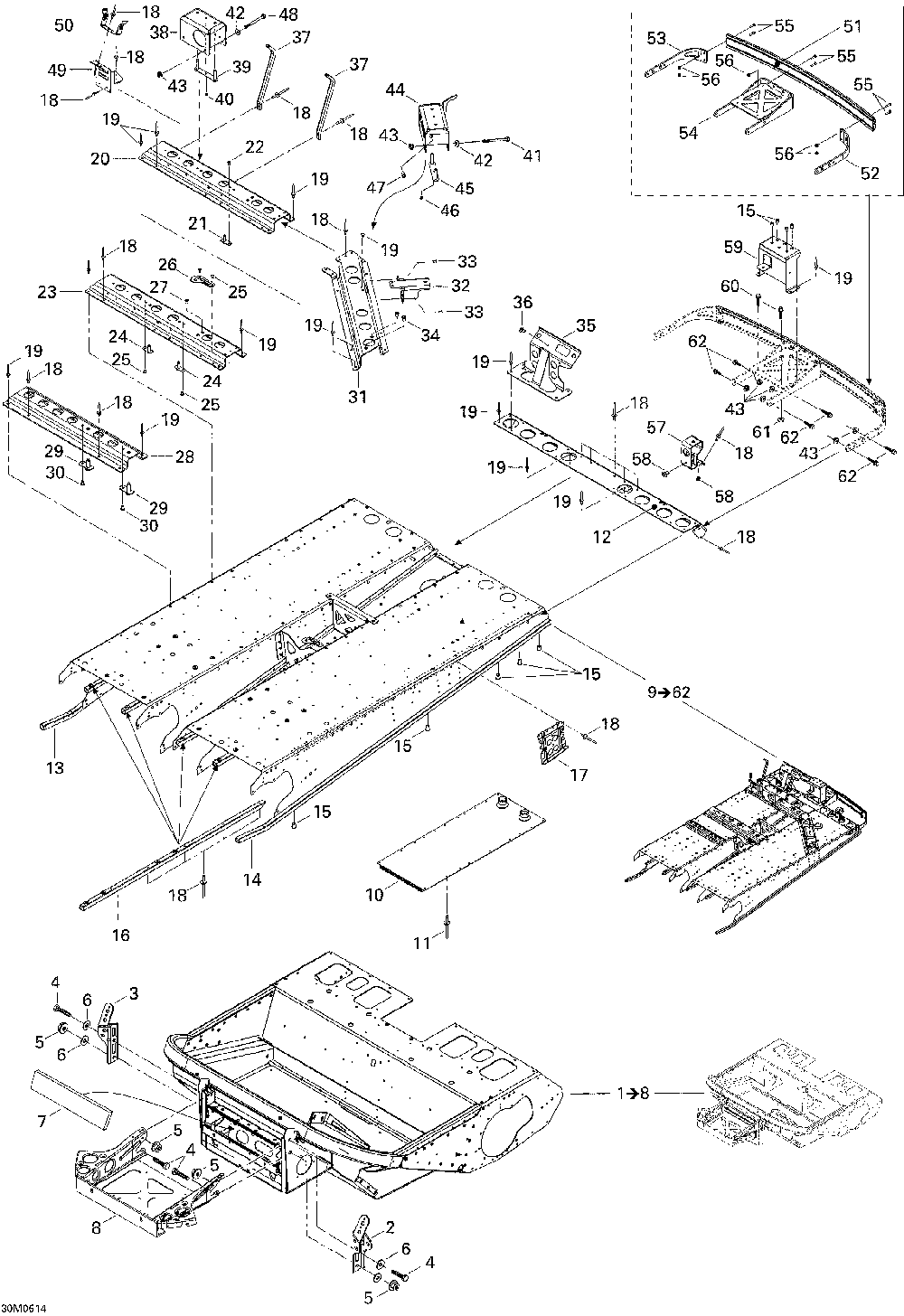

Рама

Ski-Doo (Bombardier) Elite 1500 2nd Edition

Рама

#

oem код

название

цена

2

Attache Amorti.*bracket-shock Lh

Attache Amorti.*bracket-shock Lh

3

Attache Amorti.*bracket-shock Rh

Attache Amorti.*bracket-shock Rh

4

Винт

Винт

5

Гайка

Гайка

6

Шайба

Шайба

8

Ancrage P-choc *front Bumper A

Ancrage P-choc *front Bumper A

9

Tunnel Ass. *frame-forming Assy Includes 9 To 62

Tunnel Ass. *frame-forming Assy Includes 9 To 62

10

Radiateur * Radiator

Radiateur * Radiator

11

Заклепка 3/16

Заклепка 3/16

12

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

13

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

14

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

15

Вставка

Вставка

16

Proctect Tunnel*tunel Protect

Proctect Tunnel*tunel Protect

17

Att.arr.dr.pein*brkt-rr Rh Paint

Att.arr.dr.pein*brkt-rr Rh Paint

17

Att.arr.ga.p. *brkt-rr Lh Paint

Att.arr.ga.p. *brkt-rr Lh Paint

19

Заклепка 3/16

Заклепка 3/16

20

Traverse Tunnel*frame Member

Traverse Tunnel*frame Member

21

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

26

Plaque Soudee *weld Plate

Plaque Soudee *weld Plate

28

Traverse Avant *cross Member

Traverse Avant *cross Member

31

Traverse *cross Member

Traverse *cross Member

32

Support Echap. *exaust Support

Support Echap. *exaust Support

35

Support *bracket

Support *bracket

37

Support *bracket

Support *bracket

38

Socle Droit *supp.engine Rh

Socle Droit *supp.engine Rh

39

Plaque Fixation*fixation Plate Weld

Plaque Fixation*fixation Plate Weld

41

Винт

Винт

42

Шайба

Шайба

44

Socle Ga. *engine Support Lh

Socle Ga. *engine Support Lh

48

Винт

Винт

49

Supp Garde Cour*

Supp Garde Cour*

50

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

51

Бампер задний

Бампер задний

52

Plaque Att.ga. *lh Plate Brack

Plaque Att.ga. *lh Plate Brack

53

Plaque Att.dr. *rh Plate Brack

Plaque Att.dr. *rh Plate Brack

54

Attache Peinte *paint Bracket

Attache Peinte *paint Bracket

55

Винт

Винт

56

Гайка

Гайка

57

Support Silenc.*support-muffler

Support Silenc.*support-muffler

59

Supp Soud Peint*paint Brack

Supp Soud Peint*paint Brack

60

Винт

Винт

61

Гайка

Гайка

62

Винт

Винт

18

Заклепка 3/16

Заклепка 3/16

22

Заклепка 3/16

Заклепка 3/16

23

Traverse Tunnel*frame Member

Traverse Tunnel*frame Member

24

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

25

Заклепка 3/16

Заклепка 3/16

27

Вставка

Вставка

29

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

30

Заклепка 3/16

Заклепка 3/16

33

Заклепка 3/16

Заклепка 3/16

34

Вставка

Вставка

36

Заклепка 3/16

Заклепка 3/16

40

Заклепка 3/16

Заклепка 3/16

43

Гайка

Гайка

45

Plaque Fixation*fixation Plate Weld

Plaque Fixation*fixation Plate Weld

46

Заклепка 3/16

Заклепка 3/16

47

Вставка

Вставка

58

Заклепка 3/16

Заклепка 3/16
