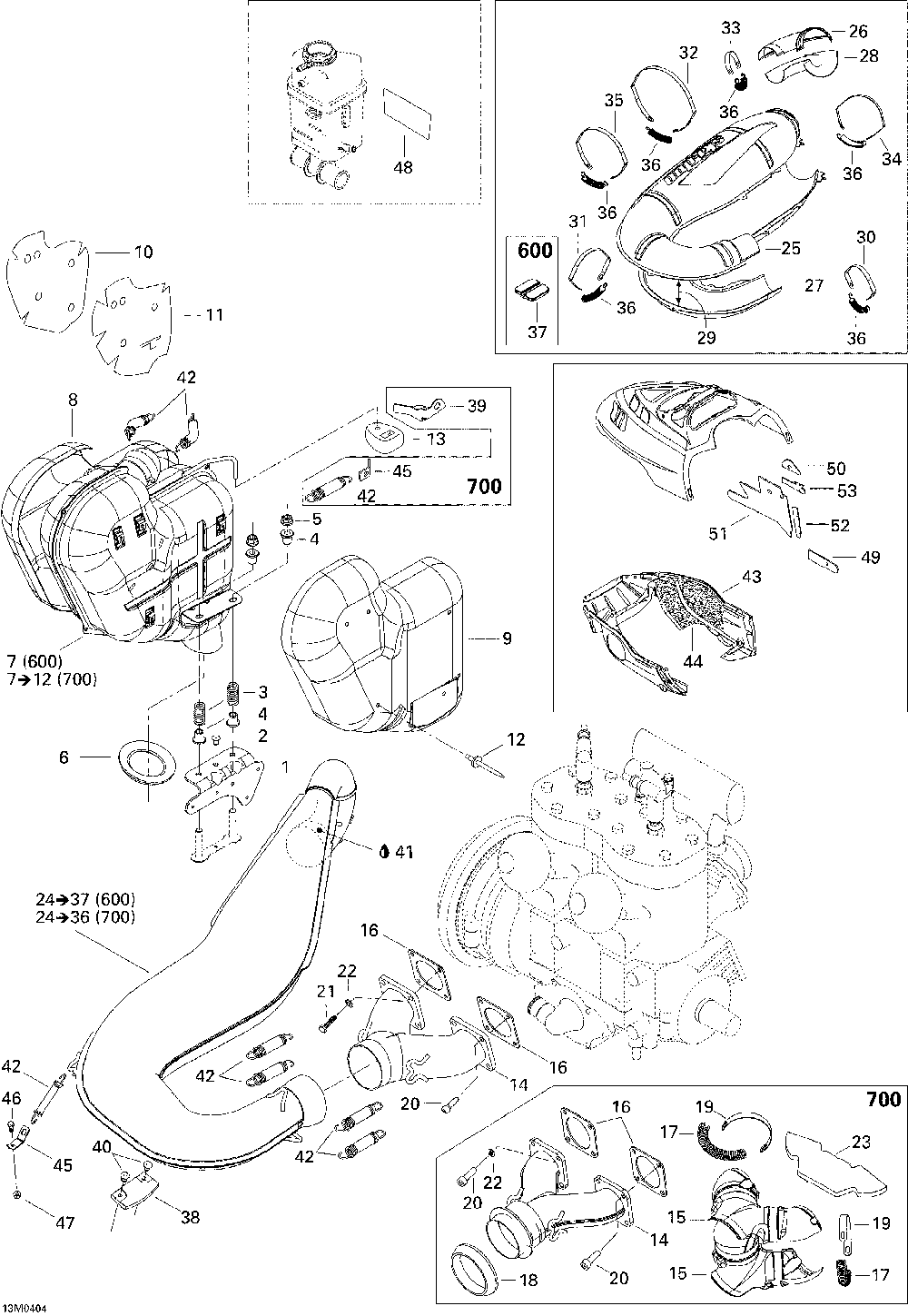

Глушитель

Ski-Doo (Bombardier) Legend 500 SS
Ski-Doo (Bombardier)
#oem кодцена
1
514053263
Attache Sil.so.*brkt-muffler Weld
2
390402200
Заклепка 3/16
3
414913700
Пружина
4
514053343
Направляющая
5
233481413
Lock Spring Nut Din.980m
6
514054224
Rondelle Echapp*grommet-exhaust 700
570039000
Grommet-exhaust D70 600
7
514053326
Silenc. Peint *muffler-paint 600
514053537
Silencieux Ass.*muffler-assy 700 / Includes Items 7 To 12
8
514053160
Defl.chaleur Dr*shield-heat Rh 600
514053606
Defl.chaleur Dr*rh Heat Shield 700
9
514052733
Defl.chaleur Ga*shield-heat Lh 600
514053516
Defl.chaleur Ga*shield-heat Lh Assy 700
10
514052734
Laine Isol.dr *insulating-wooll 600
514053294
Laine Isol.dr *insulating-wooll 700
11
514052844
Laine Isol.ga. *insulating-wooll 600
514053295
Laine Isol.ga. *insulating-wooll 700
12
390910000
Rivet-pop 3/16 *rivet-pop 3/16 600
13
514052704
Butoir Caout. *bumper-rubber
14
420973592
Collect.echapp.*exhaust Manifold 700
420979543
Collect.echapp.*manifold-exh. 600
15
514053593
Env.collect.ech*manifold Exh.envelop. 700
16
420850552
Joint *gasket 700
420931610
Joint *gasket 600
17
514053643
Ressort *spring 700
18
514053487
Joint Echapp. *gasket-exhaust 700
19
514053603
Languette *strap Retaining 700
20
205062044
Screw-socket Hd.din.912 700
205082544
Screw-socket Hd.din.912 600
21
207182044
Screw-hex.cap Din.933 600
22
234161471
Washer-lock Black Din.127b 700
234181401
Washer-lock Din.127b 600
23
514053588
Laine Isolante *wooll Insulating 700
24
514053495
Tuyau Calib.ass*tube-calib.assy 600 / Includes Items 24 To 37
514053506
Tuy. Calib.ass.*tube-calib.assy 700 / Includes Items 24 To 36
25
514053192
Enveloppe Sup. *enveloppe-upp. 600
26
514053193
Enveloppe Sup.a*enveloppe-upp.rr 600
514053313
Enveloppe Sup.a*enveloppe-upp.rr 700
27
514053367
Enveloppe Inf. *enveloppe-lower 600
28
514053196
Enveloppe Inf.a*enveloppe-low.rr 600
514053314
Enveloppe Inf.a*enveloppe-low.rr 700
29
514053285
Laine Isolante *insulating-wooll 600
514053315
Laine Isolante *insulating-wooll 700
30
514053498
Languette *retaining Strap
31
514053501
Languette *retaining Strap
32
514053540
Languette *dstrap-retaining
33
514053491
Languette *retaining Strap 600
514053492
Languette *retaining Strap 700
34
514053500
Languette *retaining Strap
35
514053512
Languette *retaining Strap
37
514053180
Tampon Caout. *pad-rubber 600
38
570044100
Прокладка резиновая
39
514053442
Support Peint *sup.-engine P. 700
40
293150103
Заклепка 3/16
41
293800090
Смазка
42
415107100
Ressort *spring 700
43
514052718
Теплозащита
44
514053390
Теплозащита
45
514053436
Attache Ressort*brachet-spring 600
46
207151244
Винт
47
233251414
Гайка
48
514053399
Теплозащита
49
514053435
Теплозащита
50
514053446
Теплозащита
51
514053624
Теплозащита
52
514053450
Теплозащита
53
514053391
Pare Chaleur *heat Shield For Rim Cab Only
514053192
Enveloppe Sup. *enveloppe-upp. 700
514053367
Enveloppe Inf. *enveloppe-lower 700
415107100
Ressort *spring 600
514053436
Attache Ressort*brachet-spring 700
36
514053643
Пружина
