Clutch Shaft (DF40A)(DF50A)(DF60A) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 50ATL2 (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2018
DF 50ATL2

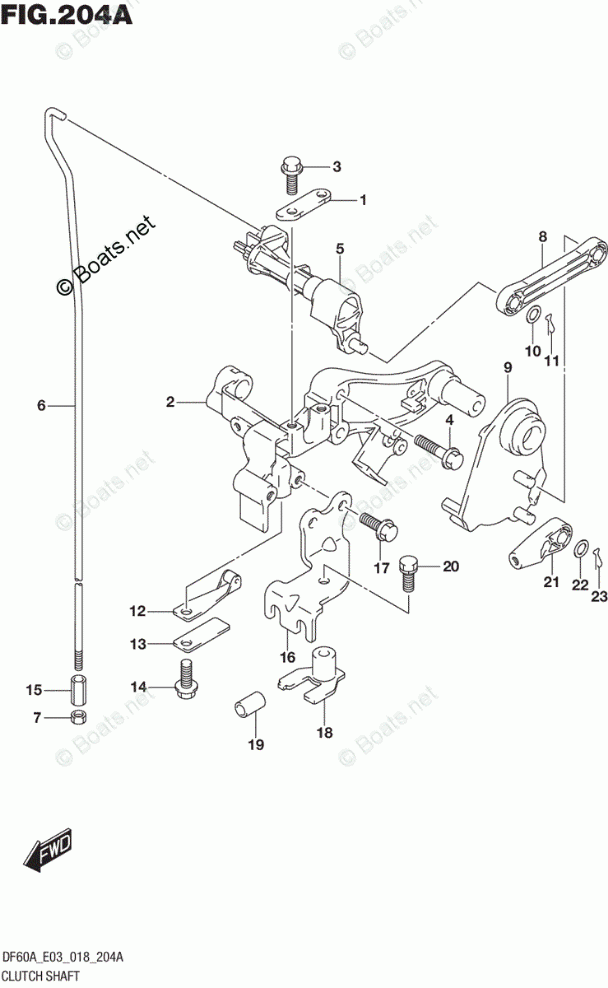

Clutch Shaft (DF40A)(DF50A)(DF60A)
Clutch Shaft (DF40A)(DF50A)(DF60A)

Clutch Shaft (DF40A)(DF50A)(DF60A)

Suzuki Marine DF 50ATL2

Clutch Shaft (DF40A)(DF50A)(DF60A)

#

oem код

название

цена

1

HOLDER, CLUTCH SHAFT

HOLDER, CLUTCH SHAFT

2

HOLDER, CLUTCH LEVER

HOLDER, CLUTCH LEVER

3

BOLT

BOLT

4

BOLT

BOLT

5

SHAFT, CLUTCH

SHAFT, CLUTCH

6

ROD, CLUTCH (L)

ROD, CLUTCH (L)

7

NUT, CLUTCH ROD

NUT, CLUTCH ROD

8

LINK, CLUTCH LEVER

LINK, CLUTCH LEVER

9

LEVER, CLUTCH CONTROL

LEVER, CLUTCH CONTROL

10

WASHER (7X12X1)

WASHER (7X12X1)

11

CLIP

CLIP

12

SPRING, NOTCH PLATE NO.1

SPRING, NOTCH PLATE NO.1

13

SPRING, NOTCH PLATE NO.2

SPRING, NOTCH PLATE NO.2

14

BOLT

BOLT

15

TURNBUCKLE, CLUTCH ROD

TURNBUCKLE, CLUTCH ROD

16

HOLDER, REMOCON CABLE

HOLDER, REMOCON CABLE

17

BOLT

BOLT

18

STOPPER, REMOCON CABLE

STOPPER, REMOCON CABLE

19

09352-70103-600

HOSE (7X10.2X600) *{L:600->14}*

HOSE (7X10.2X600) *{L:600->14}*

20

BOLT

BOLT

21

CONNECTOR, REMOCON CABLE

CONNECTOR, REMOCON CABLE

22

WASHER (7X12X1)

WASHER (7X12X1)

23

CLIP

CLIP

24

DF40A E03 DF50A E03 DF60A E03

DF40A E03 DF50A E03 DF60A E03
