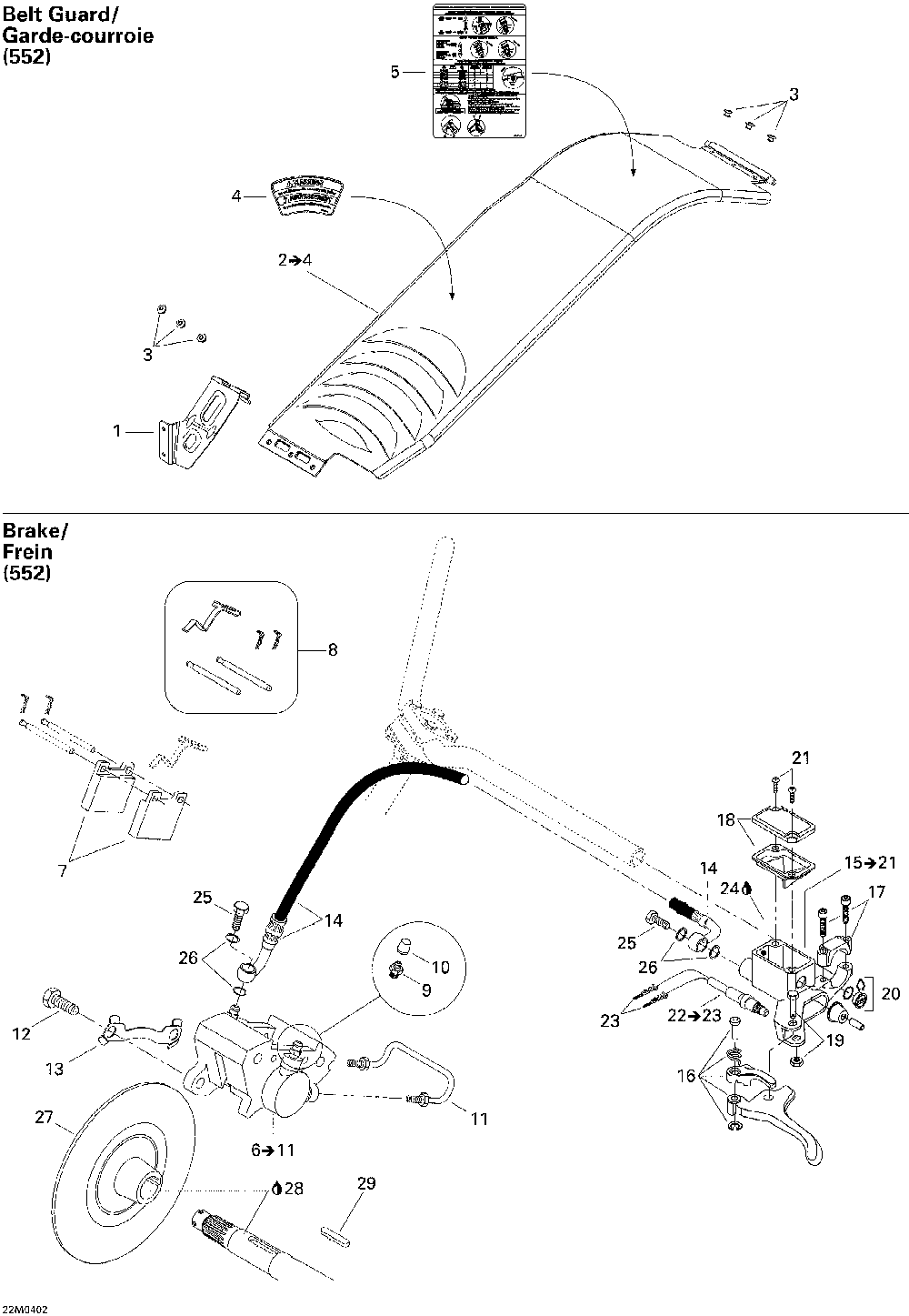

06- brake (550f)

Ski-Doo (Bombardier) MX Z 550F
Ski-Doo (Bombardier)
#oem кодцена
1
417300172
Кронштейн
2
417300173
Garde-courr.ass*guard-belt Assy Includes Items 2 To 4
3
390402200
Заклепка 3/16
4
516002670
Etiquette Secur*security-label
5
516001639
Decal.ajust. *decal-ajust.
6
507032412
Etrier *caliper Includes Items 6 To 11
7
415129172
Ens.garnitures *kit-pads Brake
8
414990700
Ens.axe/res./pi*kit-pin/spr/re
9
414989800
Vis *screw-bleeder
10
414989700
Колпачек
11
414989900
Tube *tubing-rigid
12
207103544
Винт
13
507032316
Frein De Vis *lock-tab
14
507032394
Патрубок
15
507032293
Maitre Cylindre*master-cylind.short Includes Items 15 To 21
16
507032268
Levier Frein Co*lever-brake Short
17
507032477
Хомут
18
415029900
Крышка
19
415030000
Палец
20
414990600
Fenetre *window
21
216141260
Screw-ctsk.fl.hd.ph.din.965a-a2
22
507032366
Micro Contact *microswitch Incl;udes Items 22 To 23
23
515175232
Электрическая клемма "папа"
24
293600063
Liquide-frein *brake Fluid
24
293600062
Liquide-frein *brake Fluid
25
414920500
Болт перепускной
26
414920600
Washer For Hose Connection
27
507032458
Disque Usine *disk-brake Mach.
28
293800070
Смазка
29
507021300
Шпонка
24
293600131
Liquide Frein *brake Fluid
