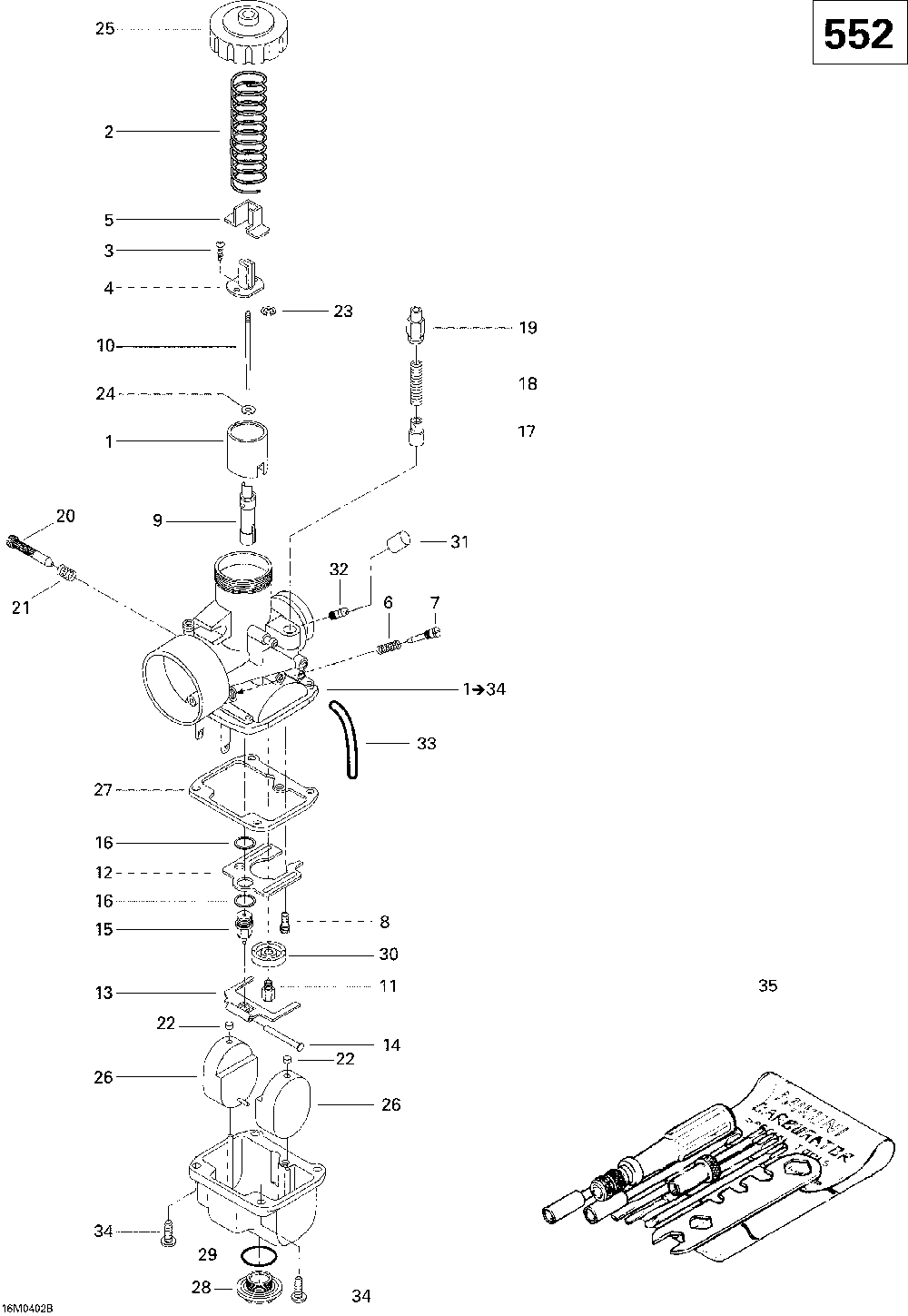

02- carburetors (550f)

Ski-Doo (Bombardier) MX Z 550F
Ski-Doo (Bombardier)
#oem кодцена
1
403138727
Carb.vm-34 *carb-vm-34 Includes Items 1 To 34
2
404128400
Tiroir Acc.2.5 *piston-val.2.5
3
404154800
Пружина
4
404121300
Vis W.rondelle*screw-with Washer
5
404161948
Joint *packing
6
404122100
Крышка
7
404139800
Пружина
8
404149000
Vis Air *screw-air
9
404109100
Gicleur Ralenti*jet-pilot 40
10
404120800
Gicleur Aiguil.*jet Needle
11
404162032
Aiguille *needle 6bcy40
12
404100300
Gicleur Mj 250 *jet-main 250
13
404109600
Chicane *baffle
14
404107600
Levier Flotteur*lever-float
15
404103300
Палец крепления рычага
16
404147500
Pointeau Vs 1.2*valve Needle
17
404101600
Rondelle Siege *washer-seat
18
404161986
Plongeur Ass. *plunger-assy
19
404127400
Пружина
20
404161100
Guide *guide Holder
21
404125200
Vis Etrangleur*screw-throttle
22
404101700
Пружина
23
404105800
Крышка
24
404152400
Rondelle E *ring-e
25
404117000
Joint Tampon *packing
26
404103700
Крышка
27
404107100
Flotte *float
28
404104200
Прокладка
29
404107400
Vis Bouchon *screw-drain Plug
30
404107300
Кольцо
31
404110900
Bague Chicane *ring-baffle
32
404156600
Крышка
33
404153400
Raccord *nipple
34
404161851
Durite *hose
35
404102000
Screw-w/lock *screw-w/lockwasher
36
404112000
Комплект инструментов
