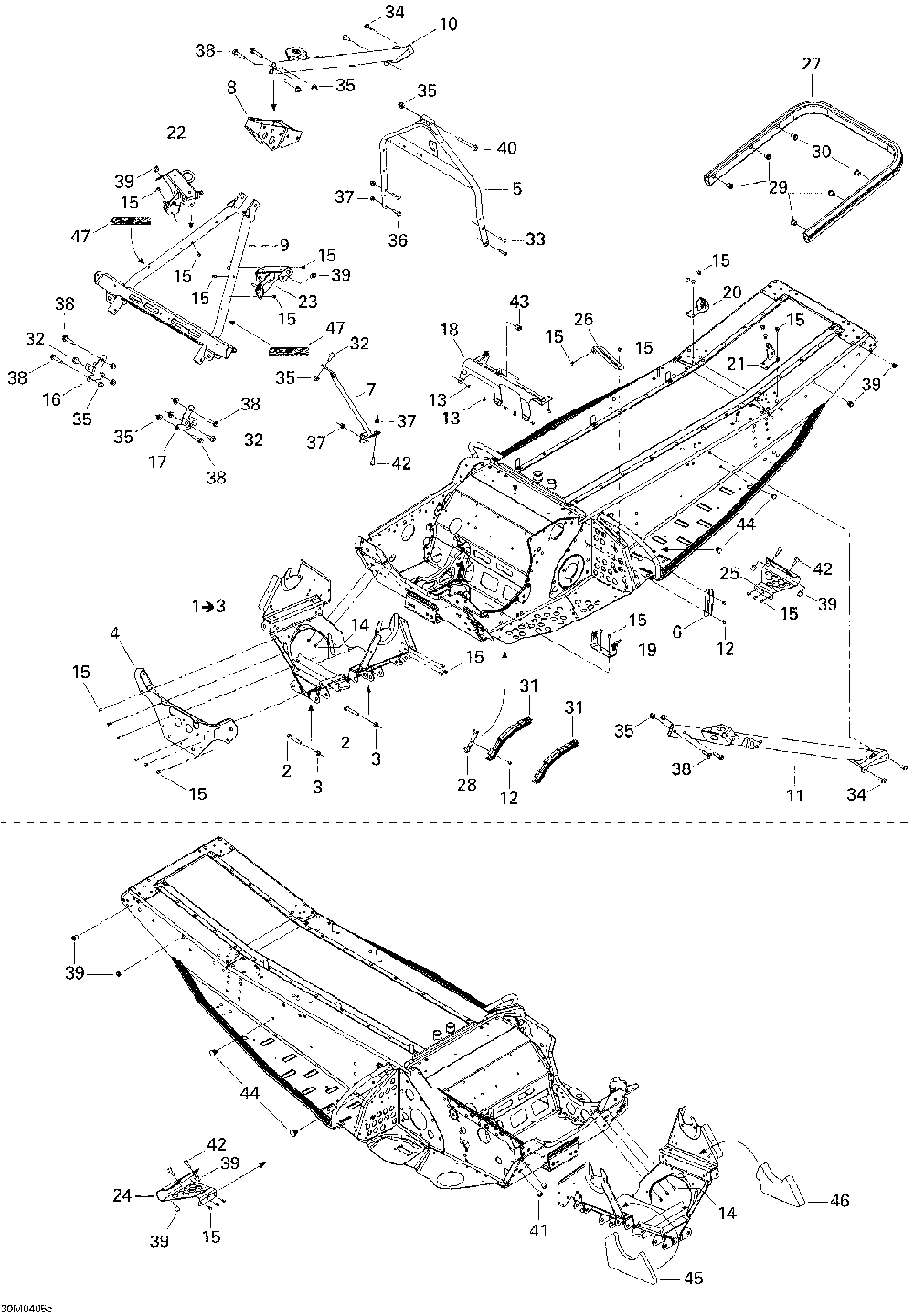

Рама

Ski-Doo (Bombardier) MX Z 800 HO Adrenaline/X
Ski-Doo (Bombardier)
#oem кодцена
1
518325423
Traverse *cross Member Includes Items 1 To 3
1
415128812
Chassis *frame Service Adrenaline & Trail / Includes Items 1 To 33
2
207085044
Винт
415128811
Chassis *frame Service X / Includes Items 1 To 33
3
232581414
Гайка с тефлоном
2
518323346
Supp.moteur *engine Support
3
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
4
518325422
Plaque Avant *plate-front
5
518323979
Supp.guidon Sou*handle Support Weld.
4
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
5
518323507
Renfort Ext. *reinf. Outer
7
518323472
Croisillon Soud*brace-weld
6
518323572
Att.susp.dr. *slide Brkt Rh
8
518323854
Bloc Attache *block-bracket Trail & Adrenaline
7
518323573
Att.susp.ga. *slide Brkt Lh
8
518324409
Capuchon *rear Cap
9
518324739
Traverse *upper Cross
9
518323241
Renfort Int. *inner Reinforcement
10
518323805
Renfort Droit *rh.footrest
10
518323352
Membrure Dr.sou*member-rh Weld.
11
518324527
Renfort Gauche *reinforcement
11
518323354
Membrure Ga.sou*member-lh Weld.
12
390402200
Заклепка 3/16
12
518324169
Пластина
13
518324242
Radiateur Arr.s*front Rad. Weld. 500 Ss & 800 H.o. / Includes Items 13 To 14
13
390402400
Заклепка 3/16
14
390909100
Заклепка
518323646
Radiateur Arr.s*front Rad. Weld. 600 H.o. / Includes Items 13 To 14
15
390909200
Заклепка
14
415012300
Защита
16
518322461
Attache Amorti.*bracket-shock Rh
15
293200003
Joint Etanche *seal-tray
16
518323753
Renfort Droit *reinforcement
17
518322462
Attache Amorti.*bracket-shock Lh
18
518323532
Supp.silenc.adm*sup-intake Air
17
518323754
Renfort Gauche *reinforcement
19
518322726
Attache Gard.co*brkt-guard Belt
20
518323769
Attache Droite *rh.bracket
21
518323770
Кронштейн левый
22
518323535
Supp.console D*support-console Rh
22
390910300
Rivet Henrob *rivet-henrob
23
518322962
Supp.console G *support-console Lh
24
518324391
Accroche Pied D*toe Hold Rh
23
518323551
Rouleau Droit *roller-rh
24
518324954
Rouleau Gauche *roller-lh
25
518324392
Accroche-pied G*toe-hold Lh
26
518323105
Пластина
27
518325216
Pare-choc *rear Bumper
26
234082410
Шайба
28
518323896
Attache Coffre *bracket Trunk
27
293150096
Заклепка
29
207682044
Винт
28
518323919
Renf.tunnel Dr.*reinf-frame Rh
29
518324432
Renf.tunnel Ga.*reinf-frame Lh
30
518322791
Att.reserv.so. *brkt-tank Weld
31
518324071
Protecteur Av. *front Protect.
31
518323336
Renfort Tunnel *frame Form. Reinf.
33
205862044
Screw-socket Ctsk.din.7991 S.grip
32
518323337
Renfort Tunnel *frame Form. Reinf.
34
250000149
Screw-pan Hd.torx Nylon Patch X
33
518323328
Raidisseur *stiffener
250000154
Screw-pan Hd.torx M8 X 13 Trail & Adrenaline
35
233281414
Гайка
36
207662544
Винт
37
233261414
Гайка
38
207683544
Винт
39
415107300
Вставка
40
207687044
Винт
41
293450166
Вставка
42
207662044
Винт
43
293450232
Вставка
44
518321954
Attache Panneau*panel-fastener
45
518323453
Поролон
46
518323007
Поролон
47
516001725
Decal.chassis *frame Decal
23
518324953
Rouleau Droit *roller-rh
32
518324386
Renfort Tunnel *frame Form. Reinf.
