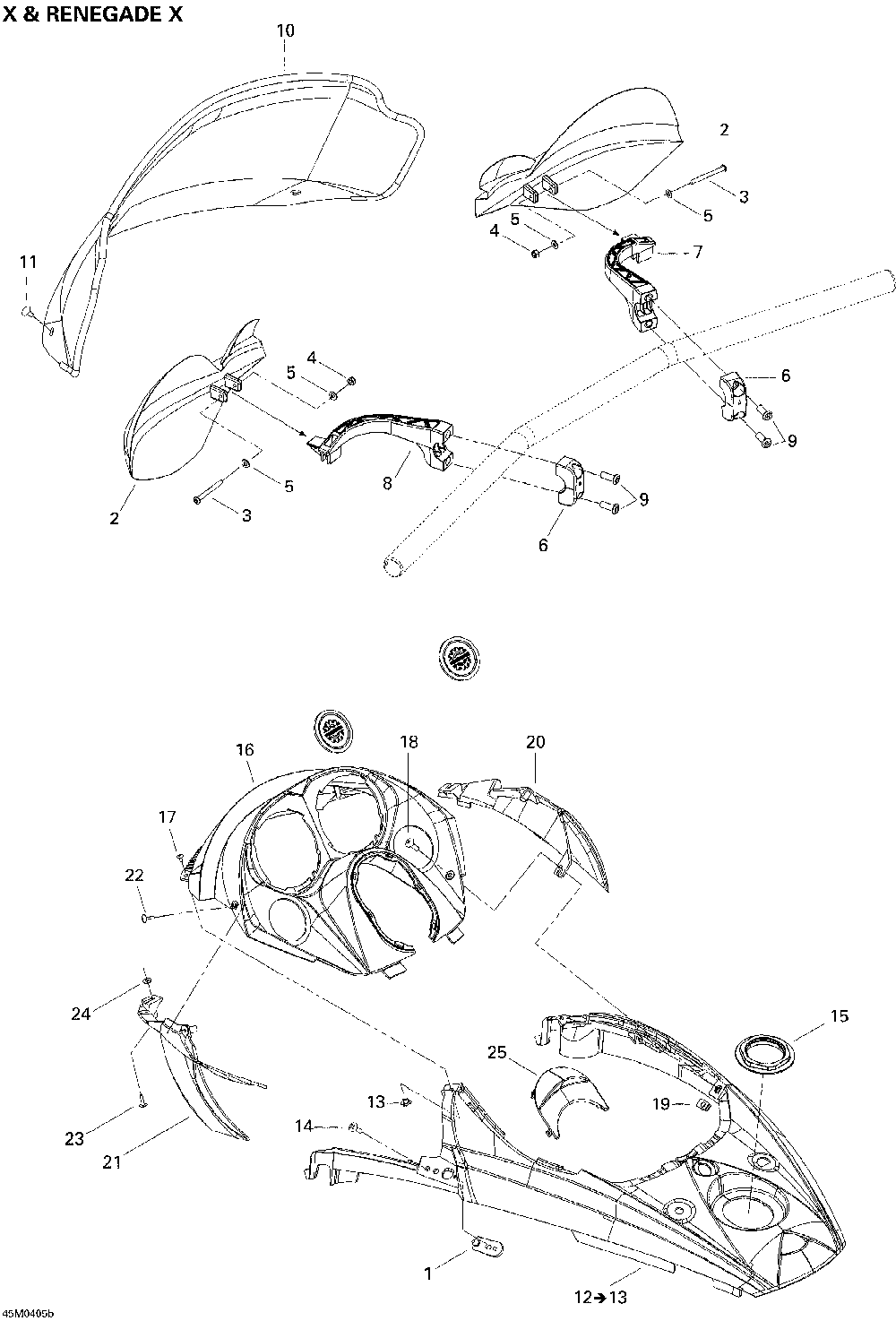

09- windshield and console (x & renegade x)

Ski-Doo (Bombardier) MX Z 800 HO Adrenaline/X
Ski-Doo (Bombardier)
#oem кодцена
1
517302616
Loquet Capot *latch-hood
2
415128768
Ens.deflec.air *kit Air Deflector Yellow X & Renegade X
3
205444086
Screw-socket Bn.hd.gm6174 X & Renegade X
4
232541484
Nut-stop Elastic Din.985 X & Renegade X
5
234041480
Washer-flat Din.125a X & Renegade X
6
517303264
Bride En U *u-clamp X & Renegade X
7
517303590
Supp.deflecteur*support-deflector X & Renegade X
8
517303591
Supp.deflecteur*support-deflector X & Renegade X
9
250000172
Screw-socket Bn.hd.gm6047m Nylon Patch X & Renegade X
10
517303045
Pare-brise Bas *low Winds X & Renegade X
11
293150089
Plastique Rivet Tuflok X & Renegade X
12
517302795
Console Cent. *console-center Includes Items 12 To 13 / Black (b-160)
517302845
Console Cent. *console-center Includes Items 12 To 13 / Yellow (b-190)
517303068
Console Cent. *console-center Includes Items 12 To 13 / Voltage Blue Metallic (b-225)
13
250100030
Flange Nut "t" Type M4
14
250000128
Винт Torx (отпуск.по 10 шт)
15
517302575
Гайка
16
517303472
Support Ind. *indicator Support X & Renegade X
17
250000127
Винт Torx (отпуск.по 10 шт)
18
250000130
Винт Torx (отпуск.по 10 шт)
19
250000079
Гайка M5 X 0.8 (отпуск.по 10 шт)
20
517302798
Deflecteur Air *air Deflector Rh X & Renegade X
21
517302799
Deflecteur Air *air Deflector Lh X & Renegade X
22
250000084
Phil-truss Pt Gm6047m K40 X 16
23
250000113
Винт M4 X 16
24
234042600
Шайба
25
517302592
Capuchon Consol*cap-console
