ВОДЯНОЙ НАСОС Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 350ATXX2 (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2018
DF 350ATXX2
ВОДЯНОЙ НАСОС
ВОДЯНОЙ НАСОС

ВОДЯНОЙ НАСОС

Suzuki Marine DF 350ATXX2

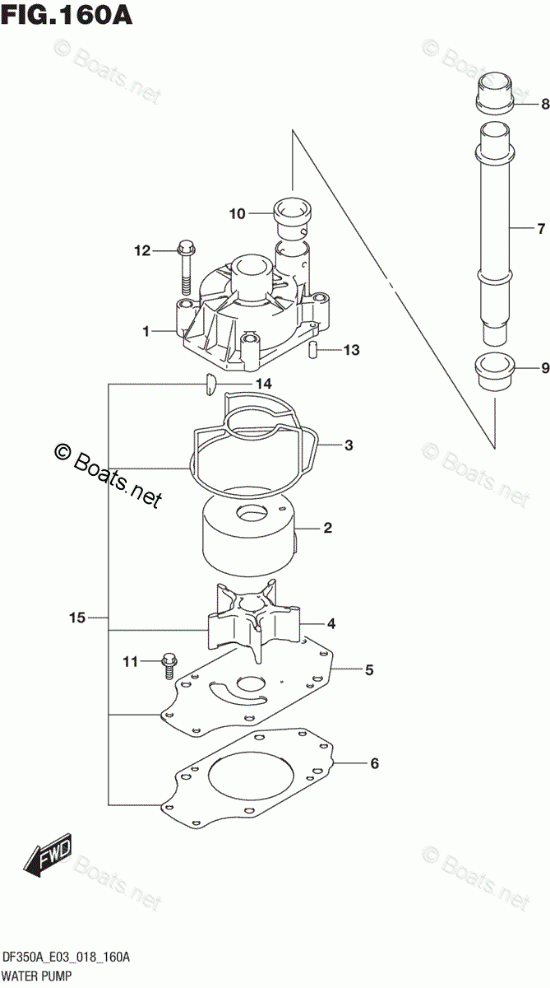

ВОДЯНОЙ НАСОС

#

oem код

название

цена

1

CASE, WATER PUMP

CASE, WATER PUMP

2

SLEEVE, CASE

SLEEVE, CASE

3

SEALING, CASE

SEALING, CASE

4

IMPELLER, WATER PUMP

IMPELLER, WATER PUMP

5

PANEL, PUMP CASE UNDER

PANEL, PUMP CASE UNDER

6

GASKET, PUMP CASE PANEL

GASKET, PUMP CASE PANEL

7-1

TUBE, WATER (X) *{W/TRANSOM(X)}*

TUBE, WATER (X) *{W/TRANSOM(X)}*

7-2

TUBE, WATER (XX) *{W/TRANSOM(XX)}*

TUBE, WATER (XX) *{W/TRANSOM(XX)}*

8

BUSH, WATER TUBE UPPER

BUSH, WATER TUBE UPPER

9

BUSH, WATER TUBE LOWER

BUSH, WATER TUBE LOWER

10

BUSH, WATER PUMP CASE

BUSH, WATER PUMP CASE

11

BOLT, PUMP CASE PANEL

BOLT, PUMP CASE PANEL

12

BOLT (8X45)

BOLT (8X45)

13

PIN (6X12)

PIN (6X12)

14

KEY

KEY

15

WATER PUMP REPAIR KIT *{OPT}*

WATER PUMP REPAIR KIT *{OPT}*
