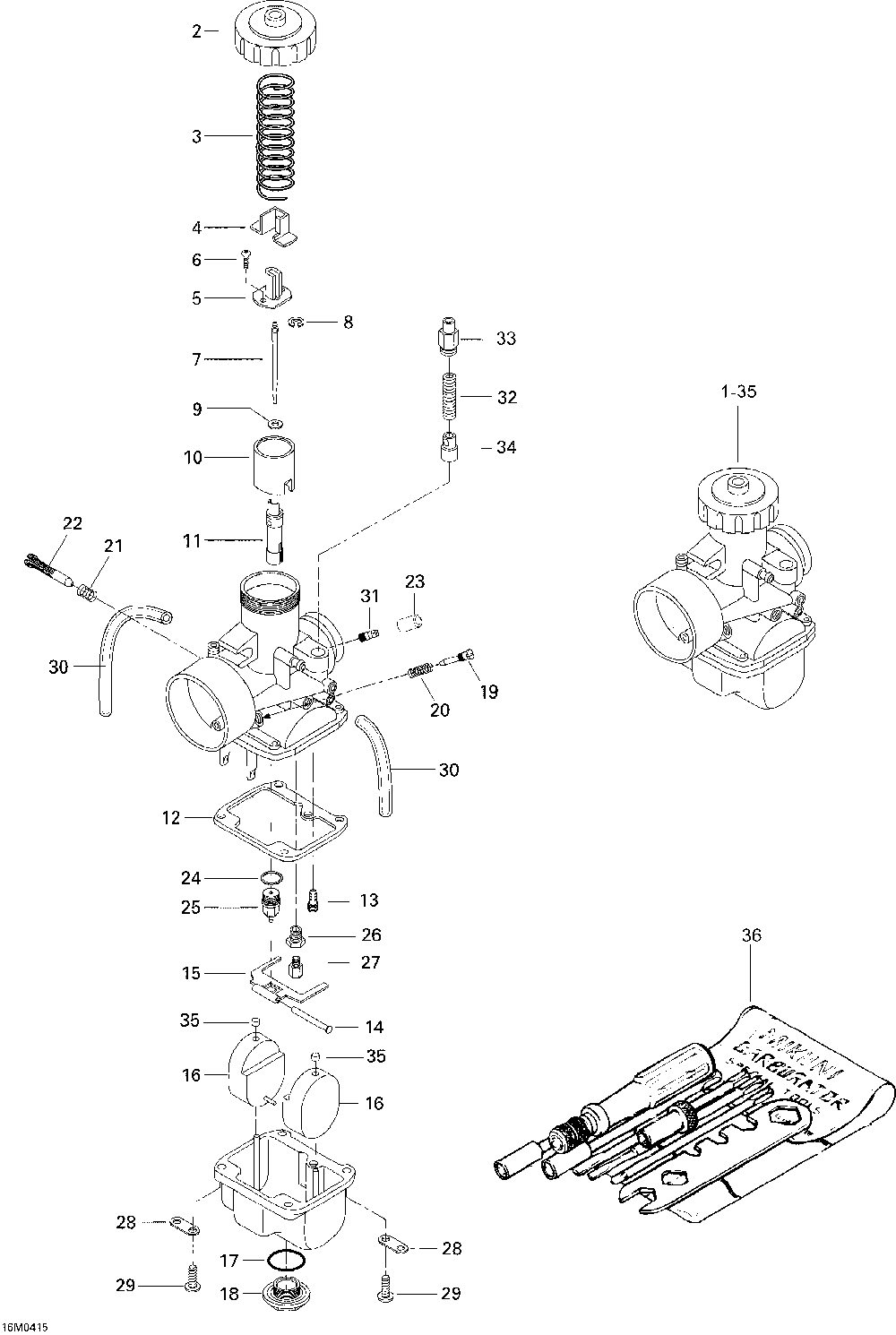

Карбюратор

Ski-Doo (Bombardier) Skandic 600 SUV
Ski-Doo (Bombardier)
#oem кодцена
1
M19171
Carb.vm-34 *carb-vm-34 550f Suv Includes Items 1 To 35
1
M19169
Carb.vm-38 *carb-vm-38 600 Suv Includes Item 1 To 35
2
404103700
Couvercle Carb.*top-mix.chamb. 550f Suv
2
404105100
Couvercle Carb.*top-mix.chamb. 600 Suv
3
404154800
Пружина
4
404122100
Крышка
5
404160800
Connecteur *connector
6
404121300
Vis W.rondelle*screw-with Washer
7
404101900
Aiguille 6dh04 *needle Jet 550f Suv
7
404162064
Aiguille *needle 600 Suv
8
404152400
Rondelle E *ring-e
9
404117000
Joint Tampon *packing
10
404128400
Tiroir Acc.2.5 *piston-val.2.5
11
404107000
Gicleur Aiguil.*jet Needle 550f Suv
11
404161805
Gicleur Aiguil.*jet Needle 600 Suv
12
404104200
Joint *gasket 550f Suv
12
404104700
Joint *gasket 600 Suv
13
404109100
Gicleur Ralenti*jet-pilot 40
14
404103300
Палец крепления рычага
15
404107600
Levier Flotteur*lever-float 550f Suv
15
404105000
Levier Flotteur*lever-float 600 Suv
16
404107100
Flotte *float 550f Suv
16
404105400
Flotte *float 600 Suv
17
404107300
Joint Torique *o-ring 550f Suv
17
404101500
Rondelle *washer 600 Suv
18
404107400
Vis Bouchon *screw-drain Plug 550f Suv
18
404105600
Vis Bouchon *screw-drain Plug 600 Suv
19
404102300
Screw-air 550f Suv
19
404149000
Vis Air *screw-air 600 Suv
20
404101800
Ressort *spring 550f Suv
20
404139800
Ressort *spring 600 Suv
21
404101700
Пружина
22
404102800
Vis Ajustement*screw-idle Speed
23
404156600
Крышка
24
404101600
Rondelle Siege *washer-seat
25
404147500
Pointeau Vs 1.2*valve Needle 550f Suv
25
404147400
Pointeau Vs 1.5*valve Needle 600 Suv
26
404105500
Vis Guide *screw-guide
27
404119000
Gicleur Mj 190 *jet-main 190 550f Suv
27
404101400
Gicleur Mj 330 *jet-main 330 600 Suv
28
404103000
Plaque *plate
29
404102000
Screw-w/lock *screw-w/lockwasher
30
404160100
Tuyau Aeration *tube-air Vent
31
404127600
Raccord *nipple 550f Suv
31
404153400
Raccord *nipple 600 Suv
32
404127400
Пружина
33
404161100
Guide *guide Holder
34
404160400
Plongeur Ass. *plunger-assy
35
404105800
Крышка
36
404112000
Комплект инструментов
