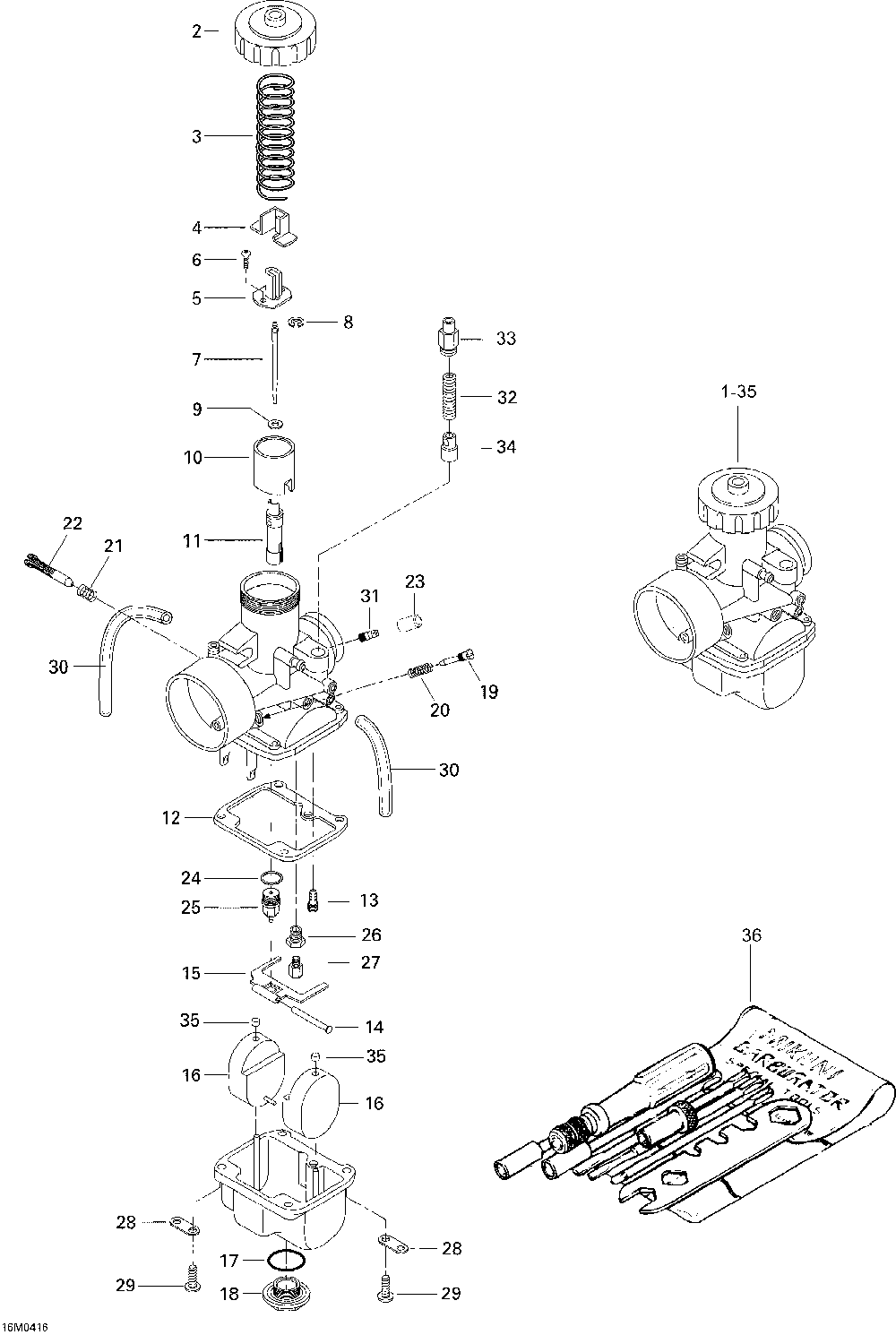

Карбюратор

Ski-Doo (Bombardier) Skandic 600 WTLC

Карбюратор

#

oem код

название

цена

1

Carb.vm-34 *carb-vm-34 Wt, Swt Includes Items 1 To 34

Carb.vm-34 *carb-vm-34 Wt, Swt Includes Items 1 To 34

1

Carb.vm-38 *carb-vm-38 Wtlc Includes Item 1 To 34

Carb.vm-38 *carb-vm-38 Wtlc Includes Item 1 To 34

2

Couvercle Carb.*top-mix.chamb. Wt, Swt

Couvercle Carb.*top-mix.chamb. Wt, Swt

2

Couvercle Carb.*top-mix.chamb. Wtlc

Couvercle Carb.*top-mix.chamb. Wtlc

3

Пружина

Пружина

4

Крышка

Крышка

5

Connecteur *connector

Connecteur *connector

6

Vis W.rondelle*screw-with Washer

Vis W.rondelle*screw-with Washer

7

Aiguille 6dh04 *needle Jet Wt, Swt

Aiguille 6dh04 *needle Jet Wt, Swt

7

Aiguille *needle Wtlc

Aiguille *needle Wtlc

8

Rondelle E *ring-e

Rondelle E *ring-e

9

Joint Tampon *packing

Joint Tampon *packing

10

Tiroir Acc.2.5 *piston-val.2.5

Tiroir Acc.2.5 *piston-val.2.5

11

Gicleur Aiguil.*jet Needle Wt, Swt

Gicleur Aiguil.*jet Needle Wt, Swt

11

Gicleur Aiguil.*jet Needle Wtlc

Gicleur Aiguil.*jet Needle Wtlc

12

Joint *gasket Wt, Swt

Joint *gasket Wt, Swt

12

Joint *gasket Wtlc

Joint *gasket Wtlc

13

Gicleur Ralenti*jet-pilot 40

Gicleur Ralenti*jet-pilot 40

14

Палец крепления рычага

Палец крепления рычага

15

Levier Flotteur*lever-float Wt, Swt

Levier Flotteur*lever-float Wt, Swt

15

Levier Flotteur*lever-float Wtlc

Levier Flotteur*lever-float Wtlc

16

Flotte *float Wt, Swt

Flotte *float Wt, Swt

16

Flotte *float Wtlc

Flotte *float Wtlc

17

Joint Torique *o-ring Wt, Swt

Joint Torique *o-ring Wt, Swt

17

Rondelle *washer Wtlc

Rondelle *washer Wtlc

18

Vis Bouchon *screw-drain Plug Wt, Swt

Vis Bouchon *screw-drain Plug Wt, Swt

18

Vis Bouchon *screw-drain Plug Wtlc

Vis Bouchon *screw-drain Plug Wtlc

19

Screw-air Wt, Swt

Screw-air Wt, Swt

19

Vis Air *screw-air Wtlc

Vis Air *screw-air Wtlc

20

Ressort *spring Wt, Swt

Ressort *spring Wt, Swt

20

Ressort *spring Wtlc

Ressort *spring Wtlc

21

Пружина

Пружина

22

Vis Ajustement*screw-idle Speed

Vis Ajustement*screw-idle Speed

23

Крышка

Крышка

24

Rondelle Siege *washer-seat

Rondelle Siege *washer-seat

25

Pointeau Vs 1.2*valve Needle Wt, Swt

Pointeau Vs 1.2*valve Needle Wt, Swt

25

Pointeau Vs 1.5*valve Needle Wtlc

Pointeau Vs 1.5*valve Needle Wtlc

26

Vis Guide *screw-guide

Vis Guide *screw-guide

27

Gicleur Mj 190 *jet-main 190 Wt, Swt

Gicleur Mj 190 *jet-main 190 Wt, Swt

27

Gicleur Mj 330 *jet-main 330 Wtlc

Gicleur Mj 330 *jet-main 330 Wtlc

28

Plaque *plate

Plaque *plate

29

Screw-w/lock *screw-w/lockwasher

Screw-w/lock *screw-w/lockwasher

30

Tuyau Aeration *tube-air Vent

Tuyau Aeration *tube-air Vent

31

Raccord *nipple Wt, Swt

Raccord *nipple Wt, Swt

31

Raccord *nipple Wtlc

Raccord *nipple Wtlc

32

Пружина

Пружина

33

Guide *guide Holder

Guide *guide Holder

34

Plongeur Ass. *plunger-assy

Plongeur Ass. *plunger-assy

35

Крышка

Крышка

36

Комплект инструментов

Комплект инструментов
