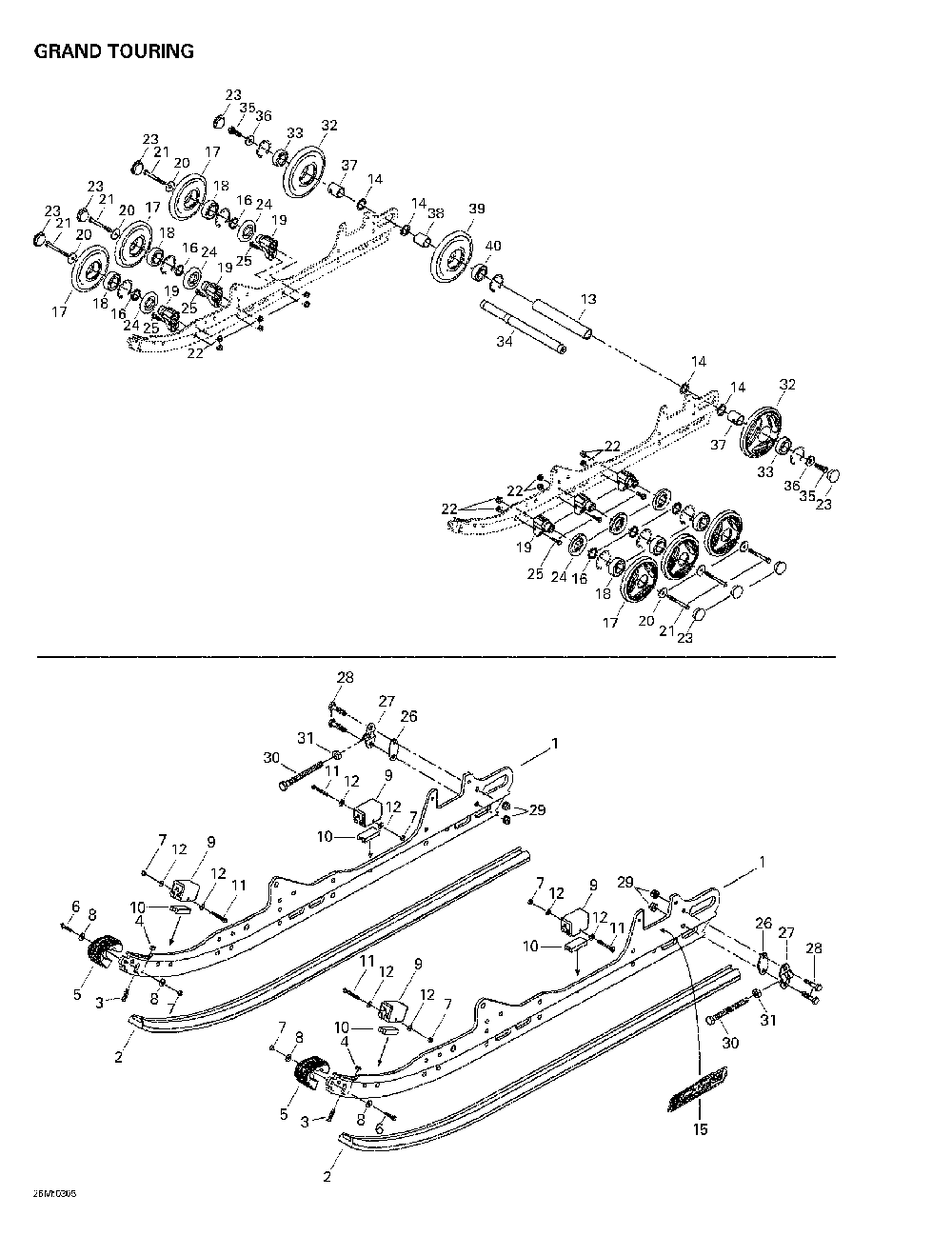

Задняя подвеска (grand touring)

Ski-Doo (Bombardier) Grand Touring SE 800 SDI
Ski-Doo (Bombardier)
#oem кодцена
1
503190266
Rail Usine *runner-mach Grand Touring Se 800 Sdi.
2
503190257
Glissiere Noir 136" *shoe-runner Black Grand Touring Se 800 Sdi.
3
208562560
Screw-ctsk.ov.hd.ph.din.966a-a2 Grand Touring Se 800 Sdi.
4
232561414
Nut-stop Elastic Din.985 Grand Touring Se 800 Sdi.
5
572075400
Protecteur Rail*prot-runner Grand Touring Se 800 Sdi.
6
207152544
Screw-hex.cap Din.933 Grand Touring Se 800 Sdi.
7
232551414
Nut-stop Elastic Din.985 Grand Touring Se 800 Sdi.
8
391301600
Rondelle *washer Grand Touring Se 800 Sdi.
9
503190905
Butee Caout As *stopper-rub As Grand Touring Se 800 Sdi.
10
572084800
Renfort Butee *reinf.-stopper Grand Touring Se 800 Sdi.
11
207054044
Screw-hex.cap Din.931 Grand Touring Se 800 Sdi.
12
391301700
Rondelle *washer Grand Touring Se 800 Sdi.
13
503183000
Entretoise *spacer Grand Touring Se 800 Sdi.
14
503180400
Rondelle *washer Grand Touring Se 800 Sdi.
15
516001248
Decal.susp. *decal-susp. Grand Touring Se 800 Sdi.
16
503173700
Rondelle *washer Grand Touring Se 800 Sdi.
17
503190796
Roue 139mm *wheel-139mm Includes 17 - 18. Grand Touring Se 800 Sdi.
18
293350055
Ball Bearing Grand Touring Se 800 Sdi.
19
503190389
Support Moulee *support-cast. Grand Touring Se 800 Sdi.
20
503183100
Rondelle *washer Grand Touring Se 800 Sdi.
21
207088544
Screw-hex.cap Din.931 Grand Touring Se 800 Sdi.
22
233281414
Nut-flange Elastic Din.6926 Grand Touring Se 800 Sdi.
23
570063600
Capuchon Roue *cap-wheel Grand Touring Se 800 Sdi.
24
572089000
Joint Labyrint.*seal-labyrinth Grand Touring Se 800 Sdi.
25
207182544
Screw-hex.cap Din.933 Grand Touring Se 800 Sdi.
26
503189160
Entretoise *spacer Grand Touring Se 800 Sdi.
27
503155300
Tendeur *tensioner Grand Touring Se 800 Sdi.
28
207063044
Screw-hex.cap Din.931 Grand Touring Se 800 Sdi.
29
233261414
Nut-flange Elastic Din.6926 Grand Touring Se 800 Sdi.
30
230100044
Screw-hex.cap Iso.4017 Grand Touring Se 800 Sdi.
31
233601416
Nut-locking Elastic Din.982 Grand Touring Se 800 Sdi.
32
503190801
Колесо 180
34
503167900
Essieu Arriere *axle-rear Grand Touring Se 800 Sdi.
35
250000019
Screw-hex.cap With Nylon Patch Grand Touring Se 800 Sdi.
36
503183300
Rondelle *washer Grand Touring Se 800 Sdi.
37
503189809
Entretoise *spacer Grand Touring Se 800 Sdi.
38
503182900
Entretoise *spacer Grand Touring Se 800 Sdi.
39
503190799
Roue 180 *wheel-180 Includes 39 - 40. Grand Touring Se 800 Sdi.
