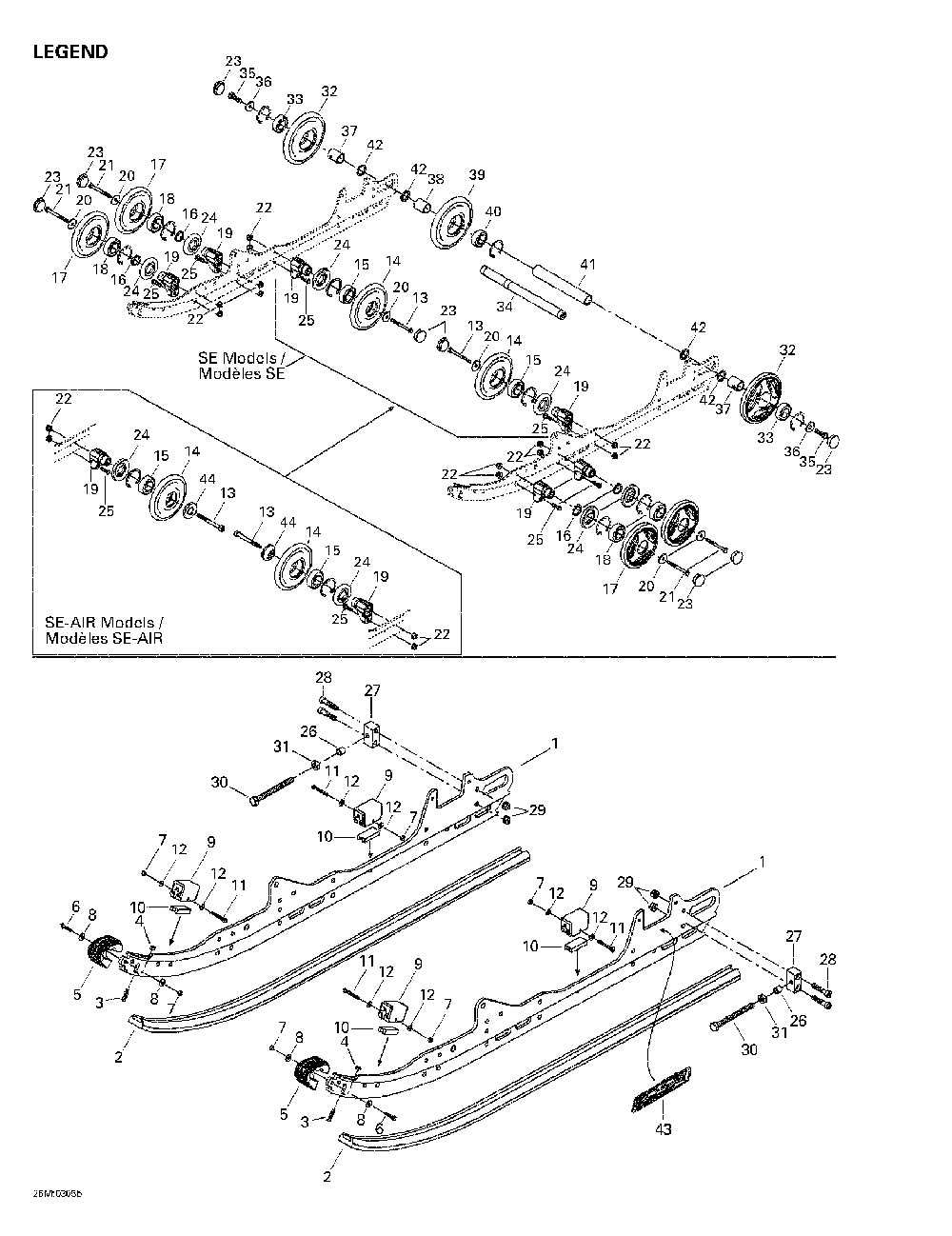

08- rear suspension (legend)

Ski-Doo (Bombardier) Grand Touring SE 800 SDI
Ski-Doo (Bombardier)
#oem кодцена
1
503190222
Rail Usine *runner-mach Legend Se 800 Sdi.
2
503190227
Glissiere 121" *shoe-runner Legend Se 800 Sdi.
3
208562560
Screw-ctsk.ov.hd.ph.din.966a-a2 Legend Se 800 Sdi.
4
232561414
Nut-stop Elastic Din.985 Legend Se 800 Sdi.
5
572075400
Protecteur Rail*prot-runner Legend Se 800 Sdi.
6
207152544
Screw-hex.cap Din.933 Legend Se 800 Sdi.
7
232551414
Nut-stop Elastic Din.985 Legend Se 800 Sdi.
8
391301600
Rondelle *washer Legend Se 800 Sdi.
9
503190905
Butee Caout As *stopper-rub As Legend Se 800 Sdi.
10
572084800
Renfort Butee *reinf.-stopper Legend Se 800 Sdi.
11
207054044
Screw-hex.cap Din.931 Legend Se 800 Sdi.
12
391301700
Rondelle *washer Legend Se 800 Sdi.
13
207088044
Screw-hex.cap Din.931 Legend Se 800 Sdi.
205087544
Screw-socket Hd.din.912 Legend Se 800 Sdi.
14
503191029
Roue 135 *wheel-135 Includes 14 - 15. Legend Se 800 Sdi.
15
293350055
Ball Bearing Legend Se 800 Sdi.
16
503173700
Rondelle *washer Legend Se 800 Sdi.
17
503190797
Roue 135 *wheel-135 Includes 17 - 18. Legend Se 800 Sdi.
19
503190389
Support Moulee *support-cast. Legend Se 800 Sdi.
20
503183100
Rondelle *washer Legend Se 800 Sdi.
21
207088544
Screw-hex.cap Din.931 Legend Se 800 Sdi.
22
233281414
Nut-flange Elastic Din.6926 Legend Se 800 Sdi.
23
570063600
Capuchon Roue *cap-wheel Legend Se 800 Sdi.
24
572089000
Joint Labyrint.*seal-labyrinth Legend Se 800 Sdi.
25
207182544
Screw-hex.cap Din.933 Legend Se 800 Sdi.
26
503168500
Entretoise *spacer Legend Se 800 Sdi.
27
503189211
Tendeur *tensioner Legend Se 800 Sdi.
28
205084044
Screw-socket Hd.din.912 Legend Se 800 Sdi.
30
230100044
Screw-hex.cap Iso.4017 Legend Se 800 Sdi.
31
232006414
Nut-hexagonal Din.934 Legend Se 800 Sdi.
32
503190801
Roue 180 *wheel 180 Includes 32 - 33. Legend Se 800 Sdi.
34
503167900
Essieu Arriere *axle-rear Legend Se 800 Sdi.
35
250000019
Screw-hex.cap With Nylon Patch Legend Se 800 Sdi.
36
503183300
Rondelle *washer Legend Se 800 Sdi.
37
503189809
Entretoise *spacer Legend Se 800 Sdi.
38
503182900
Entretoise *spacer Legend Se 800 Sdi.
39
503190799
Roue 180 *wheel-180 Includes 39 - 40. Legend Se 800 Sdi.
41
503183000
Entretoise *spacer Legend Se 800 Sdi.
42
503180400
Rondelle *washer Legend Se 800 Sdi.
43
516001248
Decal.susp. *decal-susp. Legend Se 800 Sdi.
44
503190163
Capuchon *cap-holder Legend Se 800 Sdi.
