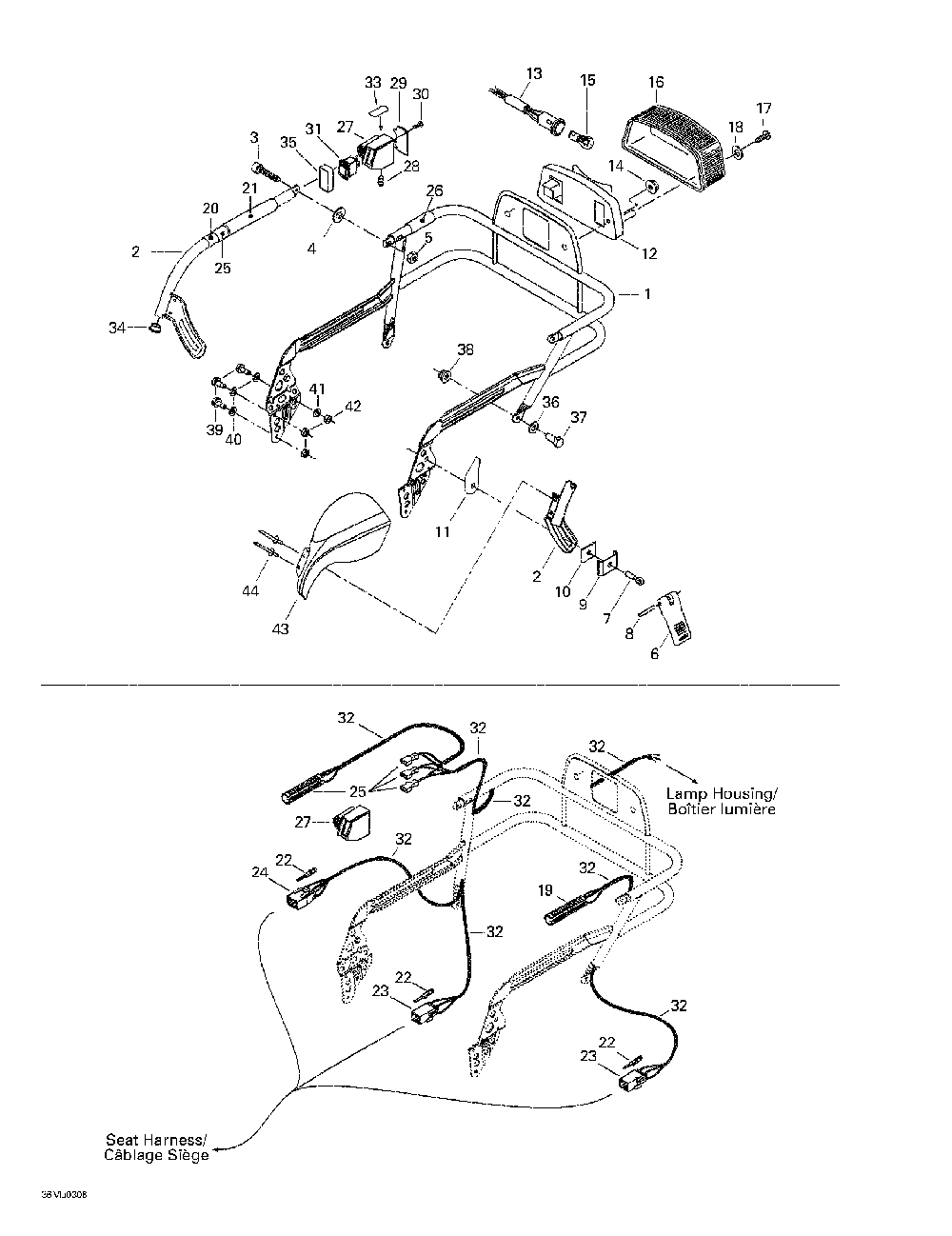

09- luggage rack (grand touring v-1000)

Ski-Doo (Bombardier) Grand Touring V-1000
Ski-Doo (Bombardier)
#oem кодцена
1
511000124
Porte-bagage P.*rack-paint Grand Touring V-1000.
2
511000012
Bras Droit Pei.*arm-rh.paint Grand Touring V-1000.
517300900
Bras Gauche Pei*arm-lh Paint Grand Touring V-1000.
3
205061644
Screw-socket Hd.din.912 Grand Touring V-1000.
4
234062100
Washer-flat Plastic Din.9021b Grand Touring V-1000.
5
232561414
Nut-stop Elastic Din.985 Legend V-1000. .
6
572038200
Levier Blocage *lever-lock Grand Touring V-1000.
7
517250100
Vis A Oeillet *eye-bolt Grand Touring V-1000.
8
414821400
Tige *pin Grand Touring V-1000.
9
511000226
Guide *guide Grand Touring V-1000.
10
570063800
Entretoise *spacer Grand Touring V-1000.
11
572088900
Entretoise *spacer Grand Touring V-1000.
12
515175397
Housing - Tail Lamp Grand Touring V-1000.
13
511000224
Raccord *socket Grand Touring V-1000.
14
233251414
Nut-flange Elastic Din.6926 Legend V-1000. .
15
520000758
Ampoule *bulb Grand Touring V-1000.
16
414513700
Lens 21/68 Grand Touring V-1000.
17
209632540
Screw-tapp.pan.hd.ph.din.7981c Grand Touring V-1000.
18
414516400
Washer Grand Touring V-1000.
19
515175710
Element Chauff.*heated Film Grand Touring V-1000.
20
414988700
Pare Chaleur *heat Shield Grand Touring V-1000.
21
415050200
Gaine Poignee *grip-handle Grand Touring V-1000.
415050300
Gaine Poignee *grip-handle Grand Touring V-1000.
22
515175232
Cosse Male *terminal-male Grand Touring V-1000.
23
515175494
Logement Male *housing-male Grand Touring V-1000.
24
515175846
Logement *housing Grand Touring V-1000.
26
415050400
Gaine Poignee *grip-handle Grand Touring V-1000.
27
572089200
Logement Inter.*housing-switch Grand Touring V-1000.
28
206580890
Screw-set Socket Din.916 Grand Touring V-1000.
29
572089300
Plaque *plate Grand Touring V-1000.
30
250000022
Screw-thread Cut.ph.pan Type25 Grand Touring V-1000.
31
511000001
Interrupt.basc.*switch-rocker Grand Touring V-1000.
32
515175332
Gaine Low Temp.vinyl Grand Touring V-1000.
33
418001800
Decal.poig.chau*decal-heatgrip Grand Touring V-1000.
34
572110800
Bouchon Noir *cap-black Grand Touring V-1000.
35
511000002
Protect.interr.*protector-switch Grand Touring V-1000.
36
234081410
Washer-flat Din.125a Grand Touring V-1000.
37
207182044
Screw-hex.cap Din.933 Grand Touring V-1000.
38
233281414
Nut-flange Elastic Din.6926 Legend V-1000. .
39
210261680
Screw-forming Hex.hd.fl.gm6174m Grand Touring V-1000.
40
234161601
Washer-lock Helical Din.127b-a2 Grand Touring V-1000.
41
391302100
Washer-flat Yic Grand Touring V-1000.
43
572089400
Protecteur *rh.protector Grand Touring V-1000.
572089500
Protecteur *lh.protector Grand Touring V-1000.
44
293150108
Rivet-pop 3/16 *pop Rivet 3/16 Grand Touring V-1000.
