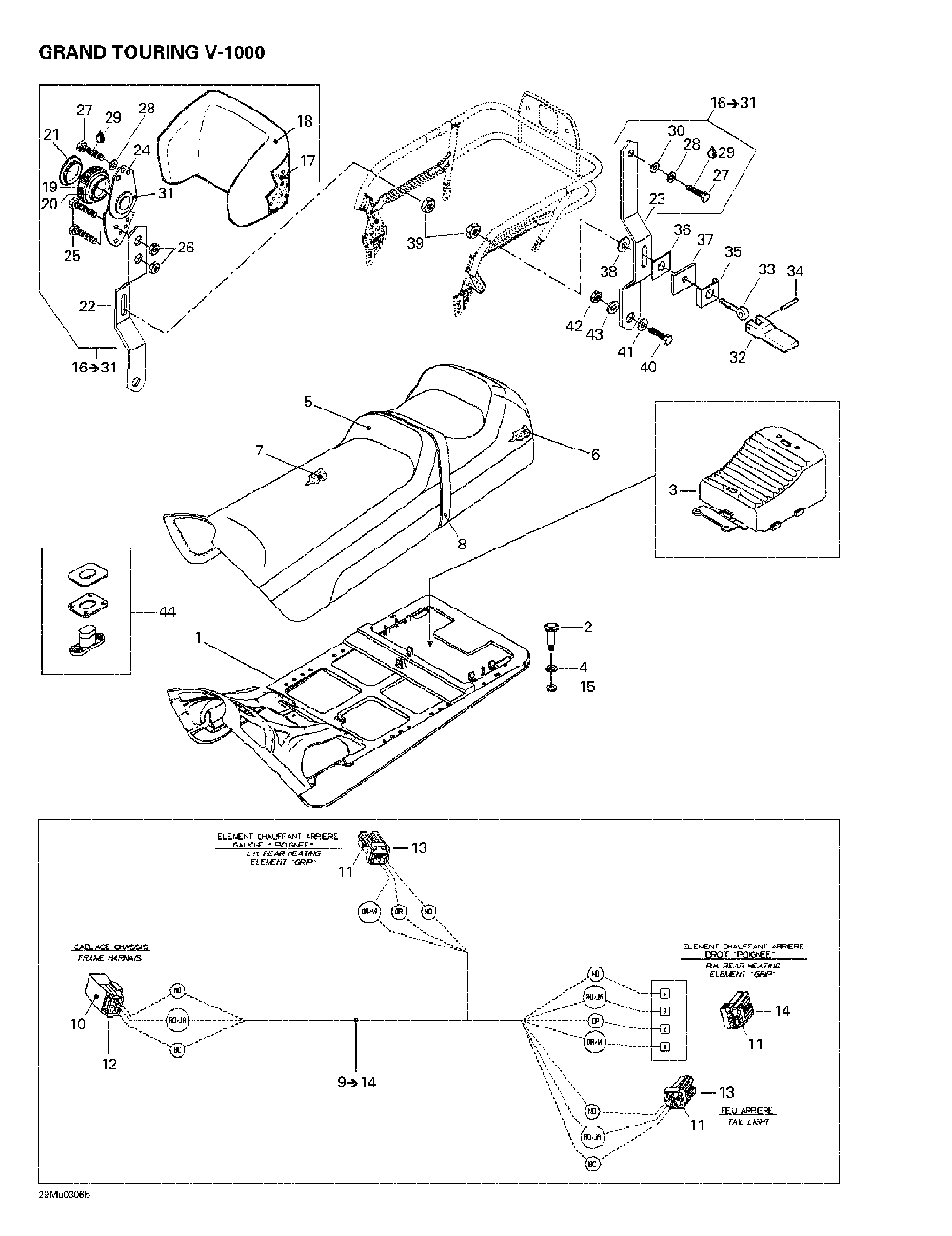

09- seat, backrest (grand touring v-1000)

Ski-Doo (Bombardier) Grand Touring V-1000
Ski-Doo (Bombardier)
#oem кодцена
1
510003739
Base De Siege *base-seat Grand Touring V-1000.
2
732601221
Bolt-tee Grand Touring V-1000.
3
510003751
Coffre *box Grand Touring V-1000.
4
732610072
Ecrou Pression *push Nut Grand Touring V-1000.
5
510004086
Housse De Siege*cover-seat Grand Touring V-1000.
6
510003741
Mousse De Siege*foam-seat Grand Touring V-1000.
7
510003752
Mousse De Siege*foam-seat Grand Touring V-1000.
8
510003753
Courroie Siege *belt-seat Grand Touring V-1000.
10
515175232
Cosse Male *terminal-male Grand Touring V-1000.
11
515175231
Cosse Femelle *terminal-female Grand Touring V-1000.
12
515175494
Logement Male *housing-male Grand Touring V-1000.
13
515175495
Logement Femel.*housing-female Grand Touring V-1000.
15
233261414
Nut-flange Elastic Din.6926 Grand Touring V-1000.
16
510004093
Dossier Ass. *backrest-assy. Includes 16 - 31. Grand Touring V-1000.
17
414821200
Mousse De Doss.*foam-backrest Grand Touring V-1000.
18
510004094
Housse Dossier *cover-backrest Grand Touring V-1000.
19
414820900
Manette Bascul.*titler-handle Grand Touring V-1000.
20
415015500
Languette *strip Grand Touring V-1000.
21
414821000
Capuchon *cap Grand Touring V-1000.
22
517296400
Bras Dr.emballe*arm-rh Packed Grand Touring V-1000.
23
517296500
Bras Ga.emballe*arm-lh Packed Grand Touring V-1000.
24
414813300
Basculeur *recliner Grand Touring V-1000.
25
207182544
Screw-hex.cap Din.933 Grand Touring V-1000.
26
232581414
Nut-stop Elastic Din.985 Grand Touring V-1000.
27
207182044
Screw-hex.cap Din.933 Grand Touring V-1000.
28
234181401
Washer-lock Din.127b Grand Touring V-1000.
29
293800060
Loctite 243 *loctite-243 Grand Touring V-1000.
30
224081201
Washer-flat Grand Touring V-1000.
31
517250500
Capuchon *cap Grand Touring V-1000.
32
572038200
Levier Blocage *lever-lock Grand Touring V-1000.
33
517250100
Vis A Oeillet *eye-bolt Grand Touring V-1000.
34
414821400
Tige *pin Grand Touring V-1000.
35
517257300
Guide *guide Grand Touring V-1000.
36
517251300
Cale *spacer Grand Touring V-1000.
37
570027400
Cale Caoutchouc*shim-rubber Grand Touring V-1000.
38
414819500
Rondelle *washer Grand Touring V-1000.
39
517250000
Ecrou *nut Grand Touring V-1000.
40
207182584
Screw-hex.cap Din.933 Gm6174m Grand Touring V-1000.
41
234081670
Washer-flat Din.125a-a2 Grand Touring V-1000.
43
414819600
Rondelle *washer Grand Touring V-1000.
44
414728000
Boucle De Siege*buckle-seat Grand Touring V-1000.
