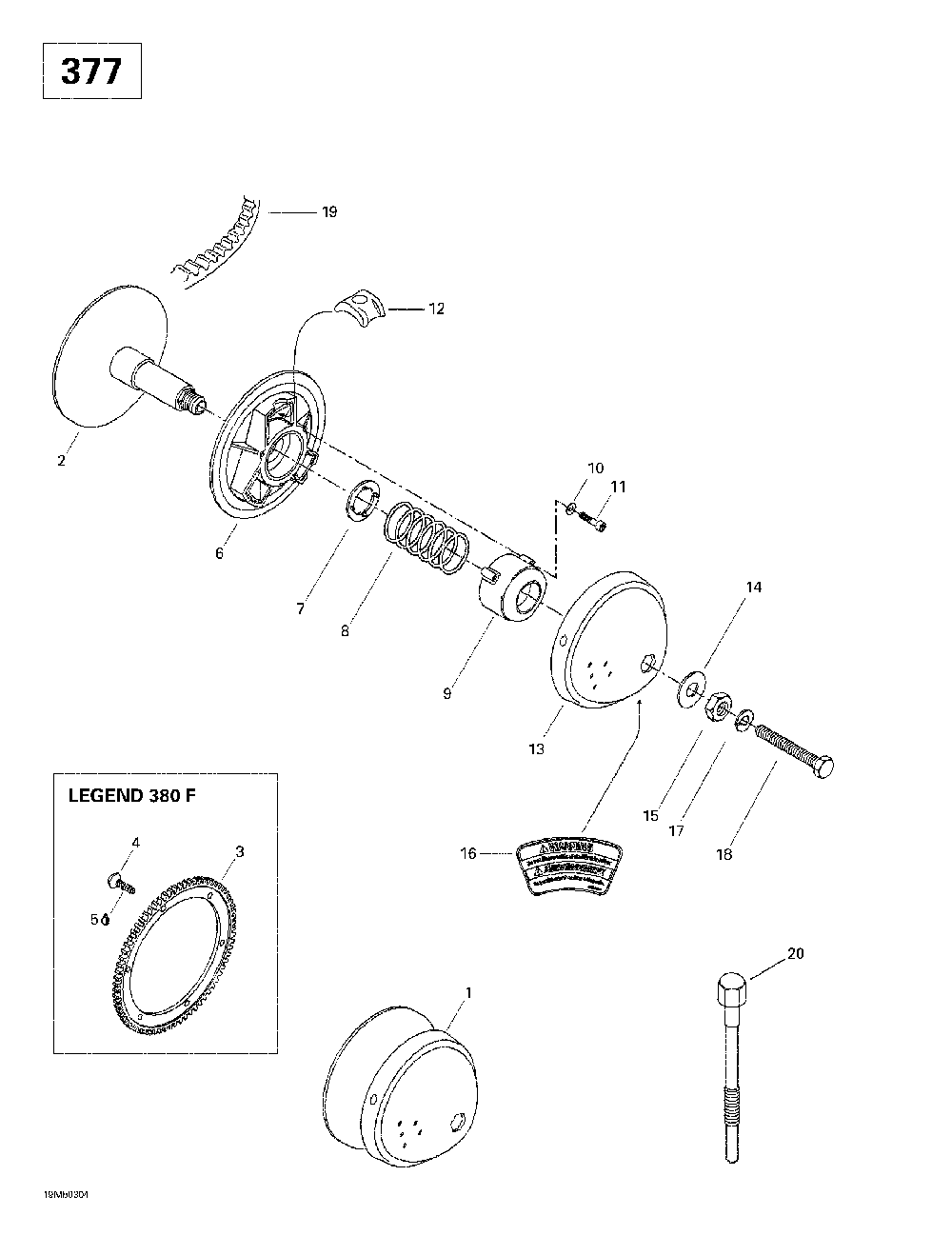

05- drive pulley (377)

Ski-Doo (Bombardier) Legend 380F/550F
Ski-Doo (Bombardier)
#oem кодцена
2
417126690
Flasque Int.fix*flange-inner F Mx Z 380 F. Legend 380 F.
3
417300305
Cour.lancement *gear-ring Legend 380 F.
4
236281684
Screw-forming Bn.hd.torx Legend 380 F.
5
293800005
Loctite 271 *loctite-271 Legend 380 F.
6
417126692
Flasque Coul. *flange-sliding Mx Z 380 F. Legend 380 F.
7
417126694
Siege Ressort *spring Seat Mx Z 380 F. Legend 380 F.
8
417126621
Ressort Embrai.*spring Clutch Mx Z 380 F. Legend 380 F.
9
417126622
Couv.ressort *cover-spring Mx Z 380 F. Legend 380 F.
10
420245370
Rondelle *washer Mx Z 380 F. Legend 380 F.
11
205064086
Screw-socket Hd.din.912 Gm6174m Mx Z 380 F. Legend 380 F.
12
417126623
Bloc *unit Mx Z 380 F. Legend 380 F.
13
417126696
Capuchon *cap Mx Z 380 F. Legend 380 F.
14
417122400
Rondelle *washer Mx Z 380 F. Legend 380 F.
15
417118300
Ecrou *nut Mx Z 380 F. Legend 380 F.
16
516001247
Etiquette Secur*security-label Mx Z 380 F. Legend 380 F.
17
392002800
Washer-lock Helical Spring Mx Z 380 F. Legend 380 F.
18
417113800
Boulon *bolt-pulley Drive Mx Z 380 F. Legend 380 F.
19
415060600
Courroie *belt-drive Mx Z 380 F. Legend 380 F.
20
529022400
Extrac.poulie *puller-drive Mx Z 380 F. Legend 380 F.
