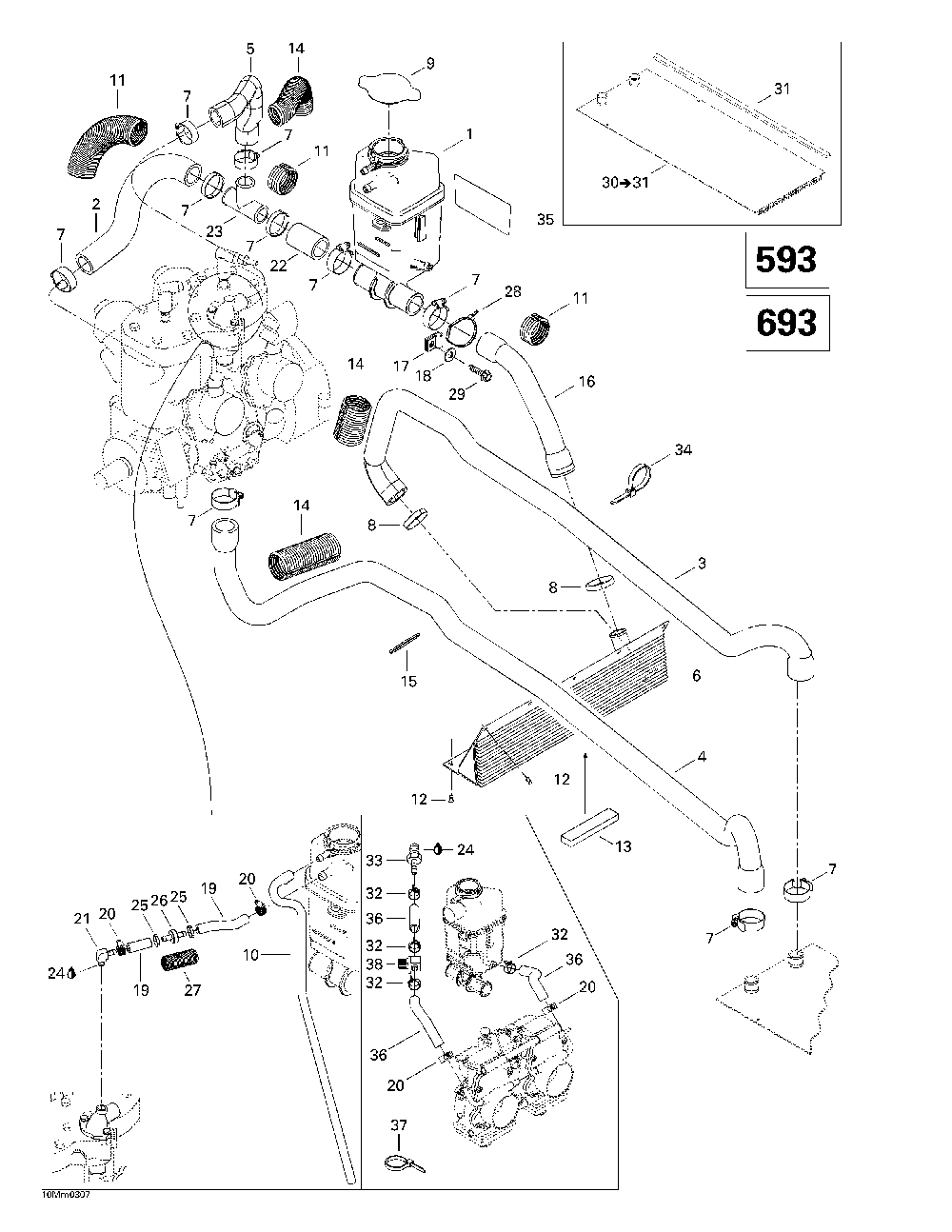

Система охлаждения (593)

Ski-Doo (Bombardier) Legend 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
509000167
Res.antigel *tank-coolant Legend 600. Legend 700.
2
509000141
Boyau Entre Mot*hose-inlet Eng Legend 600. Legend 700.
3
509000003
Boyau Inter Rad*hose-radiator Legend 600. Legend 700.
4
509000145
Boyau Sortie .*hose-outer Legend 600. Legend 700.
5
509000142
Boyau *hose Legend 600. Legend 700.
6
509000146
Radiateur Av.s.*rad.-front Weld. Legend 600. Legend 700.
7
408800400
Clamp-gear Legend 600. Legend 700.
8
509000045
Bride Serrage *clamp-gear Legend 600. Legend 700.
9
509000187
Bouchon Radiat.*pressure Cap Legend 600. Legend 700.
10
415110000
Boyau Polyure *hose-polyurethane Legend 600. Legend 700.
11
415084700
Gaine *protector Tube Legend 600. Legend 700.
12
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Legend 600. Legend 700.
13
293200003
Joint Etanche *seal-tray Legend 600. Legend 700.
14
409902200
Gaine 25mm *tubing-25mm Legend 600. Legend 700.
15
293750008
Tie Rap 350mm *tie-rap 350mm Legend 600. Legend 700.
16
509000144
Boyau Sort.rad.*hose-out.rad. Legend 600. Legend 700.
17
415052400
Attache Collier*open Clamp Legend 600. Legend 700.
18
391301600
Rondelle *washer Legend 600. Legend 700.
19
509000093
Boyau 8mm *hose-8mm Legend 600. Legend 700.
20
293650170
Bride Serrage *hose Clamp Legend 600. Legend 700.
21
293700020
Raccord Coude90*fitting-elbow Legend 600. Legend 700.
22
509000143
Boyau *hose Legend 600. Legend 700.
23
414619900
Raccord En T *fitting-t Legend 600. Legend 700.
24
293800018
Scellant Tuyau *sealant-pipe Legend 600. Legend 700.
25
293650053
Bride Serrage *clamp-oetiker Legend 600. Legend 700.
26
509000153
Soupape Retenue*valve-check Legend 600. Legend 700.
27
415080000
Gaine *protector Tube Legend 600. Legend 700.
28
509000165
Tie Rap *tie-rap Legend 600. Legend 700.
29
210252040
Screw-forming Hex.hd.fl.din.7500d Legend 600. Legend 700.
30
518322901
Radiateur Arr.s*rad.-rear Weld. Includes 30 - 31. Legend 600. Legend 700.
31
415012300
Protecteur *protector Legend 600. Legend 700.
32
414655700
Bride A Ressort*clamp-spring Legend 600. Legend 700.
33
293710082
Raccord Droit *fitting-straight Legend 600. Legend 700.
35
514053399
Pare Chaleur *heat Shield Legend 600. Legend 700.
37
293750002
Tie Rap 142mm *tie-rap 142mm Legend 600. Legend 700.
38
512059324
Soupape 5/16" *valve-5/16" Legend 600. Legend 700.
