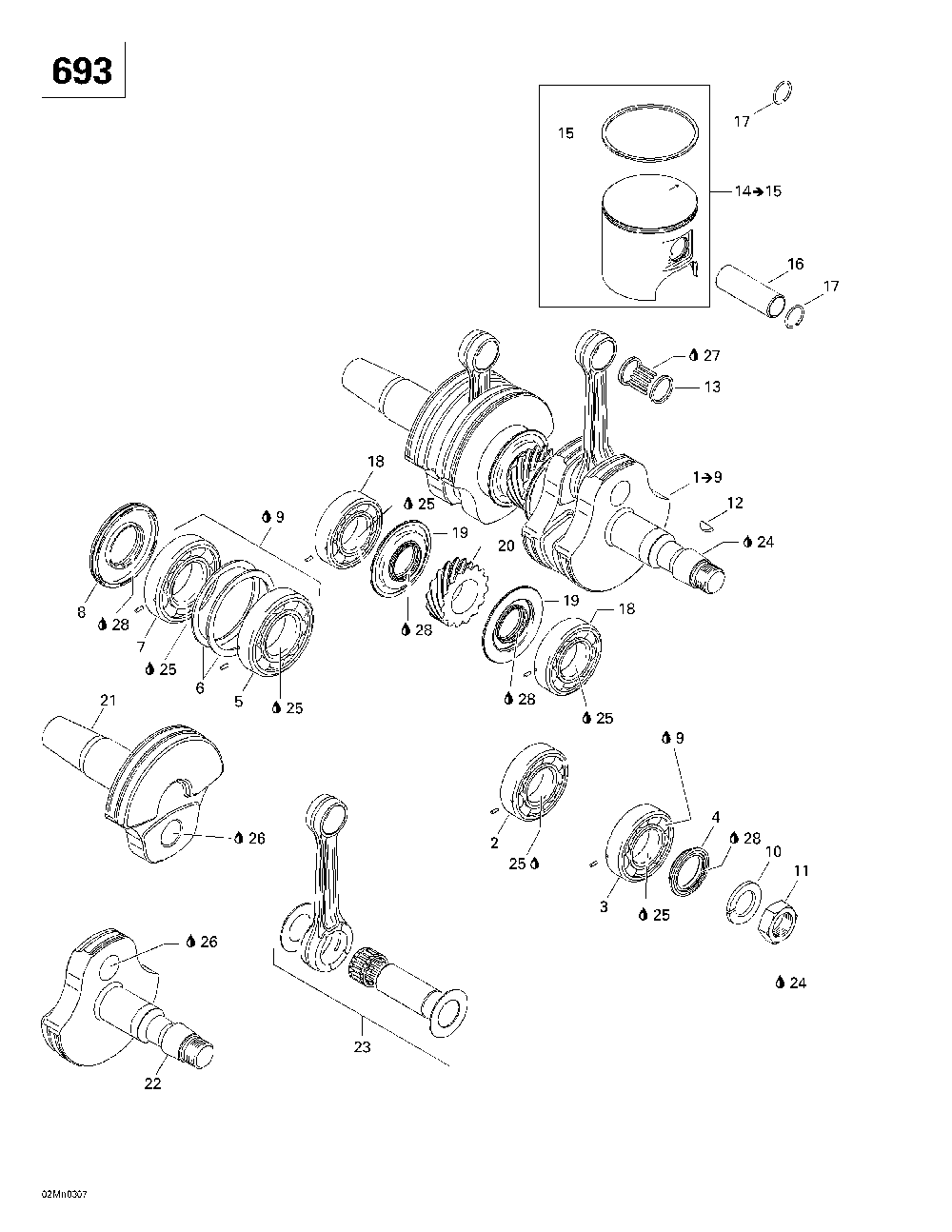

Коленчатый вал и поршни (693)

Ski-Doo (Bombardier) Legend 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
420889097
Vilebrequin *crankshaft Includes 1 - 8. Legend 700.
2
420832633
Roulement Bille*ball Bearing Legend 700.
3
420832575
Roulement Bille*ball Bearing Legend 700.
4
420931792
Anneau Etanche *seal-oil Legend 700.
5
420832608
Roulement Bille*ball Bearing Legend 700.
6
420926190
Rondelle *washer Legend 700.
7
420832600
Roulement Bille*ball Bearing Legend 700.
8
420931285
Anneau Etanche *seal-oil Legend 700.
9
293550021
Graisse Isoflex*grease-isoflex Legend 700.
10
420945759
Rondelle-frein *washer-lock 22 Legend 700.
11
420842234
Nut-hex.m22 X 1, 5 Legend 700.
12
420246015
Clavette *key-woodruff Legend 700.
13
420832428
Roul.aiguille *needle Bearing Legend 700.
14
420888298
Piston 77, 88 *piston-assy 77, 88 Includes 14 - 15. Legend 700.
15
420815226
Segment Semi-tr*ring-semi Trap Legend 700.
16
420916371
Axe De Piston *pin-gudgeon Legend 700.
17
420845106
Circlip Piston *circlip-piston Legend 700.
19
420931455
Anneau Etanche *seal-oil Legend 700.
20
420834355
Engrenage Cent.*gear-central Legend 700.
21
420818709
Vilebrequin Pto*crankshaft-pto Legend 700.
22
420818739
Vilebrequin Mag*crankshaft-mag Legend 700.
23
420889093
Ens.tige Rep. *kit-rod Repair Mag-side Legend 700.
24
293800060
Loctite 243 *loctite-243 Legend 700.
25
293800070
Loct.anti Grip.*loct-antiseize Legend 700.
26
413711400
Loctite 648 *loctite-648 Legend 700.
27
413707000
Dow Corning 111*dow Corning 111 Legend 700.
28
420899271
Graisse *grease Legend 700.
1
421000609
Vilebrequin *crankshaft 693/593ho Includes 1 - 8. Legend 700.
5
420832602
Roulement Billes*ball Bearing 6208 Legend 700.
13
420832445
Roul.aiguille *needle Bearing Legend 700.
