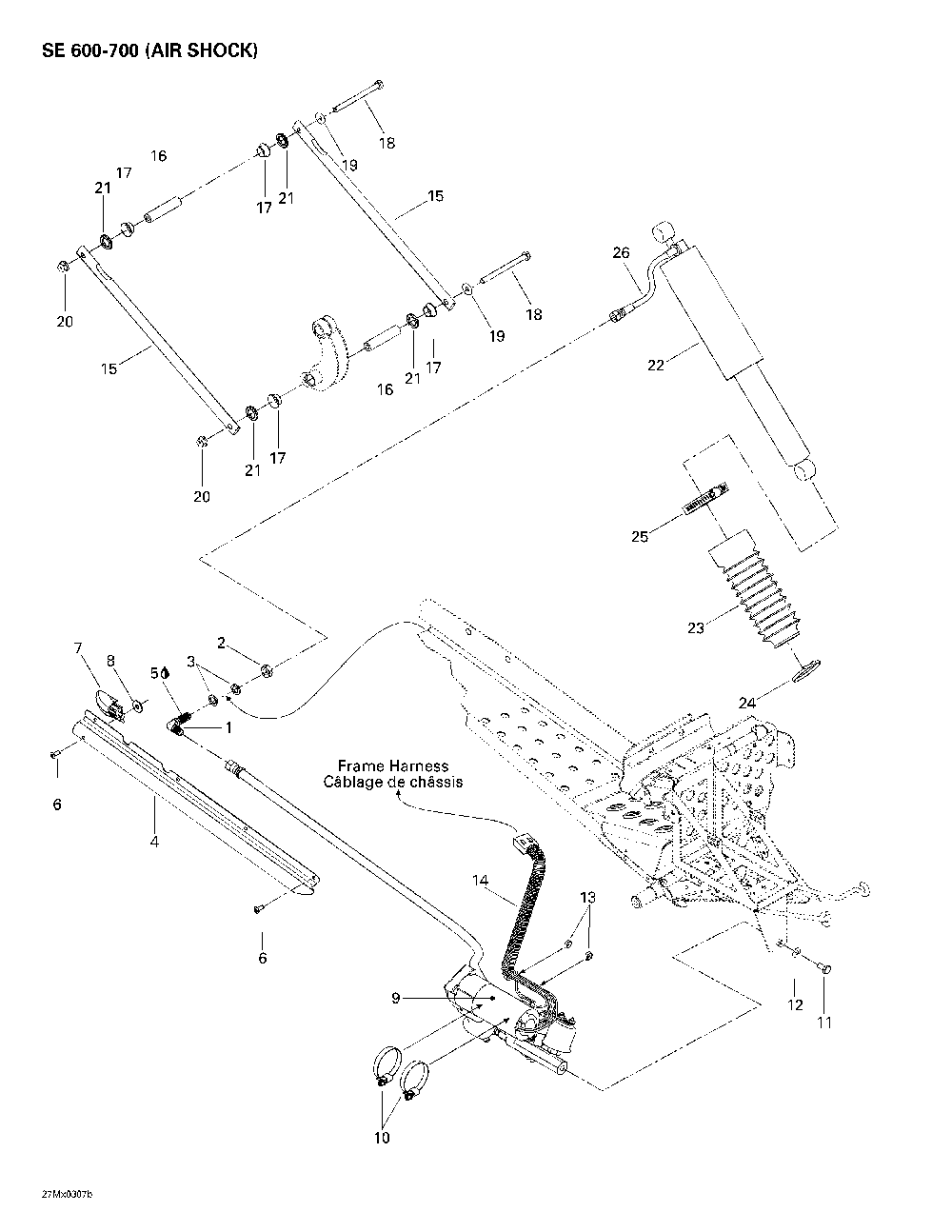

08- air shock and compressor (se)

Ski-Doo (Bombardier) Legend 500/600/700
Ski-Doo (Bombardier)
#oem кодцена
1
503189756
Raccord Pneumat*jonction-pneumatic Legend 600. Legend 700.
2
503189846
Ecrou Raccord *nut-junction Legend 600. Legend 700.
3
503189264
Rondelle *washer Legend 600. Legend 700.
4
503190170
Protecteur *protector Legend 600. Legend 700.
5
293800060
Loctite 243 *loctite-243 Legend 600. Legend 700.
6
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Legend 600. Legend 700.
7
520000272
Bouchon *cap Legend 600. Legend 700.
8
517124300
Rondelle *washer Legend 600. Legend 700.
9
503190171
Compresseur *compressor Legend 600. Legend 700.
11
207181644
Screw-hex.cap Din.933 Legend 600. Legend 700.
12
234081410
Washer-flat Din.125a Legend 600. Legend 700.
13
293750009
Tie Rap 173mm *tie-rap 173mm Legend 600. Legend 700.
14
409901800
Tubing - Insulating 13 Mm Legend 600. Legend 700.
15
503190200
Tige Accel. *ttrottle Rod Legend 600. Legend 700.
16
503190162
Axe Barre *rear Axle Legend 600. Legend 700.
17
506150200
Coussinet Pivot*swivel-bushing Legend 600. Legend 700.
18
230080044
Screw-hex.cap Din.931 Legend 600. Legend 700.
19
224081201
Washer-flat Legend 600. Legend 700.
20
233281414
Nut-flange Elastic Din.6926 Legend 600. Legend 700.
21
503190161
Entretoise *spacer Legend 600. Legend 700.
22
415128449
Amort.a Air *shock-air Legend 600. Legend 700.
23
503190258
Gaine *protector Tube Legend 600. Legend 700.
24
414115200
Tie-rap 180 Mm Legend 600. Legend 700.
26
503190154
Conduit Pneumat*pneumatic Line Legend 600. Legend 700.
