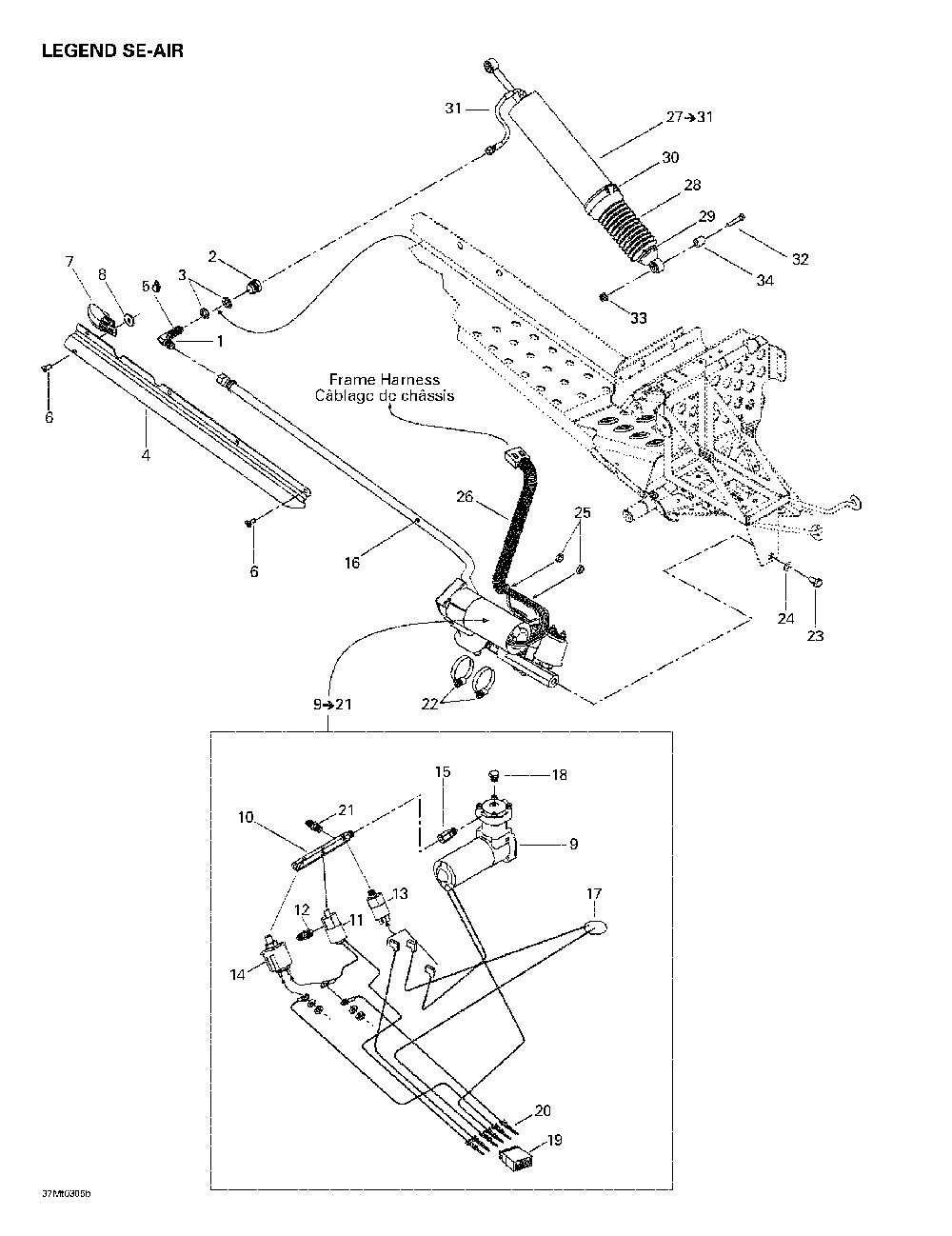

08- air shock and compressor, legend (se-air)

Ski-Doo (Bombardier) Legend SE 800 SDI
Ski-Doo (Bombardier)
#oem кодцена
1
503189756
Raccord Pneumat*jonction-pneumatic Legend Se 800 Sdi.
2
503189846
Ecrou Raccord *nut-junction Legend Se 800 Sdi.
3
503189264
Rondelle *washer Legend Se 800 Sdi.
4
503190170
Protecteur *protector Legend Se 800 Sdi.
5
293800060
Loctite 243 *loctite-243 Legend Se 800 Sdi.
6
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Legend Se 800 Sdi.
7
520000272
Bouchon *cap Legend Se 800 Sdi.
8
517124300
Rondelle *washer Legend Se 800 Sdi.
9
503190171
Compresseur *compressor Includes 9 - 21. Legend Se 800 Sdi.
9
503190032
Compresseur *comppressor Legend Se 800 Sdi.
10
503190030
Collecteur *manifold Legend Se 800 Sdi.
11
503189097
Solenoide *solenoid Legend Se 800 Sdi.
12
415099200
Regulateur Pres*reg-pression Legend Se 800 Sdi.
13
503189212
Soupape *valve Legend Se 800 Sdi.
14
415043600
Capteur Press. *sender-pressure Legend Se 800 Sdi.
15
503189762
Adapt.pneumat. *adaptor-pneumatic Legend Se 800 Sdi.
16
503190035
Boyau Pneumat. *hose-pneumat. Legend Se 800 Sdi.
17
415128577
Fusible Reinit.*fuse-resettable Legend Se 800 Sdi.
18
504151921
Plug 1/8-27 N.p.t. 3/4 Taper Legend Se 800 Sdi.
19
515175662
Log.pt Male .*housing-term.male Legend Se 800 Sdi.
20
515175232
Cosse Male *terminal-male Legend Se 800 Sdi.
21
414893900
Adaptateur *adpator Legend Se 800 Sdi.
23
207181644
Screw-hex.cap Din.933 Legend Se 800 Sdi.
24
234081410
Washer-flat Din.125a Legend Se 800 Sdi.
25
293750009
Tie Rap 173mm *tie-rap 173mm Legend Se 800 Sdi.
26
409901800
Tubing - Insulating 13 Mm Legend Se 800 Sdi.
27
415128449
Amort.a Air *shock-air Includes 27 - 31. Legend Se 800 Sdi.
28
503190258
Gaine *protector Tube Legend Se 800 Sdi.
29
414115200
Tie-rap 180 Mm Legend Se 800 Sdi.
31
503190154
Conduit Pneumat*pneumatic Line Legend Se 800 Sdi.
