Opt:Meter (DF30AT P03) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 30ATHL (2017)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2017
DF 30ATHL

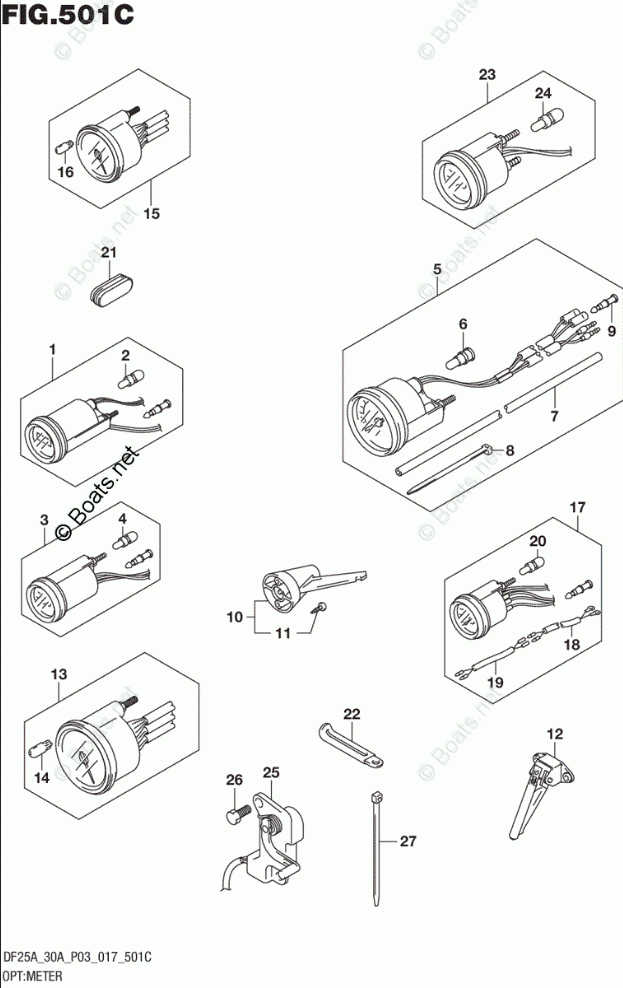

Opt:Meter (DF30AT P03)
Opt:Meter (DF30AT P03)

Opt:Meter (DF30AT P03)

Suzuki Marine DF 30ATHL

oem код

название

цена

1-1

34500-93J00

METER ASSY, HOUR *{BLACK}*

1-2

34500-93J11

METER ASSY, HOUR *{WHITE}*

09471-12103

BULB (12V,3W,T6.5)

3-1

34600-93J00

METER ASSY, VOLTAGE *{BLACK}*

3-2

34600-93J11

METER ASSY, VOLTAGE *{WHITE}*

09471-12103

BULB (12V,3W,T6.5)

5-4

34100-93J51

SPEEDOMETER ASSY *{MAX 45KNOTS WHITE}*

5-1

34100-93J20

SPEEDOMETER ASSY *{MAX 80KM/H BLACK}*

5-2

34100-93J31

SPEEDOMETER ASSY *{MAX 80KM/H WHITE}*

5-3

34100-93J40

SPEEDOMETER ASSY *{MAX 45KNOTS BLACK}*

BULB (12V3.4W,T10)

TUBE

CLAMP (L:145)

TERMINAL, RESIN

SENDER ASSY, SPEEDOMETER

03112-0630B

SCREW

34190-87D00

SENDER ASSY, SPEEDOMETER

13-1

34200-93J20

TACHOMETER ASSY *{BLACK}*

13-2

34200-93J32

TACHOMETER ASSY *{WHITE}*

09471-12028

BULB (12V3.4W,T10)

15-1

34200-93J00

TACHOMETER ASSY, WITH MONITOR *{BLACK}*

15-2

34200-93J12

TACHOMETER ASSY, WITH MONITOR *{WHITE}*

09471-12077

BULB (12V1.7W,T10,WB121)

17-1

34300-93J00

GAUGE ASSY, FUEL *{BLACK}*

17-2

34300-93J11

GAUGE ASSY, FUEL *{WHITE}*

LEAD, FUEL GAUGE

ADAPTER, FUEL GAUGE

BULB (12V,3W,T6.5)

PLUG, LOWER COVER

CLAMP, TRIM SENDER LEAD

23-1

34800-93J00

METER ASSY, TRIM *{BLACK}*

23-2

34800-93J11

METER ASSY, TRIM *{WHITE}*

BULB (12V1.7W,T6.5)

SENDER ASSY, TRIM

BOLT (6X16)

CLAMP (L:145)
