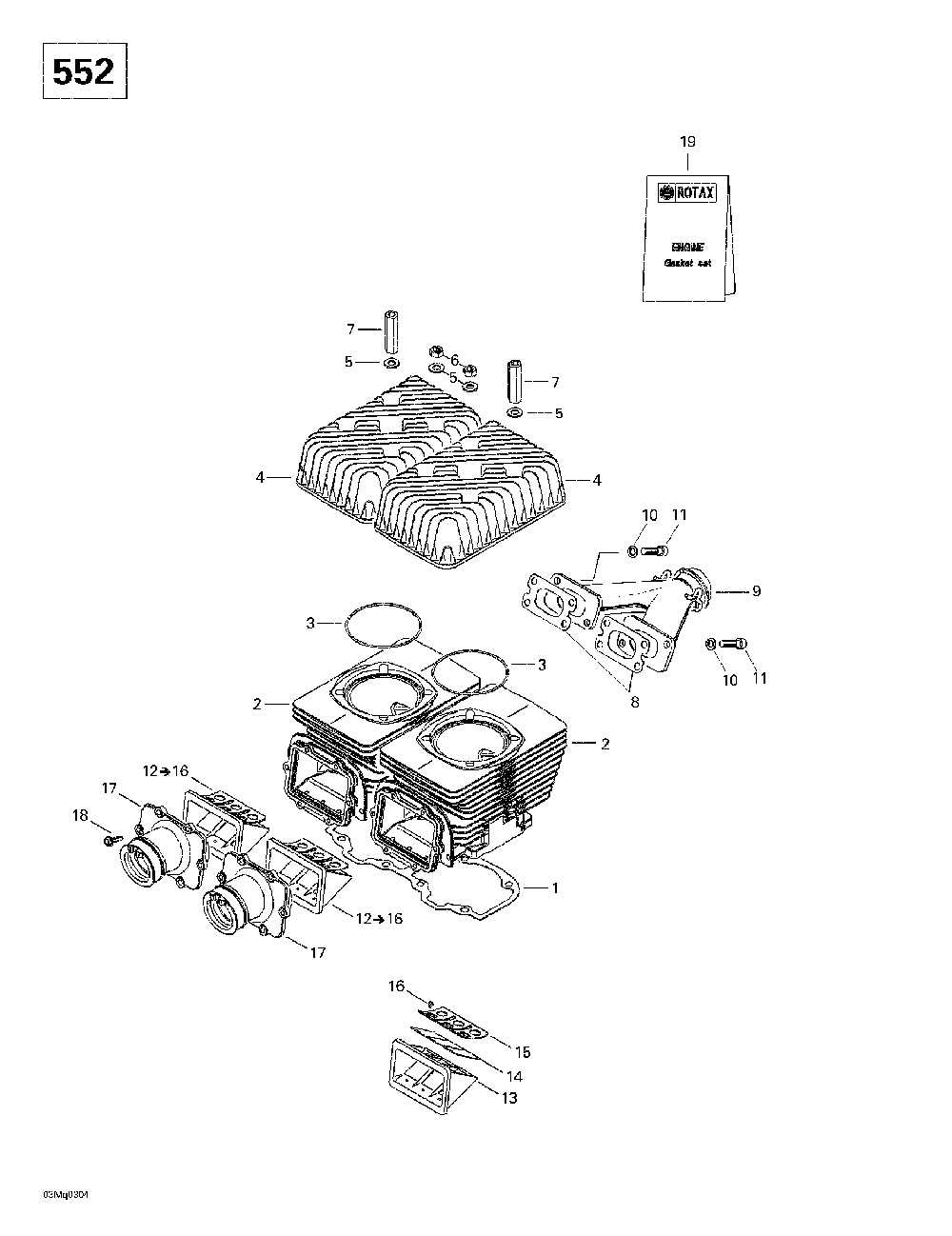

01- cylinder, exhaust manifold (552)

Ski-Doo (Bombardier) MX Z 380 F/550 F
Ski-Doo (Bombardier)
#oem кодцена
1
420950910
Gasket 0, 3 Mx Z 550 F. Legend 550 F.
420950911
Gasket 0, 4 Mx Z 550 F. Legend 550 F.
420950912
Gasket 0, 6 Mx Z 550 F. Legend 550 F.
2
420923974
Cylindre *cylinder Mx Z 550 F. Legend 550 F.
3
293300026
Joint Torique *o-ring Mx Z 550 F. Legend 550 F.
4
420923595
Tete-cylindre *head-cylinder Mx Z 550 F. Legend 550 F.
5
420250311
Washer-flat 8, 4 Mx Z 550 F. Legend 550 F.
6
232081414
Nut-hexagonal Din.934 Mx Z 550 F. Legend 550 F.
7
420842203
Nut-distance M8 X 47 Mx Z 550 F. Legend 550 F.
8
420831849
Joint 1mm *gasket-1mm Mx Z 550 F. Legend 550 F.
9
420673065
Collect.echapp.*manifold-exh. Mx Z 550 F. Legend 550 F.
10
234181401
Washer-lock Din.127b Mx Z 550 F. Legend 550 F.
11
205083044
Screw-socket Hd.din.912 Mx Z 550 F. Legend 550 F.
12
420924519
Soupape Clapets*valve-reed Ass Includes 12 - 16. Mx Z 550 F. Legend 550 F.
14
420924532
Lame Pedale *reed-pedal Mx Z 550 F. Legend 550 F.
15
420924539
Arret Lame Ped.*stop-reed Ped. Mx Z 550 F. Legend 550 F.
16
420941215
Screw-oval Head M3x5 Mx Z 550 F. Legend 550 F.
17
420867100
Carburetor Socket Mx Z 550 F. Legend 550 F.
18
420941925
Screw-tapping M5 X 16 Mx Z 550 F. Legend 550 F.
19
420889911
Ens Joint Etan.*gasket Set Mx Z 550 F. Legend 550 F.
