Вариатор (593 HO) Запчасти для снегоходов Ski-Doo (Bombardier) MX Z 500/600/600 HO/700/800 (2003)

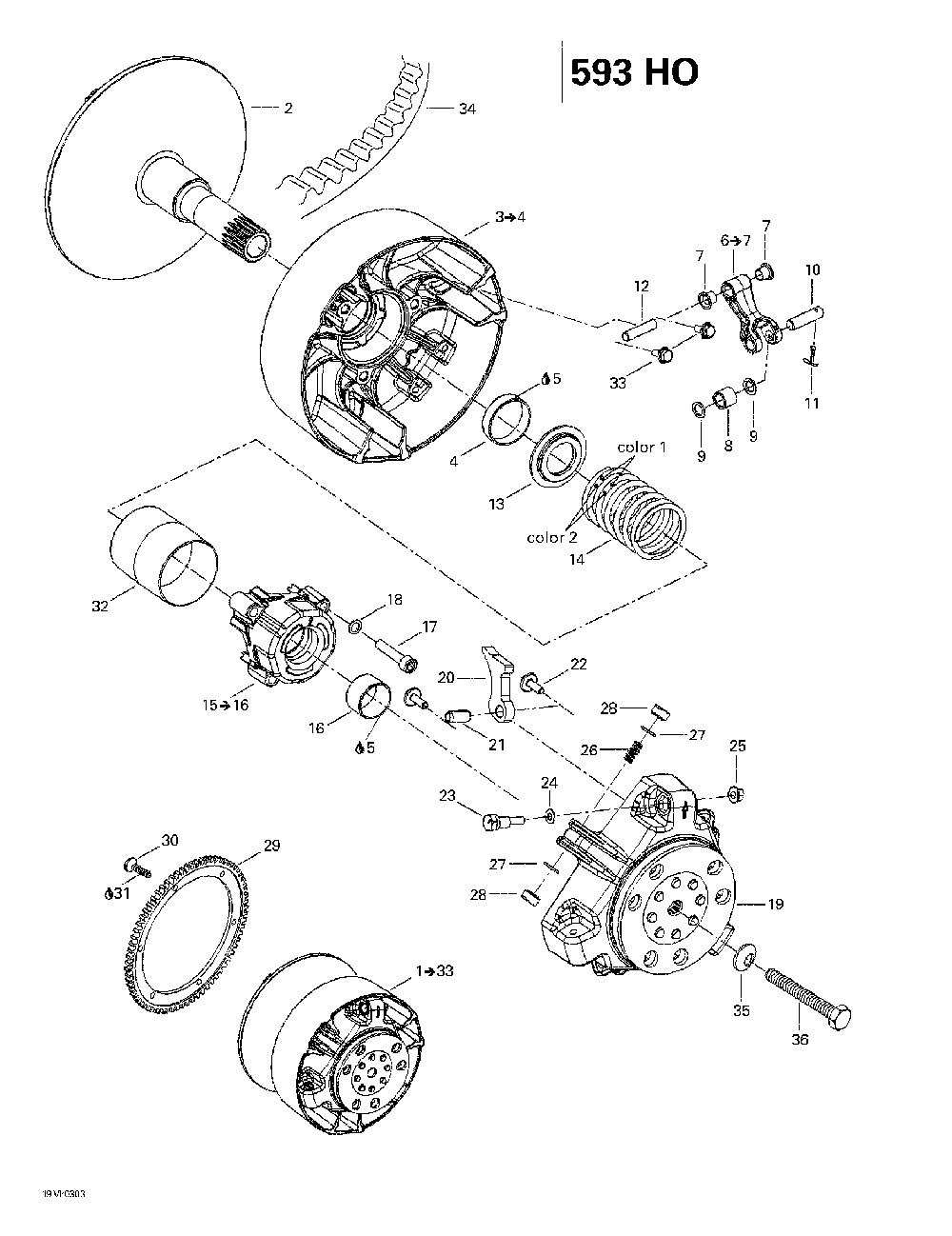

Вариатор (593 HO)

Ski-Doo (Bombardier) MX Z 500/600/600 HO/700/800

oem код

название

цена

417222937

Flasque Fixe As*flange-fixe Ass Mx Z 600.

417222181

Flasque Coul.as*flange-slid.assy Includes 3 - 4. Mx Z 600.

417222758

Douille *bushing Mx Z 600.

413703100

Loctite 609 *loctite-609 Mx Z 600.

417222671

Levier Ass. *lever-assy Includes 6 - 7. Mx Z 600.

417004305

Douille *bushing Mx Z 600.

417222947

Rouleau Ass. *roller-ass. Mx Z 600.

417004302

Rondelle Butee *washer-stopper Mx Z 600.

417004308

Goupille *pin Mx Z 600.

732958001

Goupille Fendue*pin-cotter Mx Z 600.

417009202

Axe De Levier *axle-lever Mx Z 600.

417222312

Siege Ressort *seat-spring Mx Z 600.

415034900

Ressort *spring Mx Z 600.

417007500

Couvercle *spring Cover Includes 15 - 16. Mx Z 600.

417009204

Douille *bushing Mx Z 600.

205084044

Screw-socket Hd.din.912 Mx Z 600.

250200009

Ribbed Lock Washer 8mm Bn791 Mx Z 600.

417222596

Rampe 410 *ramp-410 Mx Z 600.

250400009

Goupille Ress. *pin-rolled Mx Z 600.

250000059

Screw-hex.flange M6 X 18 Mx Z 600.

417005500

Vis Calibration*screw-calib. Mx Z 600.

417005600

Rondelle *washer Mx Z 600.

233061414

Nut-flange Hexagonal Din.6927 Mx Z 600.

417005700

Ressort *spring Mx Z 600.

732401030

Joint Torique *o-ring Mx Z 600.

417223021

Glissiere *shoe-slider Mx Z 600.

861791800

Ens, Couronne La*kit Ring Gear Rer 600 Ho Adrenaline Electric. Rer 600 Ho Renegade Electric Mx Z 600.

250000049

Screw-forming Bn.hd.torx Rer 600 Ho Adrenaline Electric. Rer 600 Ho Renegade Electric Mx Z 600.

293800005

Loctite 271 *loctite-271 Rer 600 Ho Adrenaline Electric. Rer 600 Ho Renegade Electric Mx Z 600.

417009205

Protecteur *guard Mx Z 600.

250000362

Screw Hexagonal*flange M6 X 12 Mx Z 600.

417300197

Courroie *belt-drive Mx Z 600.

250200006

Шайба пружинная

417120000

Болт

250000412

Serrated Hex. Flange Bolt S.grip M6x12 Mx Z 600.
