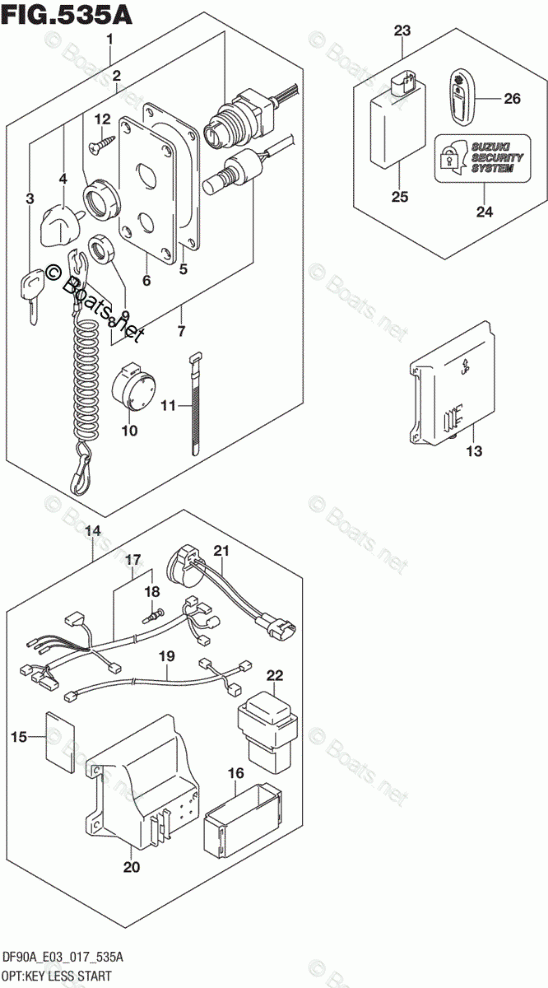

OPT:KEY LESS START

Suzuki Marine DF 90ATLW2
Suzuki Marine
#oem кодцена
1
37100-96L10
PANEL ASSY, MAIN SWITCH KLS
2
37110-96L10
SWITCH ASSY, MAIN
3-5
37141-99E40
KEY (935)
3-4
37141-99E30
KEY (934)
3-6
37141-99E50
KEY (936)
3-1
37141-99E00
KEY (931)
3-2
37141-99E10
KEY (932)
3-3
37141-99E20
KEY (933)
4
37143-96L00
KNOB, MAIN SWITCH
5
37114-96L10
SHEET, MAIN SWITCH PANEL
6
37139-96L10
PANEL, MAIN SWITCH
7
37820-93J04
SWITCH ASSY, EMERGENCY
8
37823-92E01
PLATE ASSY, EMERGENCY SW LOCK
9
37826-92J00
NUT
10
38500-93J90
BUZZER, WARNING
11
09407-08401
CLAMP (L:80)
12
03122-05165
SCREW
13
37173-96L00
HOLDER, KLS PARTS *{LARGE TYPE}*
14
37105-96L10
HARNESS SET, KLS CONTROLLER
15
32851-93J00
CUSHION, LEAD WIRE
16
32980-38F00
HOLDER, KLS CONT
17
36623-96L10
HARNESS ASSY, KLS CONT
18
36615-96300
TERMINAL, RESIN
19
36662-96L10
HARNESS ASSY, KLS CAN *{L:6500+2000}*
20
37173-96L10
HOLDER, KLS PARTS *{SMALL TYPE}*
21
38500-93J90
BUZZER ASSY, KLS
22
38860-96L00
RELAY ASSY, KLS
23-2
37170-96L03
CONTROLLER SET, KLS 433MHZ
23-1
37170-96L13
CONTROLLER SET, KLS 315MHZ
24
37117-96L00
DECAL, KLS
25-1
37171-96L12
CONTROLLER ASSY, KLS 315MHZ
25-2
37171-96L02
CONTROLLER ASSY, KLS 433MHZ
26-1
37172-96L10
REMOCON ASSY, KLS 315MHZ
26-2
37172-96L00
REMOCON ASSY, KLS 433MHZ
27
SPECIAL-NOTE
NOTE: USE FREQUENCY ASSIGNED ON YOUR MARKET. FOR DETAILES, PLEASE MAKE SURE OF SUZUKI DEALERS.
