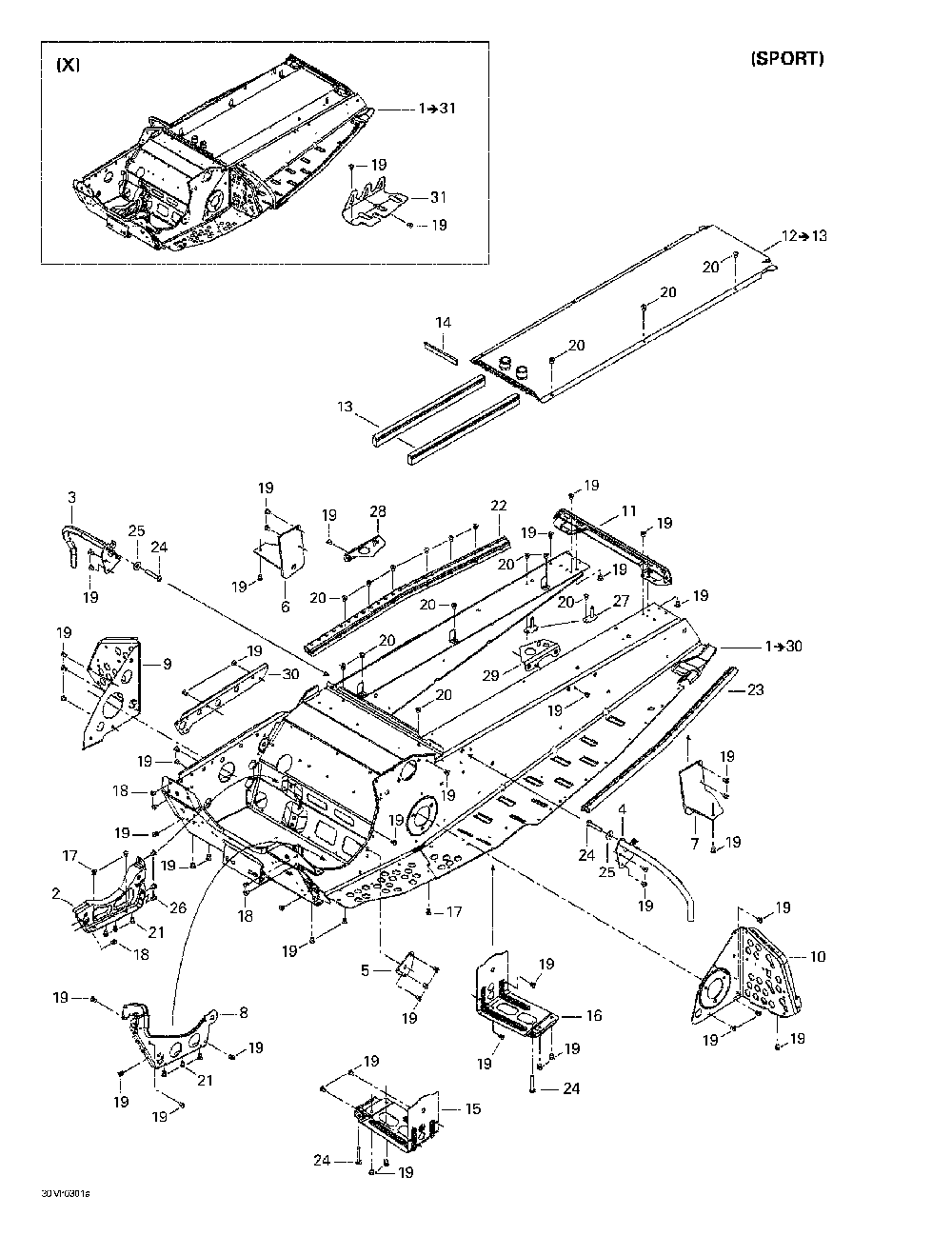

Рама

Ski-Doo (Bombardier) MX Z Rev 600 HO/800/007 Special Edition
Ski-Doo (Bombardier)
#oem кодцена
1
415128558
Chassis *frame Service Includes 1 - 30.
1
415128557
Chassis *frame Service Includes 1 - 31.
2
518323346
Supp.moteur *engine Support
3
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
4
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
5
518323507
Renfort Ext. *reinf. Outer
6
518323348
Att.susp.dr. *slide Brkt Rh
7
518322350
Radiateur Ga.so*radiator-lh Weld
8
518323241
Renfort Int. *inner Reinforcement
9
518323244
Renf.rep.-pi.dr*footrest Reinf. Rh
10
518323245
Renf.rep.-pi.ga*footrest Reinf. Lh
11
518323391
Renfort Tunnel *frame Form. Reinf.
12
518323379
Radiateur Arr.s*rad.-front Weld. Includes 12 - 13.
13
518321656
Защита
14
293200003
Joint Etanche *seal-tray
15
518322432
Marche-pied Dr.*footrest-rh
16
518322433
Marche-pied Ga.*footrest-lh
17
390909200
Заклепка
18
390909100
Заклепка
19
390402200
Заклепка 3/16
20
390402400
Заклепка 3/16
21
390910300
Rivet Henrob *rivet-henrob
22
518322186
Rouleau Droit *roller-rh
23
518322187
Rouleau Gauche *roller-lh
518323422
Rouleau Gauche *roller-lh Yellow
25
234082410
Шайба
26
293150096
Заклепка
27
518322791
Att.reserv.so. *brkt-tank Weld
28
518323336
Renfort Tunnel *frame Form. Reinf.
29
518323337
Renfort Tunnel *frame Form. Reinf.
30
518323328
Raidisseur *stiffener
31
518325266
Doublure Tun.ja*liner-tunnel Rh.yellow
518325267
Doublure Tun.ja*liner-tunnel Lh Yellow
29
518324386
Renfort Tunnel *frame Form. Reinf.
