05- drive pulley (600 ho) Запчасти для снегоходов Ski-Doo (Bombardier) MX Z Rev 600 HO/800/007 Special Edition (2003)

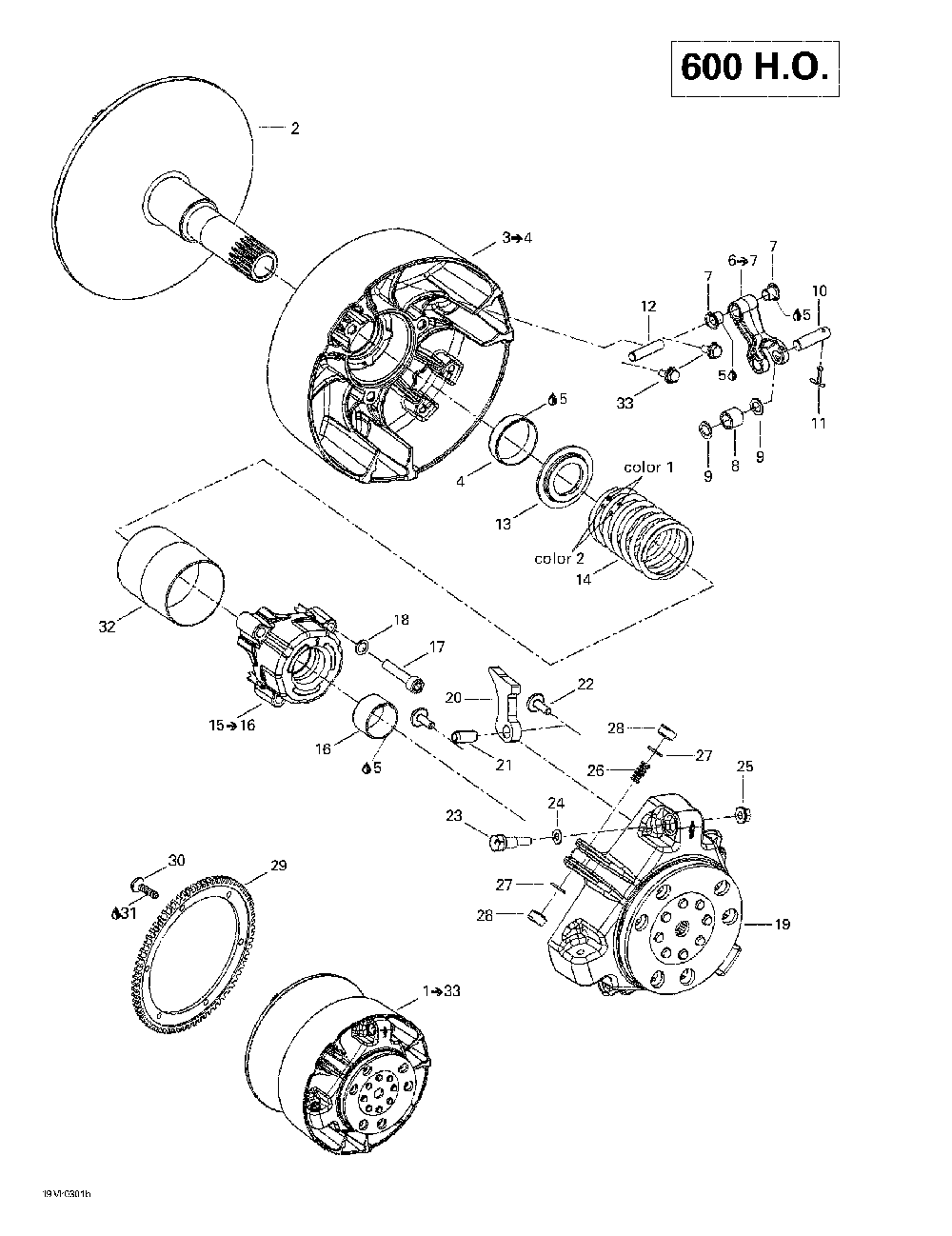

05- drive pulley (600 ho)

Ski-Doo (Bombardier) MX Z Rev 600 HO/800/007 Special Edition

oem код

название

цена

417222937

Flasque Fixe As*flange-fixe Ass Mx Z 600 H.o..

417222181

Flasque Coul.as*flange-slid.assy Includes 3 - 4. Mx Z 600 H.o..

417222758

Douille *bushing Mx Z 600 H.o..

413703100

Loctite 609 *loctite-609 Mx Z 600 H.o..

417222671

Levier Ass. *lever-assy Includes 6 - 7. Mx Z 600 H.o..

417004305

Douille *bushing Mx Z 600 H.o..

417222947

Rouleau Ass. *roller-ass. Mx Z 600 H.o..

417004302

Rondelle Butee *washer-stopper Mx Z 600 H.o..

417004308

Goupille *pin Mx Z 600 H.o..

732958001

Goupille Fendue*pin-cotter Mx Z 600 H.o..

417009202

Axe De Levier *axle-lever Mx Z 600 H.o..

417222312

Siege Ressort *seat-spring Mx Z 600 H.o..

414817900

Ressort *clutch Spring Mx Z 600 H.o..

417007500

Couvercle *spring Cover Includes 15 - 16. Mx Z 600 H.o..

417009204

Douille *bushing Mx Z 600 H.o..

205084044

Screw-socket Hd.din.912 Mx Z 600 H.o..

250200009

Ribbed Lock Washer 8mm Bn791 Mx Z 600 H.o..

417222213

Cuvette *governor Cup Mx Z 600 H.o..

417222596

Rampe 410 *ramp-410 Mx Z 600 H.o..

250400009

Goupille Ress. *pin-rolled Mx Z 600 H.o..

250000059

Screw-hex.flange M6 X 18 Mx Z 600 H.o..

417005500

Vis Calibration*screw-calib. Mx Z 600 H.o..

417005600

Rondelle *washer Mx Z 600 H.o..

233061414

Nut-flange Hexagonal Din.6927 Mx Z 600 H.o..

417005700

Ressort *spring Mx Z 600 H.o..

732401030

Joint Torique *o-ring Mx Z 600 H.o..

417223021

Glissiere *shoe-slider Mx Z 600 H.o..

861791800

Ens, Couronne La*kit Ring Gear Rer 600 H.o. Electric Mx Z 600 H.o.

250000049

Screw-forming Bn.hd.torx Rer 600 H.o. Electric Mx Z 600 H.o.

293800005

Loctite 271 *loctite-271 Rer 600 H.o. Electric Mx Z 600 H.o.

417009205

Protecteur *guard Mx Z 600 H.o..

250000362

Screw Hexagonal*flange M6 X 12 Mx Z 600 H.o..

417223197

Vis Calibration*screw-calib. Mx Z 600 H.o..

417223238

Cuvette *governor Cup Mx Z 600 H.o..

250000412

Serrated Hex. Flange Bolt S.grip M6x12 Mx Z 600 H.o..
