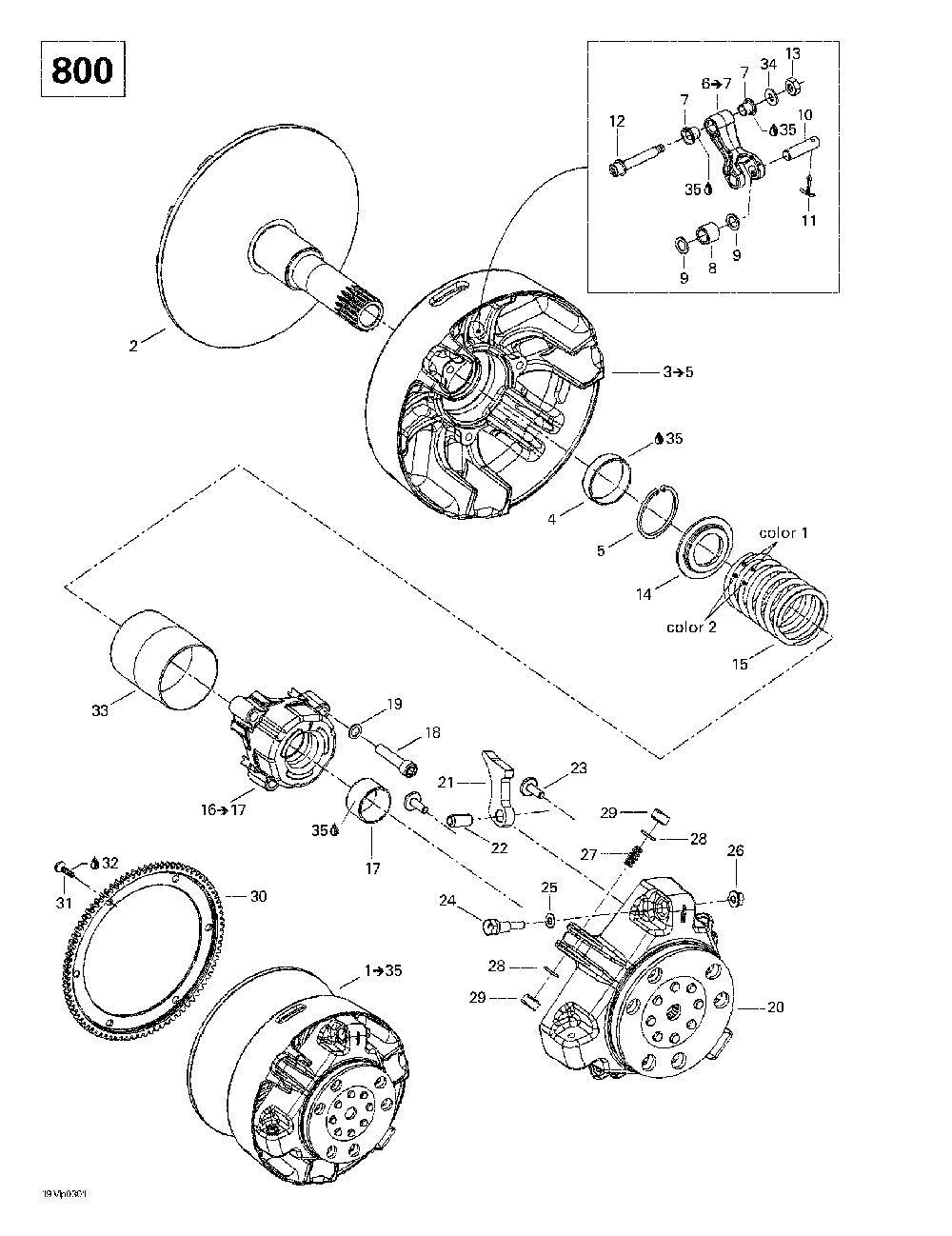

05- drive pulley (800)

Ski-Doo (Bombardier) MX Z Rev 600 HO/800/007 Special Edition
Ski-Doo (Bombardier)
#oem кодцена
2
417222970
Flasque Fixe As*flange-fixe Ass. Mx Z 800.
3
415129293
Flasque Coul.as*flange-slid Kit Includes 3 - 5. Mx Z 800.
4
417222758
Douille *bushing Mx Z 800.
5
293370037
Anneau Retenue *circlip Mx Z 800.
6
417222671
Levier Ass. *lever-assy Includes 6 - 7. Mx Z 800.
7
417004305
Douille *bushing Mx Z 800.
8
417222947
Rouleau Ass. *roller-ass. Mx Z 800.
9
417004302
Rondelle Butee *washer-stopper Mx Z 800.
10
417004308
Goupille *pin Mx Z 800.
11
732958001
Goupille Fendue*pin-cotter Mx Z 800.
12
417222028
Vis Ass. *srew-ass. Mx Z 800.
13
232561414
Nut-stop Elastic Din.985 Mx Z 800.
14
417222312
Siege Ressort *seat-spring Mx Z 800.
15
415015300
Ressort *spring Mx Z 800.
16
417007500
Couvercle *spring Cover Includes 16 - 17. Mx Z 800.
17
417009204
Douille *bushing Mx Z 800.
18
205084044
Screw-socket Hd.din.912 Mx Z 800.
19
250200009
Ribbed Lock Washer 8mm Bn791 Mx Z 800.
20
417222213
Cuvette *governor Cup Mx Z 800.
21
417222546
Rampe 414 *ramp-414 Mx Z 800.
22
250400009
Goupille Ress. *pin-rolled Mx Z 800.
23
250000059
Screw-hex.flange M6 X 18 Mx Z 800.
24
417005500
Vis Calibration*screw-calib. Mx Z 800.
25
417005600
Rondelle *washer Mx Z 800.
26
233061414
Nut-flange Hexagonal Din.6927 Mx Z 800.
27
417005700
Ressort *spring Mx Z 800.
28
732401030
Joint Torique *o-ring Mx Z 800.
29
417223021
Glissiere *shoe-slider Mx Z 800.
30
861791800
Ens, Couronne La*kit Ring Gear Rer 800 Electric Mx Z 800.
31
250000049
Screw-forming Bn.hd.torx Rer 800 Electric Mx Z 800.
32
293800005
Loctite 271 *loctite-271 Rer 800 Electric Mx Z 800.
33
417009205
Protecteur *guard Mx Z 800.
34
234061410
Washer-flat M6 Din.125a Mx Z 800.
35
413703100
Loctite 609 *loctite-609 Mx Z 800.
20
417223197
Vis Calibration*screw-calib. Mx Z 800.
20
417223238
Cuvette *governor Cup Mx Z 800.
