Рама Запчасти для снегоходов Ski-Doo (Bombardier) MX Z X 440 (2003)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

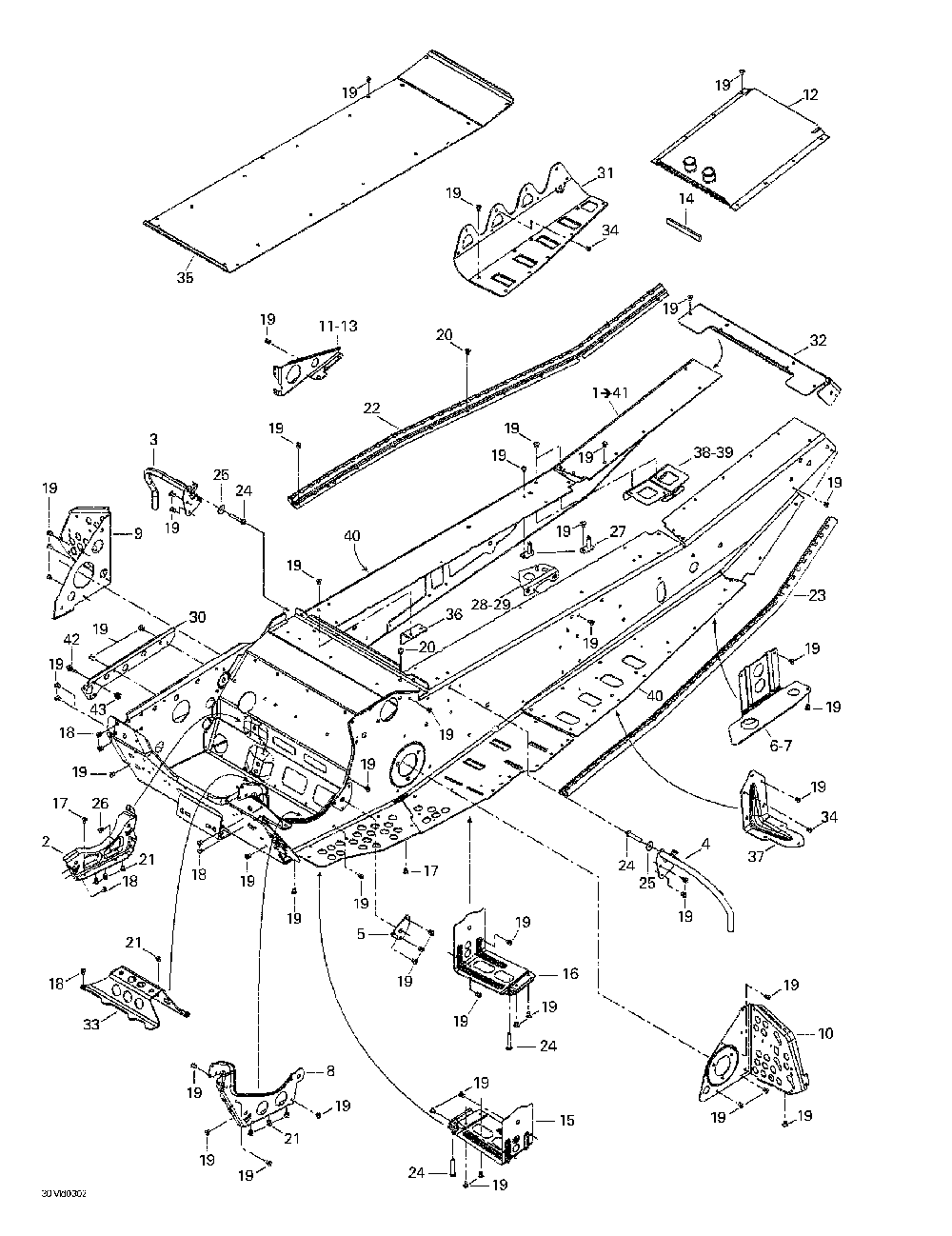

Рама

Ski-Doo (Bombardier) MX Z X 440

Рама

#

oem код

название

цена

1

Chassis *frame Service Includes 1 - 41.

Chassis *frame Service Includes 1 - 41.

2

Supp.moteur *engine Support

Supp.moteur *engine Support

3

Sup.acc.pi.dr.s*supp-toe Hold Rh Weld

Sup.acc.pi.dr.s*supp-toe Hold Rh Weld

4

Sup.acc.pi.ga.s*supp-toe Hold Lh Weld

Sup.acc.pi.ga.s*supp-toe Hold Lh Weld

5

Renfort Ext. *reinf. Outer

Renfort Ext. *reinf. Outer

6

Attache Susp.dr*brkt-slide Rhblack

Attache Susp.dr*brkt-slide Rhblack

7

Attache Susp.ga*bracket-slide Lh Blk

Attache Susp.ga*bracket-slide Lh Blk

8

Renfort Int. *inner Reinforcement

Renfort Int. *inner Reinforcement

9

Renf.rep.-pi.dr*footrest Reinf. Rh

Renf.rep.-pi.dr*footrest Reinf. Rh

10

Renf.rep.-pi.ga*footrest Reinf. Lh

Renf.rep.-pi.ga*footrest Reinf. Lh

11

Кронштейн

Кронштейн

12

Radiateur Arr.s*rear Rad. Weld

Radiateur Arr.s*rear Rad. Weld

13

Кронштейн

Кронштейн

14

Joint Etanche *seal-tray

Joint Etanche *seal-tray

15

Renfort Droit *rh.footrest

Renfort Droit *rh.footrest

16

Renfort Gauche *reinforcement

Renfort Gauche *reinforcement

17

Заклепка

Заклепка

18

Заклепка

Заклепка

19

Заклепка 3/16

Заклепка 3/16

20

Заклепка 3/16

Заклепка 3/16

21

Rivet Henrob *rivet-henrob

Rivet Henrob *rivet-henrob

22

Rouleau Droit *roller-rh

Rouleau Droit *roller-rh

23

Rouleau Gauche *roller-lh

Rouleau Gauche *roller-lh

25

Шайба

Шайба

26

Заклепка

Заклепка

27

Att.reserv.so. *brkt-tank Weld

Att.reserv.so. *brkt-tank Weld

28

Renfort Tunnel *frame Form. Reinf.

Renfort Tunnel *frame Form. Reinf.

29

Renfort Tunnel *frame Form. Reinf.

Renfort Tunnel *frame Form. Reinf.

30

Raidisseur *stiffener

Raidisseur *stiffener

31

Doublure Tun.dr*liner-tun.rh

Doublure Tun.dr*liner-tun.rh

Doublure Tun.ga*liner-tun.lh<

Doublure Tun.ga*liner-tun.lh<

32

Capuchon Arr. *cap-rear

Capuchon Arr. *cap-rear

33

Traverse Centr.*cross-link

Traverse Centr.*cross-link

34

Заклепка 3/16

Заклепка 3/16

35

Plaque Centrale*center Plate

Plaque Centrale*center Plate

36

Renfort *reinforcement

Renfort *reinforcement

37

Renfort Central*reinf.-center

Renfort Central*reinf.-center

38

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

39

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

40

Marche-pied Dr.*footrest-rh

Marche-pied Dr.*footrest-rh

41

Marche-pied Ga.*footrest-lh

Marche-pied Ga.*footrest-lh

42

Винт

Винт

43

Гайка

Гайка

12

Radiateur Arr.s*rear Rad. Weld

Radiateur Arr.s*rear Rad. Weld

29

Renfort Tunnel *frame Form. Reinf.

Renfort Tunnel *frame Form. Reinf.

40

Marche-pied Dr.*footrest-rh

Marche-pied Dr.*footrest-rh
