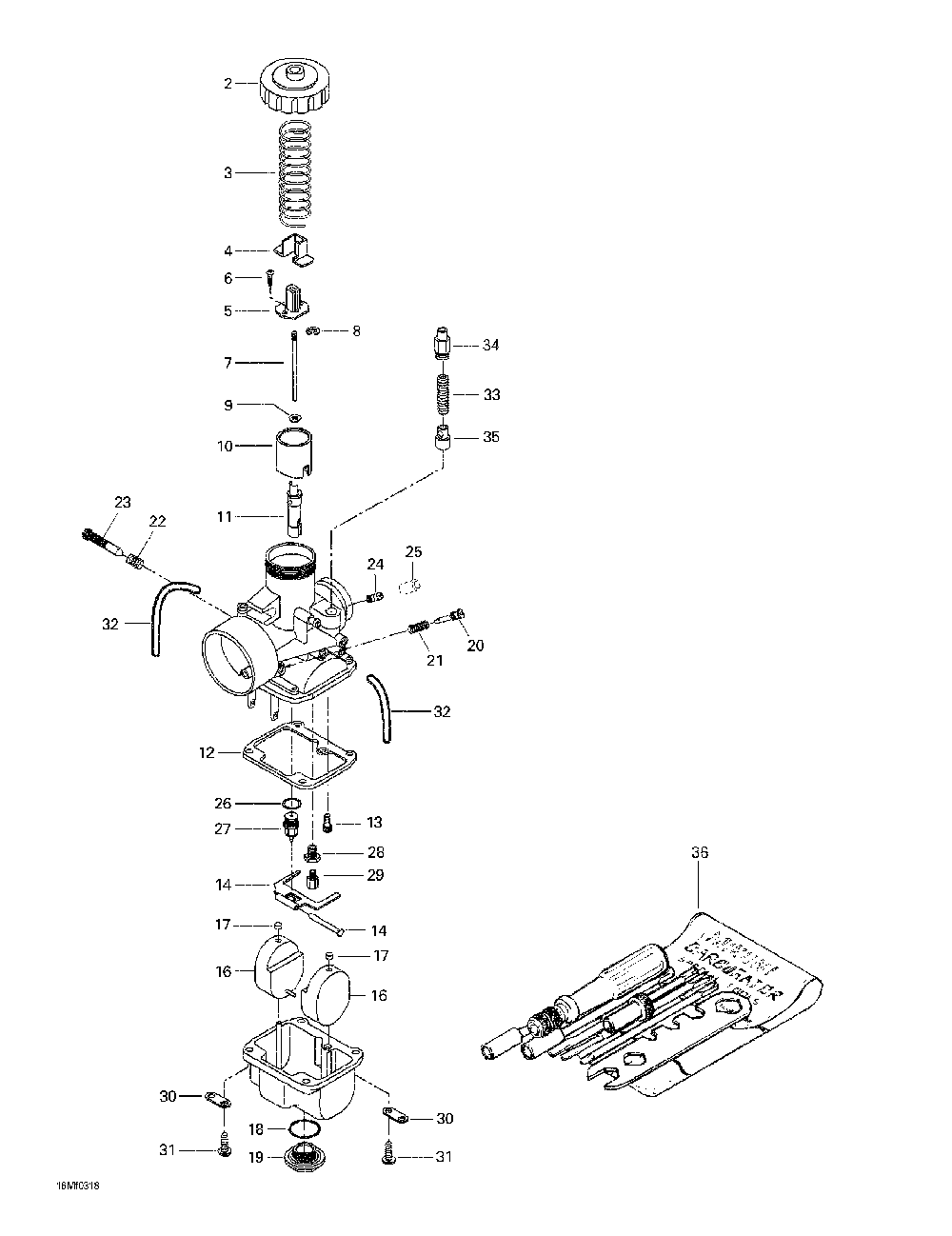

Карбюратор

Ski-Doo (Bombardier) Skandic 600
Ski-Doo (Bombardier)
#oem кодцена
1
M19084
Carb.vm-34-564 *carb-vm-34-564 Includes 1 - 35. Skandic 500f. Skandic 500f (swt).
M19112
Carb.vm-38 *carb-vm-38 Skandic 600.
M19111
Carb.vm-38 *carb-vm-38 Skandic 600.
2
404103700
Couvercle Carb.*top-mix.chamb. Skandic 500f. Skandic 500f (swt).
404105100
Couvercle Carb.*top-mix.chamb. Skandic 600.
3
404154800
Пружина
4
404122100
Крышка
5
404160800
Connecteur *connector
6
404121300
Vis W.rondelle*screw-with Washer
7
404110400
Aiguille 6dh02 *needle Skandic 500f. Skandic 500f (swt).
404114100
Aiguille 6fl14 *needle Skandic 600.
8
404152400
Rondelle E *ring-e
9
404117000
Joint Tampon *packing
10
404128400
Tiroir Acc.2.5 *piston-val.2.5
11
404157100
Gicleur Aiguil.*jet Needle Skandic 500f. Skandic 500f (swt).
404161805
Gicleur Aiguil.*jet Needle Skandic 600.
12
404104200
Joint *gasket Skandic 500f. Skandic 500f (swt).
404104700
Joint *gasket Skandic 600.
13
404109100
Gicleur Ralenti*jet-pilot 40
14
404103300
Палец крепления рычага
15
404107600
Levier Flotteur*lever-float Skandic 500f. Skandic 500f (swt).
404105000
Levier Flotteur*lever-float Skandic 600.
16
404107100
Flotte *float Skandic 500f. Skandic 500f (swt).
404105400
Flotte *float Skandic 600.
17
404105800
Крышка
18
404107300
Joint Torique *o-ring Skandic 500f. Skandic 500f (swt).
404101500
Rondelle *washer Skandic 600.
19
404107400
Vis Bouchon *screw-drain Plug Skandic 500f. Skandic 500f (swt).
404105600
Vis Bouchon *screw-drain Plug Skandic 600.
20
404102300
Screw-air Skandic 500f. Skandic 500f (swt).
404149000
Vis Air *screw-air Skandic 600.
21
404101800
Ressort *spring Skandic 500f. Skandic 500f (swt).
404139800
Ressort *spring Skandic 600.
22
404101700
Пружина
23
404102800
Vis Ajustement*screw-idle Speed
24
404127600
Raccord *nipple Skandic 500f. Skandic 500f (swt).
404153400
Raccord *nipple Skandic 600.
25
404156600
Крышка
26
404101600
Rondelle Siege *washer-seat
27
404103200
Pointeau Vs 1.5*valve-needle
28
404105500
Vis Guide *screw-guide
29
404119500
Gicleur Mj 185 *jet-main 185 Skandic 500f. Skandic 500f (swt).
404101400
Gicleur Mj 330 *jet-main 330 Skandic 600.
30
404103000
Plaque *plate
31
404102000
Screw-w/lock *screw-w/lockwasher
32
404160100
Tuyau Aeration *tube-air Vent
33
404127400
Пружина
34
404161100
Guide *guide Holder
35
404160400
Plongeur Ass. *plunger-assy
36
404112000
Комплект инструментов
