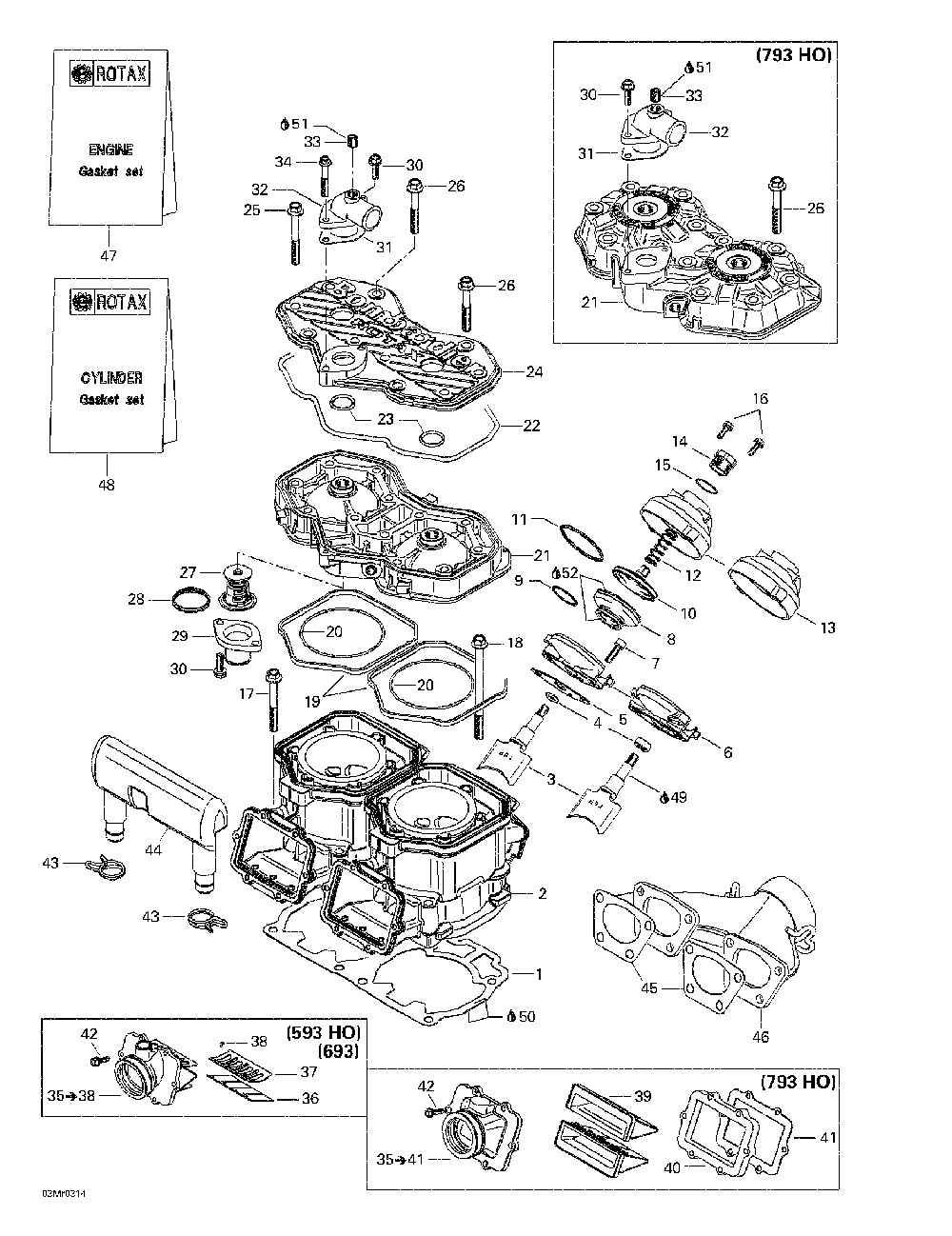

Цилиндр,впускной коллектор и мощност. клапан

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
1
420931895
Joint 0.8 *gasket 0.8 Summit 600 Ho. Summit 700.
420931839
Joint 0.8 *gasket 0.8 Summit 800 Ho.
420931894
Joint 0.7 *gasket 0.7 Summit 600 Ho. Summit 700.
420931964
Joint 0.7 *gasket 0.7 Summit 800 Ho.
420931892
Joint 0.6 *gasket 0.6 Summit 600 Ho. Summit 700.
420931837
Joint 0.6 *gasket 0.6 Summit 800 Ho.
420431160
Joint 0.5 *gasket 0.5 Summit 600 Ho. Summit 700.
420931838
Joint 0.5 *gasket 0.5 Summit 800 Ho.
2
421000605
Cylindre *cylinder 593 Ho Summit 600 Ho.
420923695
Cylindre Nicas.*cylinder-nicasil Summit 700.
420613852
Cylindre Nicas.*cylinder-nicasil Summit 800 Ho.
3
420854650
Exhaust Valve Slide Summit 600 Ho.
420854332
Soupape Echap. *valve-exhaust Summit 700.
420854465
Soupape Echap. *valve-exhaust Summit 800 Ho.
4
420430110
Joint Torique *o Ring Summit 600 Ho. Summit 800 Ho.
420950730
Anneau Etanche *seal-oil Summit 700.
5
420250239
Joint *gasket Summit 700.
420931542
Joint *gasket Summit 600 Ho. Summit 800 Ho.
6
420854266
Boitier *housing-valve Summit 700.
420854455
Boitier *housing-valve Summit 600 Ho. Summit 800 Ho.
7
205062044
Screw-socket Hd.din.912 Summit 700.
205062544
Screw-socket Hd.din.912 Summit 600 Ho. Summit 800 Ho.
8
420260723
Manchon *bellows Summit 700.
420260729
Manchon *bellows Summit 600 Ho. Summit 800 Ho.
9
420838253
Bride Ressort *clamp-spring
10
420854449
Soupape Echapp.*valve-exhaust
11
420239048
Ressort Manchon*spring-hose
12
420239944
Ressort *spring Summit 600 Ho. Summit 700.
420239942
Ressort *spring Summit 800 Ho.
13
420911552
Couvercle Soup.*cover-valve Summit 700.
420911558
Couvercle Soup.*cover-valve Summit 600 Ho. Summit 800 Ho.
14
420241221
Винт-регулятор
15
420430220
Joint Torique *o Ring Summit 600 Ho. Summit 800 Ho.
16
420841555
Screw-tapping M5 X 20 Summit 700.
420241270
Screw-taptite M5 Summit 600 Ho. Summit 800 Ho.
17
420640524
Screw-hex Collar
18
420640534
Screw-hex Collar
19
420931590
Bague Caout. *ring-rubber
20
293300026
Joint Torique *o-ring Summit 600 Ho.
420931840
Joint Torique *o Ring Summit 700.
420931410
Joint Torique *o Ring Summit 800 Ho.
21
420613701
Tete-cylindre *head-cylinder Summit 600 Ho.
420613840
Tete-cylindre *head-cylinder Summit 700.
420613922
Tete-cylindre *head-cylinder Summit 800 Ho.
22
420950320
Joint Torique *o Ring Summit 600 Ho. Summit 700.
23
420430782
Joint Torique *o Ring Summit 600 Ho. Summit 700.
24
420923465
Couvercle Cyl. *cover-cyl.head Summit 600 Ho. Summit 700.
25
420841306
Screw-hex Collar M8x65 Sw 11 Summit 600 Ho. Summit 700.
26
420941627
Винт M8x56, 5
27
420922519
Термостат
28
420931272
Sealing Ring
29
420922025
Raccord Sortie *bent Outlet Socket
30
420941250
Screw-tapping
31
420850338
Прокладка
32
420922062
Raccord Sortie *bent Outlet Socket
33
420240480
Screw-plug 1/8-27 Npt
34
420941451
Screw-hex Collar M6 X 40 Summit 600 Ho. Summit 700.
35
420667107
Tubulure Carb. *socket-carburator Includes 35 - 41. Summit 800 Ho.
35
420867873
Tubulure Carb. *socket-carburator Includes 35 - 38. Summit 700.
420867874
Carburetor Socket Summit 600 Ho.
36
420924680
Lame Pedale *reed-pedal Summit 600 Ho. Summit 700.
37
420924695
Arret Lame Ped.*stop-reed Ped. Summit 600 Ho. Summit 700.
38
420941215
Винт М3х5
39
420924790
Reed Valve Assy Summit 800 Ho.
40
420924820
Distance Flange Summit 800 Ho.
41
420630815
Gasket Summit 800 Ho.
42
420941925
Screw-tapping M5 X 16 Summit 600 Ho. Summit 700.
420641840
Screw M5x35, Taptite Summit 800 Ho.
43
420851440
Bride *clamp Summit 700.
44
420867817
Resonate.d Adm.*resona.intake Summit 700.
45
420850552
Joint *gasket Summit 600 Ho. Summit 700.
420931850
Joint *gasket Summit 800 Ho.
46
420973592
Collect.echapp.*exhaust Manifold Summit 600 Ho. Summit 700.
420973714
Collect.echapp.*manifold-exh. Summit 800 Ho.
47
420889923
Gasket Set Engine Summit 600 Ho.
420888603
Ens.joint Etanc*kit-gasket Engine Summit 700.
420888741
Ens.joint Etanc*kit-gasket Engine Summit 800 Ho.
48
420889927
Gasket Set Cylinder Summit 600 Ho.
420888608
Ens.joint Etanc*kit-gasket Cylinder Summit 700.
420888745
Ens.joint Etanc*kit-gasket Cylinder Summit 800 Ho.
49
420297433
Molykote G-n 50gr.
50
293800038
Локтайт-518
51
420297906
Герметик уплотнитель соединений
52
413707000
Смазка Corning 111
