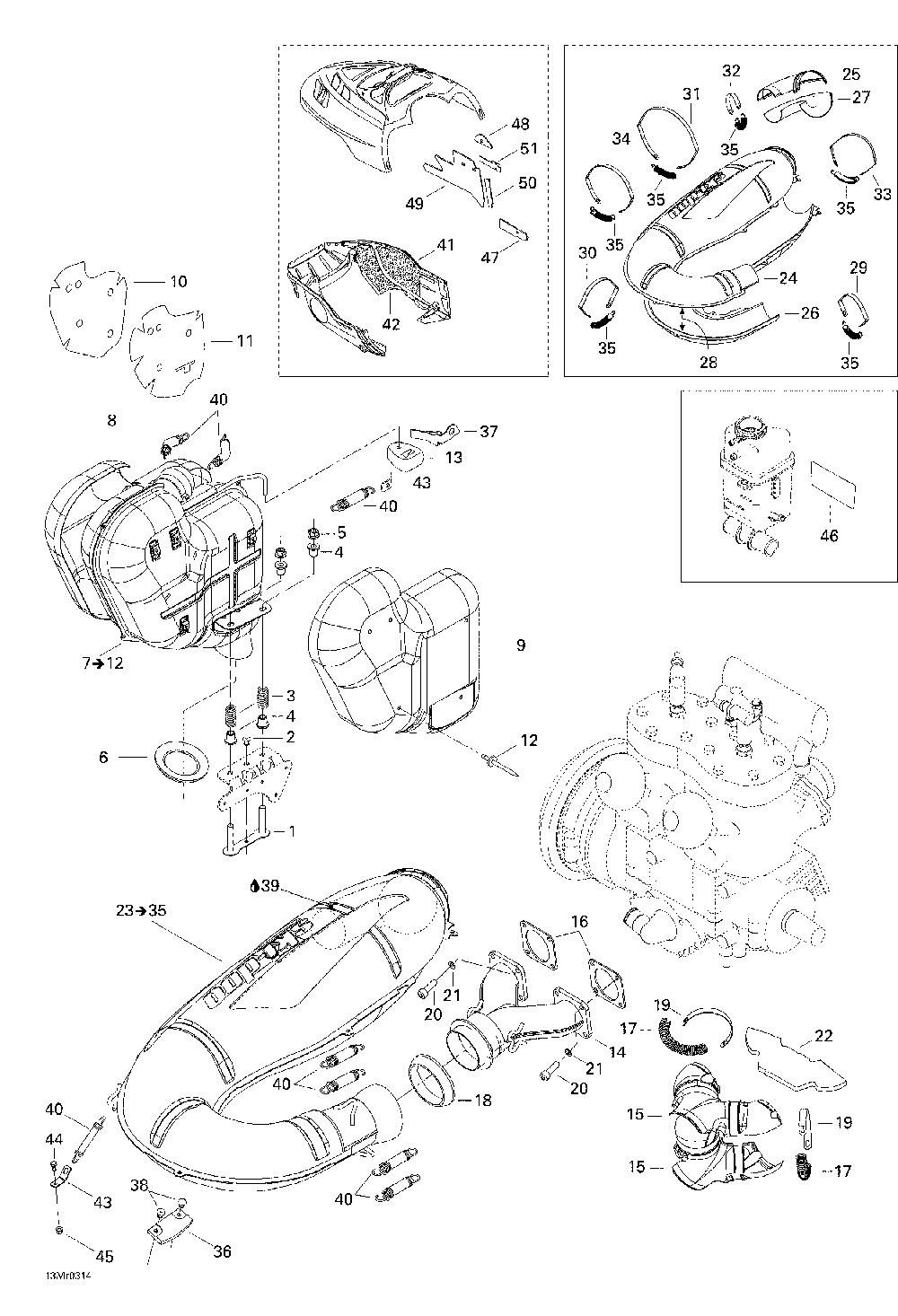

Глушитель

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
1
514053263
Attache Sil.so.*brkt-muffler Weld
2
390402200
Заклепка 3/16
3
414913700
Пружина
4
514053343
Направляющая
5
233481413
Lock Spring Nut Din.980m
6
514054224
Пружина
7
514053483
Silencieux Ass.*muffler-assy Includes 7 - 12. 600 Ho Summit 600 Ho.
514053537
Silencieux Ass.*muffler-assy 700 Summit 700.
514053513
Silencieux Ass.*muffler-assy 800 Ho Summit 800 Ho.
8
514053606
Defl.chaleur Dr*rh Heat Shield
9
514053516
Defl.chaleur Ga*shield-heat Lh Assy
10
514053294
Laine Isol.dr *insulating-wooll
11
514053295
Laine Isol.ga. *insulating-wooll
12
390910000
Заклепка 3/16
13
514052704
Butoir Caout. *bumper-rubber
14
420973592
Collect.echapp.*exhaust Manifold 600 Ho / 700 Summit 600 Ho. Summit 700.
420973714
Collect.echapp.*manifold-exh. 800 Ho Summit 800 Ho.
15
514053593
Env.collect.ech*manifold Exh.envelop.
16
420850552
Joint *gasket 600 Ho / 700 Summit 600 Ho. Summit 700.
420931850
Joint *gasket 800 Ho Summit 800 Ho.
17
514053643
Пружина
18
514053487
Прокладка глушителя
19
514053603
Languette *strap Retaining
20
205062044
Винт
21
234161471
Шайба
22
514053588
Laine Isolante *wooll Insulating
23
514053506
Tuy. Calib.ass.*tube-calib.assy Includes 23 - 35.
24
514053192
Enveloppe Sup. *enveloppe-upp.
25
514053313
Enveloppe Sup.a*enveloppe-upp.rr
26
514053367
Enveloppe Inf. *enveloppe-lower
27
514053314
Enveloppe Inf.a*enveloppe-low.rr
28
514053315
Laine Isolante *insulating-wooll
29
514053498
Languette *retaining Strap
30
514053501
Languette *retaining Strap
31
514053540
Languette *dstrap-retaining
32
514053492
Languette *retaining Strap
33
514053500
Languette *retaining Strap
34
514053512
Languette *retaining Strap
36
570044100
Прокладка резиновая
37
514053442
Support Peint *sup.-engine P.
38
293150103
Заклепка 3/16
39
293800090
Смазка
40
415107100
Пружина
41
514052718
Теплозащита
42
514053390
Теплозащита
43
514053436
Attache Ressort*brachet-spring
44
207151244
Винт
45
233251414
Гайка
46
514053399
Теплозащита
47
514053435
Pare Chaleur *heat Shield One Tone
48
514053446
Pare Chaleur *heat Shield One Tone
49
514053624
Теплозащита
50
514053450
Теплозащита
51
514053391
Pare Chaleur *heat Shield Two Tones
