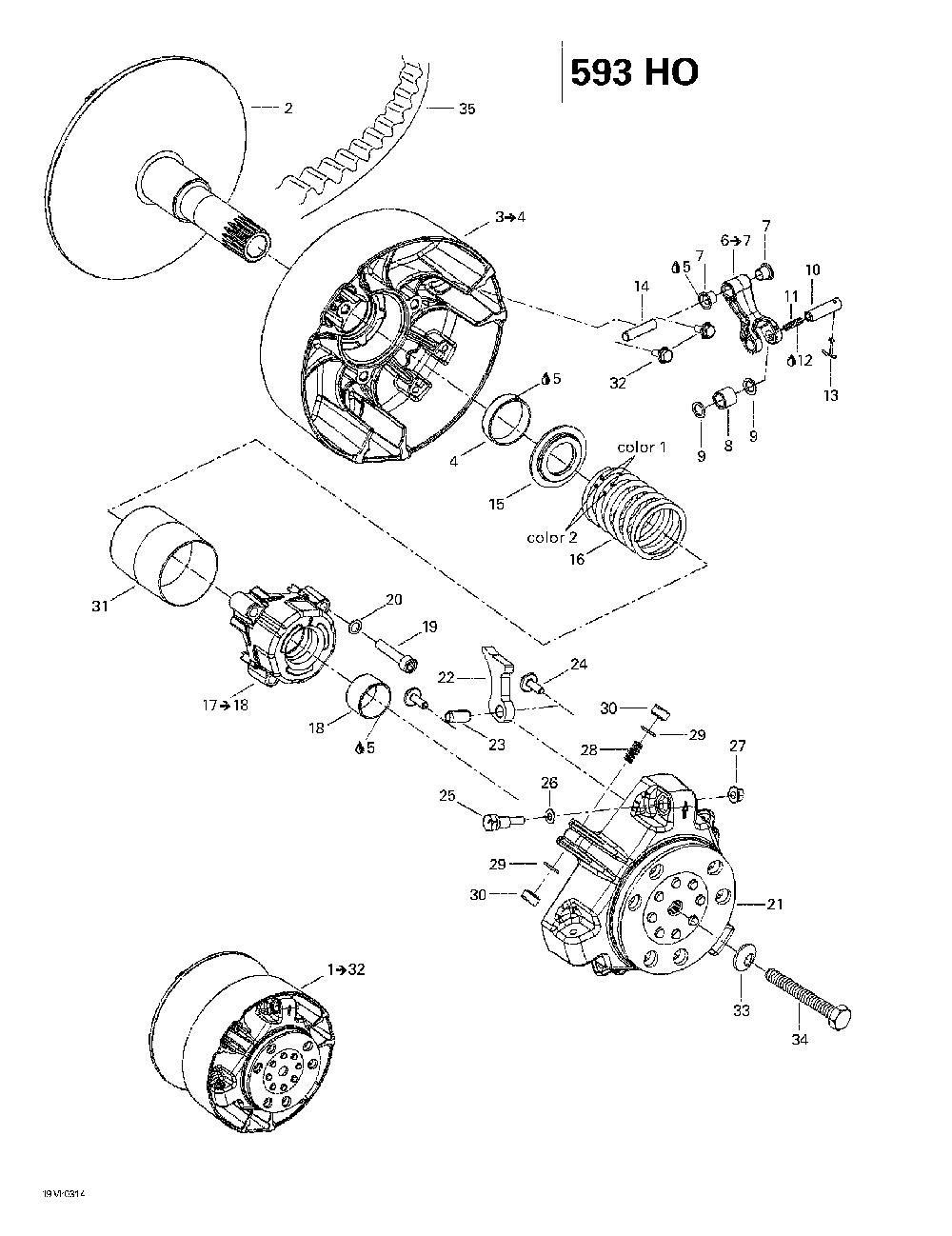

Вариатор (593 HO)

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
2
417222937
Flasque Fixe As*flange-fixe Ass Summit 600 Ho.
3
417222181
Flasque Coul.as*flange-slid.assy Includes 3 - 4. Summit 600 Ho.
4
417222758
Douille *bushing Summit 600 Ho.
5
413703100
Loctite 609 *loctite-609 Summit 600 Ho.
6
417222671
Levier Ass. *lever-assy Includes 6 - 7. Summit 600 Ho.
7
417004305
Douille *bushing Summit 600 Ho.
8
417222947
Rouleau Ass. *roller-ass. Summit 600 Ho.
9
417004302
Rondelle Butee *washer-stopper Summit 600 Ho.
10
417222477
Goupille *threaded Pin Std 600 Ho Adrenaline. Rer 600 Ho Adrenaline Summit 600 Ho.
417004308
Goupille *pin Rer 600 Ho Adrenaline (europe) Summit 600 Ho.
11
206262099
Screw-set Socket Din.913 Summit 600 Ho.
12
293800060
Loctite 243 *loctite-243 Summit 600 Ho.
13
732958001
Goupille Fendue*pin-cotter Summit 600 Ho.
14
417009202
Axe De Levier *axle-lever Summit 600 Ho.
15
417222312
Siege Ressort *seat-spring Summit 600 Ho.
16
417222371
Ressort *spring Std 600 Ho Adrenaline. Rer 600 Ho Adrenaline Summit 600 Ho.
415034900
Ressort *spring Rer 600 Ho Adrenaline (europe) Summit 600 Ho.
17
417007500
Couvercle *spring Cover Includes 17 - 18. Summit 600 Ho.
18
417009204
Douille *bushing Summit 600 Ho.
19
205084044
Screw-socket Hd.din.912 Summit 600 Ho.
20
250200009
Ribbed Lock Washer 8mm Bn791 Summit 600 Ho.
21
417222213
Cuvette *governor Cup Summit 600 Ho.
22
417222552
Rampe 417 *ramp 417 Std 600 Ho Adrenaline. Rer 600 Ho Adrenaline Summit 600 Ho.
417222596
Rampe 410 *ramp-410 Rer 600 Ho Adrenaline (europe) Summit 600 Ho.
23
250400009
Goupille Ress. *pin-rolled Summit 600 Ho.
24
250000059
Screw-hex.flange M6 X 18 Summit 600 Ho.
25
417005500
Vis Calibration*screw-calib. Summit 600 Ho.
26
417005600
Rondelle *washer Summit 600 Ho.
27
233061414
Nut-flange Hexagonal Din.6927 Summit 600 Ho.
28
417005700
Ressort *spring Summit 600 Ho.
29
732401030
Joint Torique *o-ring Summit 600 Ho.
30
417223021
Glissiere *shoe-slider Summit 600 Ho.
31
417009205
Protecteur *guard Summit 600 Ho.
32
250000362
Screw Hexagonal*flange M6 X 12 Summit 600 Ho.
33
250200006
Washer-spring Conical Summit 600 Ho.
34
417120000
Boulon *bolt-pulley Drive Summit 600 Ho.
35
417300197
Courroie *belt-drive Summit 600 Ho.
21
417223197
Vis Calibration*screw-calib. Summit 600 Ho.
21
417223238
Cuvette *governor Cup Summit 600 Ho.
32
250000412
Serrated Hex. Flange Bolt S.grip M6x12 Summit 600 Ho.
