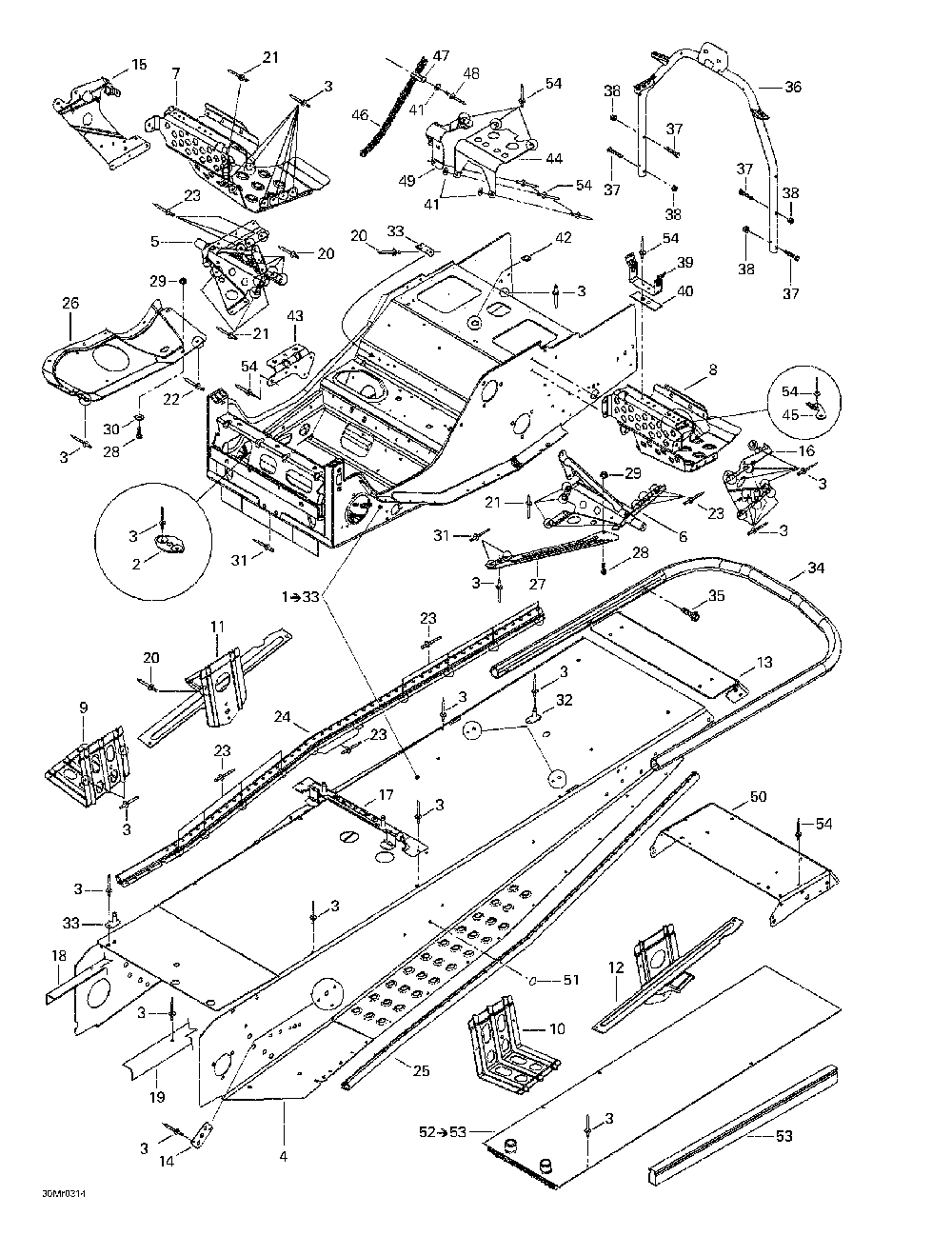

Рама

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
1
415128562
Chassis *frame Service Includes 1 - 33. Adrenaline & X
2
518201307
Plaque Att.soud*plate-brkt Weld
3
390402200
Заклепка 3/16
4
518323027
Tunnel Forme *frame-forming Adrenaline & X
861802100
Ens.tunnel *kit Tunnel Highmark & Highmark X Summit 700. Summit 800 Ho.
861802200
Ens. Tunnel*kit Tunnel Highmark X Extreme Summit 800 Ho.
5
518322845
Support Droit *rh.support
6
518322848
Support Gauche *lh.support
7
518323255
Repose-pied Dr.*rh.footrest
8
518323256
Repose-pied Ga.*lh.footrest
9
518322819
Attache Av. Dr *bracket-front Rh
10
518322821
Attache Av. Ga.*bracket-front Lh
11
518322610
Attache Susp.dr*brkt-slide Rh Adrenaline & X. Highmark & Highmark X Summit 700. Summit 800 Ho.
518323150
Attache Susp.dr*brkt-slide Rh Highmark X Extreme Summit 800 Ho.
12
518322611
Attache Susp.ga*bracket-slide Lh Adrenaline & X. Highmark & Highmark X Summit 700. Summit 800 Ho.
518323154
Attache Susp.ga*bracket-slide Lh Highmark X Extreme Summit 800 Ho.
13
518322751
Capuchon Arr. *cap-rear Adrenaline & X
14
518201321
Plaque Renfort *plate-reinf.
15
518322059
Renf.rep.-pi.dr*reinf.-footrest Rh
16
518322063
Renf.rep.-pi.ga*reinf.-footrest Lh
17
518321510
Att.reserv.p. *brkt-tank Paint Adrenaline & X
518322022
Att.reserv.p. *brkt-tank Paint Highmark & Highmark X Summit 700.. Highmark X Extreme Summit 800 Ho.
18
518322812
Renf.tunnel Dr.*reinf-frame Rh
19
518322813
Renf.tunnel Ga.*reinf-frame Lh
20
390909200
Заклепка
21
390909100
Заклепка
22
390402300
Заклепка 3/16
23
390402400
Заклепка 3/16
24
518323182
Renfort *reinforcement
25
518323183
Renfort *reinforcement
26
518322636
0laque Coque Dr*plate-pan Bott.rh
27
518322119
Plaque Renf.ga.*plate-reinf.lh
28
207152044
Винт
29
233251414
Гайка
30
391301700
Шайба
31
390910300
Rivet Henrob *rivet-henrob
32
518323321
Attache Siege S*seat Bracke Weld
33
518323173
Attache Doub.so*bracket Double Weld
34
518322430
Pare-chocs Arr.*bumper-rear Adrenaline & X
518322853
Pare-chocs Arr.*bumper-rear Adrenaline & X (europe) Summit 600 Ho. Summit 800 Ho.
518322431
Pare-chocs Arr.*bumper-rear Highmark & Highmark X Summit 700. Summit 800 Ho.
518323184
Pare-chocs Arr.*rear Bumper Highmark X Extreme Summit 800 Ho.
35
207682044
Винт
36
518322755
Supp.guidon Sou*supp-handle Weld.
37
207664044
Винт
38
233261414
Гайка
39
518202100
Attache Gard.co*brkt-guard Belt
40
518207500
Renfort *reinforcement
41
517225900
Шайба
42
414859400
Крышка
43
518322635
Support Silenc.*support-muffler
44
518310400
Supp.silenc.adm*supp-air Intake
45
518322031
Attache Trousse*bracket-tool Kit
46
518321569
Направляющая троса
47
518321570
Хомут открывающийся
48
293150103
Заклепка 3/16
49
518322699
Support Boyaux *support-hose
50
518322814
Rallonge Tunnel*extention Frame Highmark & Highmark X Summit 700. Summit 800 Ho.
518323158
Rallonge Tunnel*extention Frame Highmark X Extreme Summit 800 Ho.
51
518321954
Attache Panneau*panel-fastener
52
518322903
Radiateur Arr.s*rad.-rear Weld. Includes 52 - 53. Adrenaline & X
518322907
Radiateur Arr.s*rad.-front Weld. Highmark & Highmark X Summit 700. Summit 800 Ho.
518323450
Radiateur *radiator Highmark X Extreme Summit 800 Ho.
53
415012300
Protecteur *protector Adrenaline & X. Highmark & Highmark X Summit 700.. Highmark X Extreme Summit 800 Ho.
