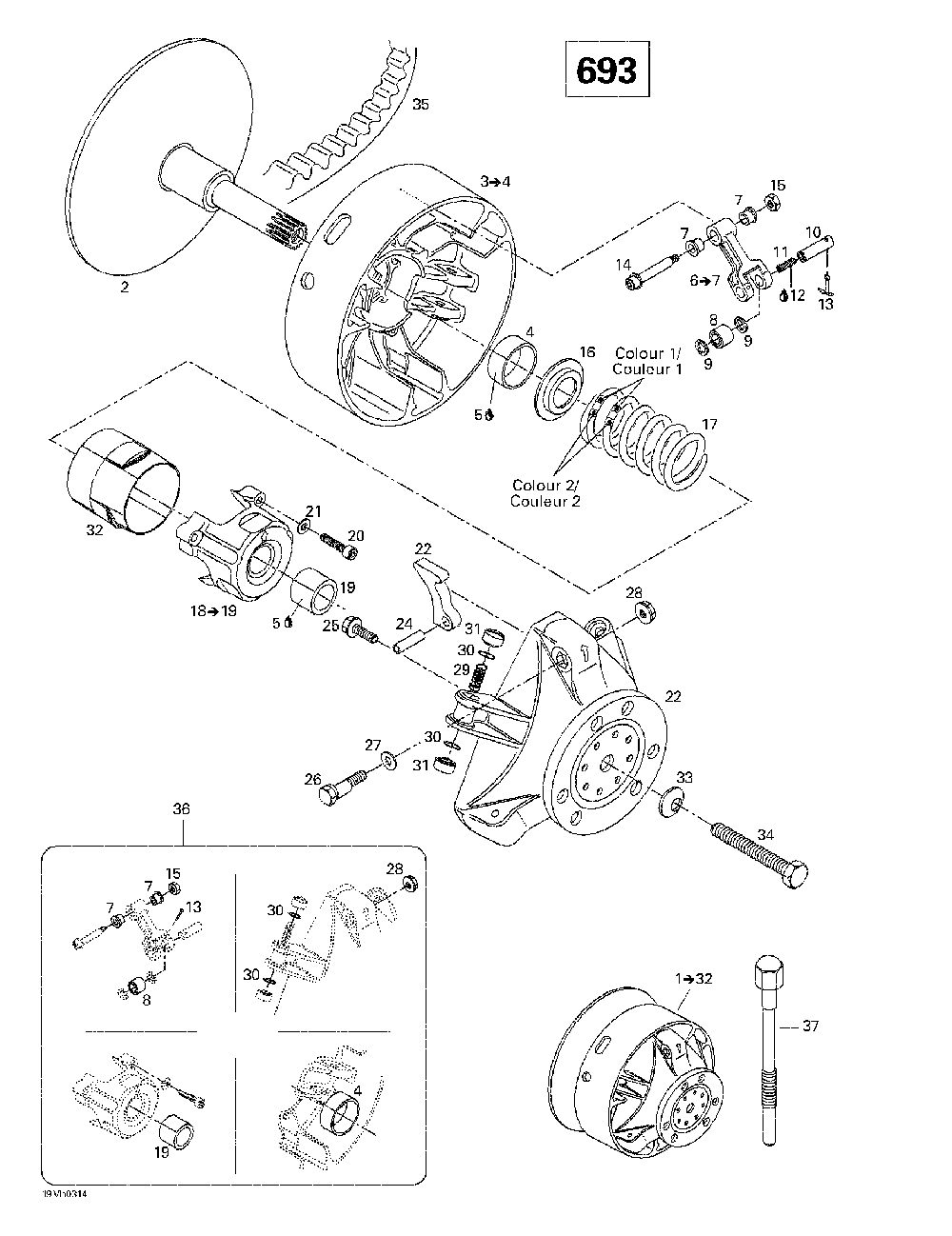

Вариатор (693)

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
2
417222411
Flasque Fixe Us*flange-fix.ma. Summit 700.
3
417222241
Flasque Coul.as*flange-slid.as Includes 3 - 4. Summit 700.
4
417004201
Douille *bushing Summit 700.
5
413703100
Loctite 609 *loctite-609 Summit 700.
6
417222383
Levier Ass. *lever-assy Includes 6 - 7. Summit 700.
7
417004305
Douille *bushing Summit 700.
8
417222947
Rouleau Ass. *roller-ass. Summit 700.
9
417004302
Rondelle Butee *washer-stopper Summit 700.
10
417222477
Goupille *threaded Pin Summit 700.
11
206262099
Screw-set Socket Din.913 Summit 700.
12
293800060
Loctite 243 *loctite-243 Summit 700.
13
732958001
Goupille Fendue*pin-cotter Summit 700.
14
417004800
Vis Assemble *screw-ass Y Summit 700.
15
232561414
Nut-stop Elastic Din.985 Summit 700.
16
417222044
Siege Ressort *seat-spring Summit 700.
17
415015300
Ressort *spring Summit 700.
18
417222304
Couvercle *spring Cover Includes 18 - 19. Summit 700.
19
417004501
Douille *bushing Summit 700.
20
250000038
Screw-socket Hd.m6 X 40 Summit 700.
21
420245370
Шайба
22
417222081
Cuvette Regul.a*govern.cup Assy. Summit 700.
23
417222372
Rampe 299 *ramp-299 Std 700 Adrenaline. Std 700 X. Std 700 Highmark Summit 700.
417222381
Rampe 300 *ramp-300 Rer 700 Adrenaline. Rer 700 X. Rer 700 Highmark Summit 700.
24
732804009
Pin-rolled Din.1481 M8 X 24 Summit 700.
25
210361890
Screw-forming Hex.hd.black Oxide Summit 700.
26
417005500
Vis Calibration*screw-calib. Summit 700.
27
417005600
Шайба
28
233061414
Nut-flange Hexagonal Din.6927 Summit 700.
29
417005700
Ressort *spring Summit 700.
30
732401030
Joint Torique *o-ring Summit 700.
31
417223021
Glissiere *shoe-slider Summit 700.
32
417222176
Protecteur *guard Summit 700.
33
250200006
Washer-spring Conical Summit 700.
34
417120000
Boulon *bolt-pulley Drive Summit 700.
35
417300127
Courroie *belt-drive Summit 700.
36
417006100
Ens.rep.emb. *kit-clutch Rep Summit 700.
37
529022400
Extrac.poulie *puller-drive Summit 700.
