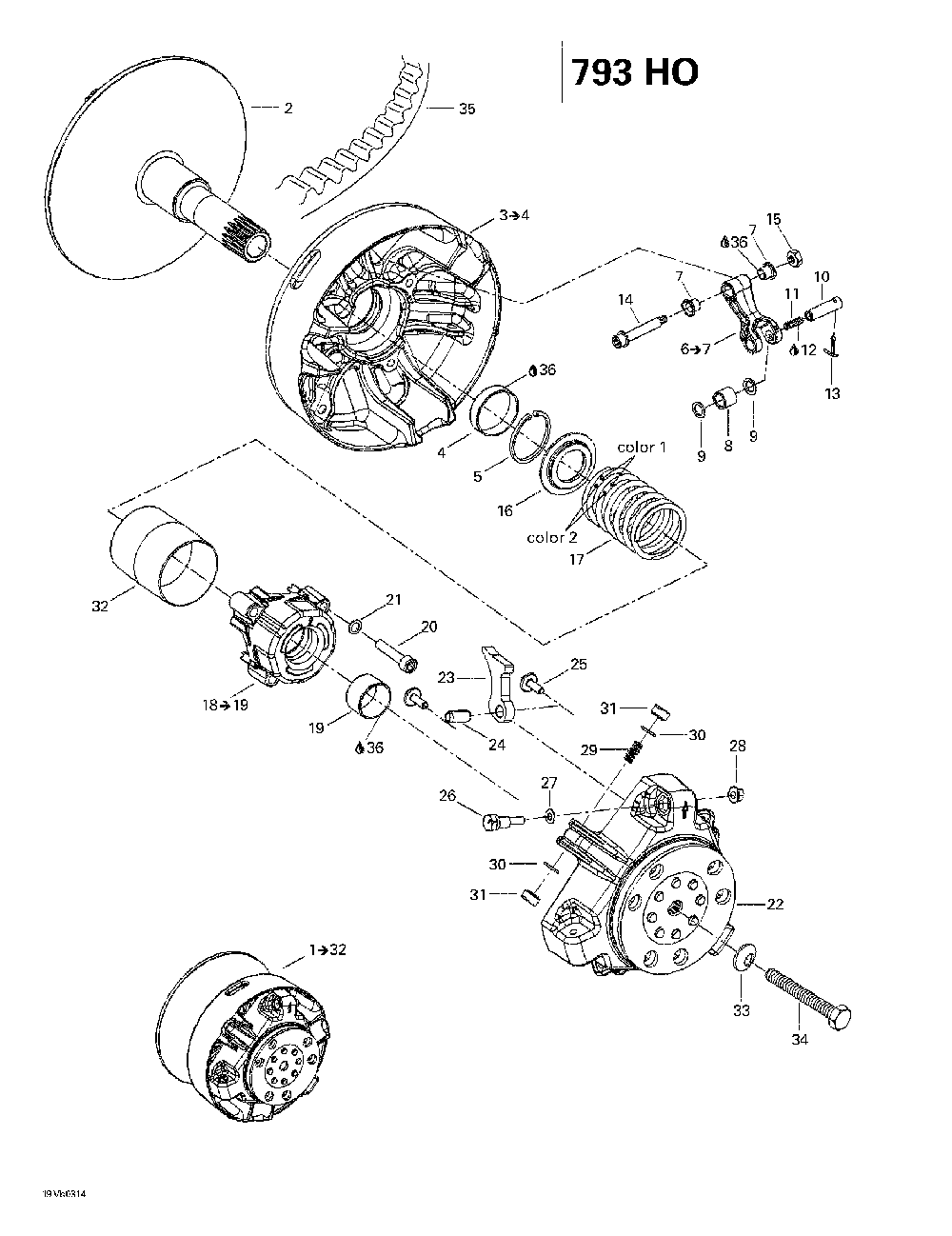

05- drive pulley (793 ho)

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
2
417222970
Flasque Fixe As*flange-fixe Ass. Summit 800 Ho.
3
415129293
Flasque Coul.as*flange-slid Kit Includes 3 - 4. Summit 800 Ho.
4
417222758
Douille *bushing Summit 800 Ho.
5
293370037
Anneau Retenue *circlip Summit 800 Ho.
6
417222671
Levier Ass. *lever-assy Includes 6 - 7. Summit 800 Ho.
7
417004305
Douille *bushing Summit 800 Ho.
8
417222947
Rouleau Ass. *roller-ass. Summit 800 Ho.
9
417004302
Rondelle Butee *washer-stopper Summit 800 Ho.
10
417222477
Goupille *threaded Pin 800 Ho Summit 800 Ho.
417222594
Goupille *pin 800 Ho (europe) Summit 800 Ho.
11
206262099
Screw-set Socket Din.913 800 Ho Summit 800 Ho.
12
293800060
Loctite 243 *loctite-243 800 Ho Summit 800 Ho.
13
732958001
Goupille Fendue*pin-cotter Summit 800 Ho.
14
417222028
Vis Ass. *srew-ass. Summit 800 Ho.
15
232561414
Nut-stop Elastic Din.985 Summit 800 Ho.
16
417222312
Siege Ressort *seat-spring Summit 800 Ho.
17
415015300
Ressort *spring Summit 800 Ho.
18
417007500
Couvercle *spring Cover Includes 18 - 19. Summit 800 Ho.
19
417009204
Douille *bushing Summit 800 Ho.
20
205084044
Screw-socket Hd.din.912 Summit 800 Ho.
21
250200009
Ribbed Lock Washer 8mm Bn791 Summit 800 Ho.
22
417222213
Cuvette *governor Cup Summit 800 Ho.
23
417222548
Rampe 415 *ramp-415 Summit 800 Ho.
24
250400009
Goupille Ress. *pin-rolled Summit 800 Ho.
25
250000059
Screw-hex.flange M6 X 18 Summit 800 Ho.
26
417005500
Vis Calibration*screw-calib. Summit 800 Ho.
27
417005600
Rondelle *washer Summit 800 Ho.
28
233061414
Nut-flange Hexagonal Din.6927 Summit 800 Ho.
29
417005700
Ressort *spring Summit 800 Ho.
30
732401030
Joint Torique *o-ring Summit 800 Ho.
31
417223021
Glissiere *shoe-slider Summit 800 Ho.
32
417009205
Protecteur *guard Summit 800 Ho.
33
250200006
Washer-spring Conical Summit 800 Ho.
34
417120000
Boulon *bolt-pulley Drive Summit 800 Ho.
35
417300166
Courroie *belt-drive Summit 800 Ho.
36
413703100
Loctite 609 *loctite-609 Summit 800 Ho.
22
417223197
Vis Calibration*screw-calib. Summit 800 Ho.
22
417223238
Cuvette *governor Cup Summit 800 Ho.
35
417300383
Courroie *drive Belt Summit 800 Ho.
