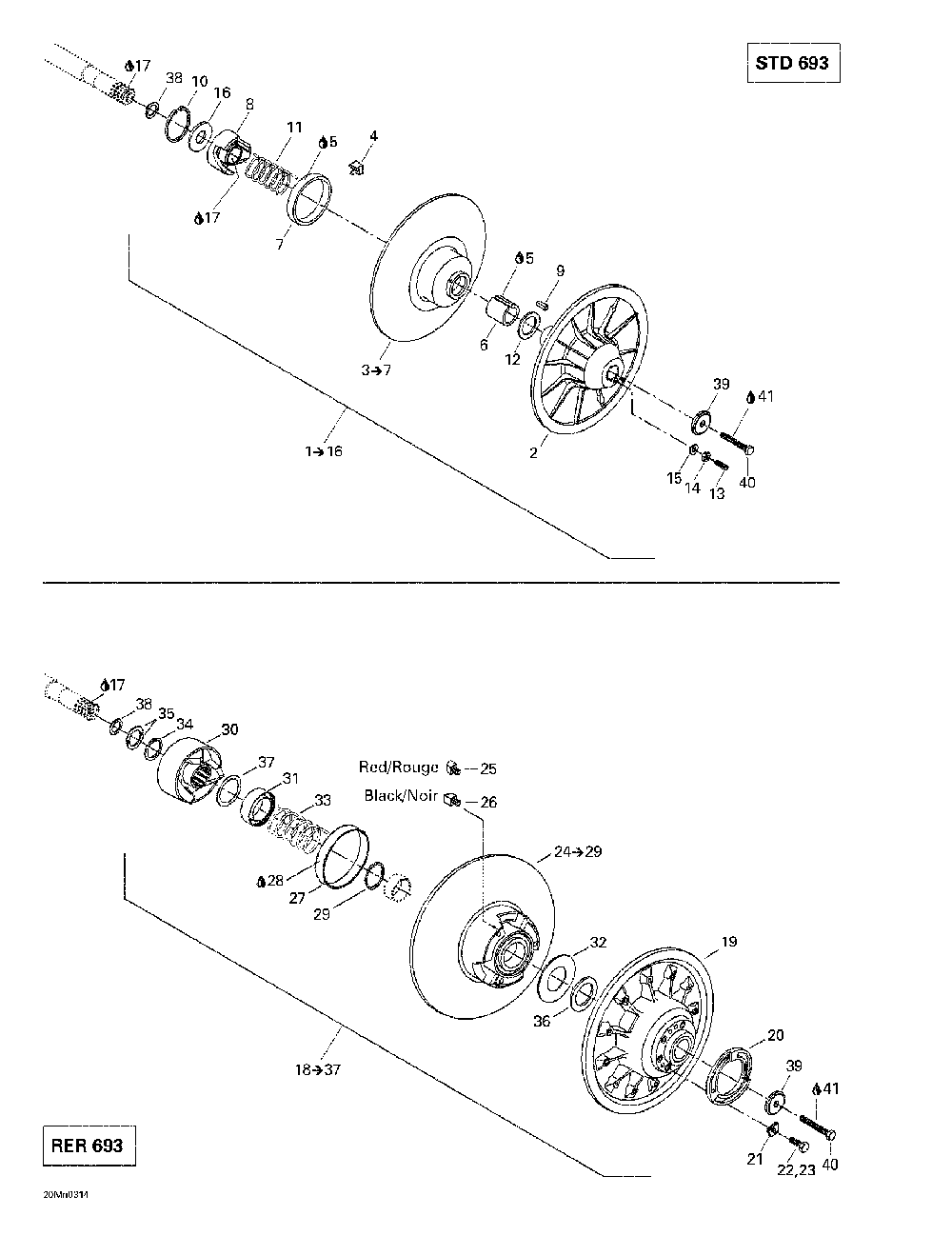

05- driven pulley (693)

Ski-Doo (Bombardier) Summit 600 HO/700/800 HO
Ski-Doo (Bombardier)
#oem кодцена
2
417126663
Flasque Fixe Us*fixed Flange Mach Summit 700.
3
417126486
Flasque Coul.as*flange-slid.as Includes 3 - 7. Summit 700.
4
414918000
Glissiere Came *shoe-cam Slid. Summit 700.
5
413703100
Loctite 609 *loctite-609 Summit 700.
6
415011200
Douille *bushing Summit 700.
7
414876600
Coussinet Garl.*bushing-garlock Summit 700.
8
417126337
Came Usine 47 *cam-mach.47 Summit 700.
9
414820800
Clavette *key Summit 700.
10
371903100
Circlip *circlip Summit 700.
11
414558900
Ressort Rappel *spring-release Summit 700.
12
504141900
Rondelle Appuie*washer-thrust Summit 700.
13
206263044
Screw-set Socket Din.913 Summit 700.
14
232061414
Nut-hexagonal Din.934 Summit 700.
15
420245370
Шайба
16
504141800
Шайба
17
293800070
Loct.anti Grip.*loct-antiseize Summit 700.
19
417126527
Flasque Fixe As*flange-fix.assy Summit 700.
20
415005800
Bague Ajustem. *ring-adjust. Summit 700.
21
415005900
Cale De Reglage*shim-adjust. Summit 700.
22
207162544
Screw-hex.cap Din.933 Summit 700.
23
207162244
Screw-hex.cap Din.933 Summit 700.
24
417126318
Flasque Coul.as*flange-slid.as Includes 24 - 29. Summit 700.
25
417126373
Gliss.came Arr.*shoe-cam Slide Rear Summit 700.
26
417126374
Gliss. Came Av.*shoe-cam Slide Front Summit 700.
27
417126902
Coussinet *coussinet Summit 700.
29
371911200
Anneau Retenue *circlip Summit 700.
30
417126445
Came Assemblee *cam-ass. Rer 700 Adrenaline. Rer 700 X. Rer 700 Highmark Summit 700.
31
417126381
Protecteur *guard Summit 700.
32
504099600
Rondelle Butee *washer-stopper Summit 700.
33
414978300
Ressort Rappel *spring-release Summit 700.
34
417126375
Entretoise *spacer Summit 700.
35
371911000
Demi-cle *key-half Summit 700.
36
504112300
Cale Epaisseur *shim Summit 700.
37
417126322
Butee Pivotante*swivel-abutment Summit 700.
38
504149100
Entretoise *spacer Summit 700.
39
517302322
Rondelle Force *washer-strength Summit 700.
40
207087544
Screw-hex.cap Din.931 Summit 700.
41
293800060
Loctite 243 *loctite-243 Summit 700.
