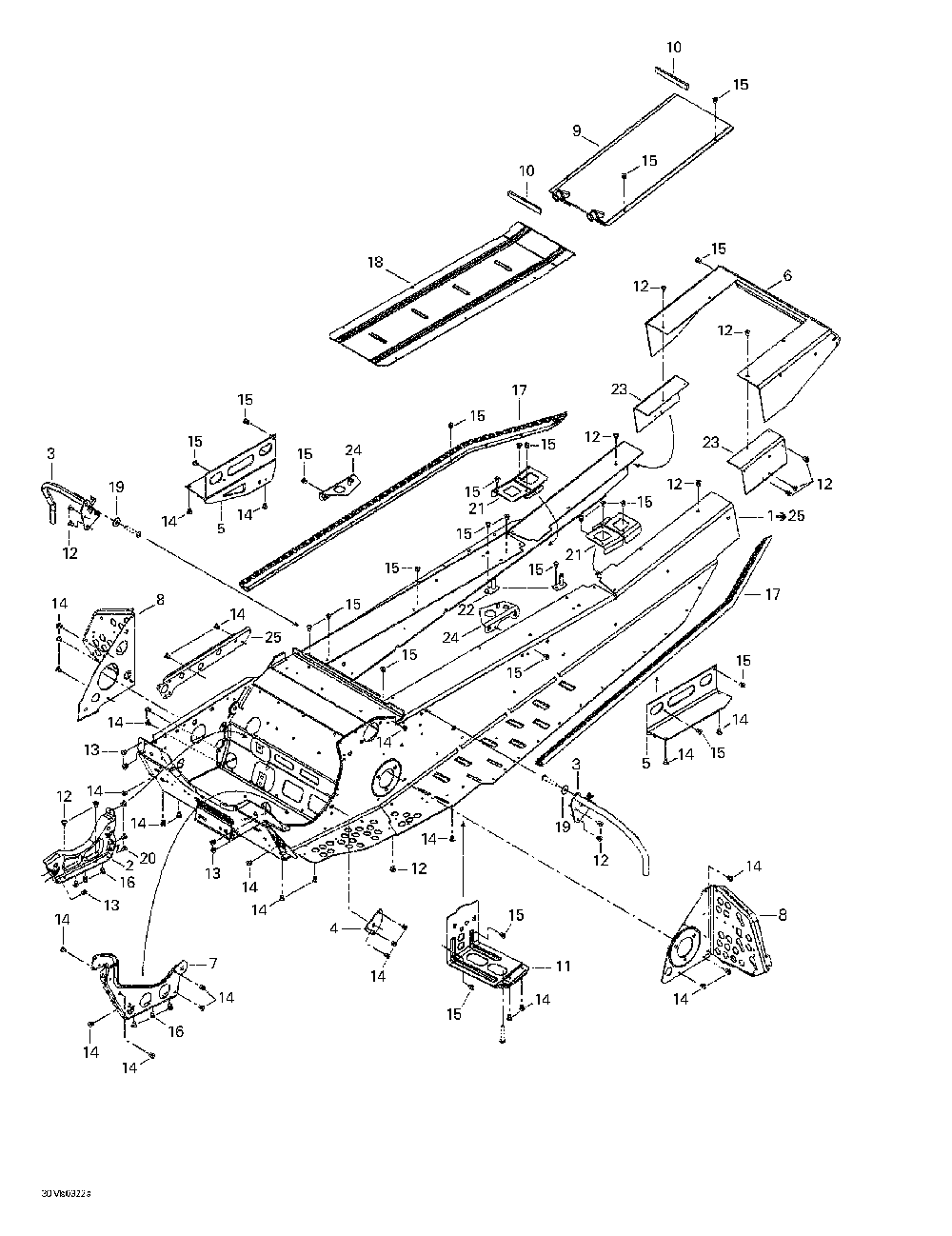

Рама

Ski-Doo (Bombardier) Summit X 800 HO
Ski-Doo (Bombardier)
#oem кодцена
1
415128561
Chassis *frame Service Includes 1 - 25.
2
518323346
Supp.moteur *engine Support
3
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
4
518323507
Renfort Ext. *reinf. Outer
5
518324419
Attache Droite *rh.bracket
518324420
Кронштейн левый
6
518323803
Capuchon *rear Cap
7
518323241
Renfort Int. *inner Reinforcement
8
518323805
Renfort Droit *rh.footrest
518324527
Renfort Gauche *reinforcement
9
518323720
Радиатор
10
293200003
Joint Etanche *seal-tray
11
518323525
Marche-pied Dr.*footrest-rh
518323527
Marche-pied Ga.*footrest-lh
12
390909200
Заклепка
13
390909100
Заклепка
14
390402200
Заклепка 3/16
15
390402400
Заклепка 3/16
16
390910300
Rivet Henrob *rivet-henrob
17
518324957
Rouleau Droit *rh.roller
518324958
Rouleau Gauche *lh.roller
18
518323531
Plaque Centrale*center Plate
19
234082410
Шайба
20
293150096
Заклепка
21
518323919
Renf.tunnel Dr.*reinf-frame Rh
518324432
Renf.tunnel Ga.*reinf-frame Lh
22
518322791
Att.reserv.so. *brkt-tank Weld
23
518323598
Renf.arriere Dr*r.h.rear Plate
518323599
Renf.arriere Ga*l.h.rear Plate
24
518323336
Renfort Tunnel *frame Form. Reinf.
518323337
Renfort Tunnel *frame Form. Reinf.
25
518323328
Raidisseur *stiffener
518325287
Кронштейн левый
518324386
Renfort Tunnel *frame Form. Reinf.
5
518325286
Attache Droite *rh.bracket
