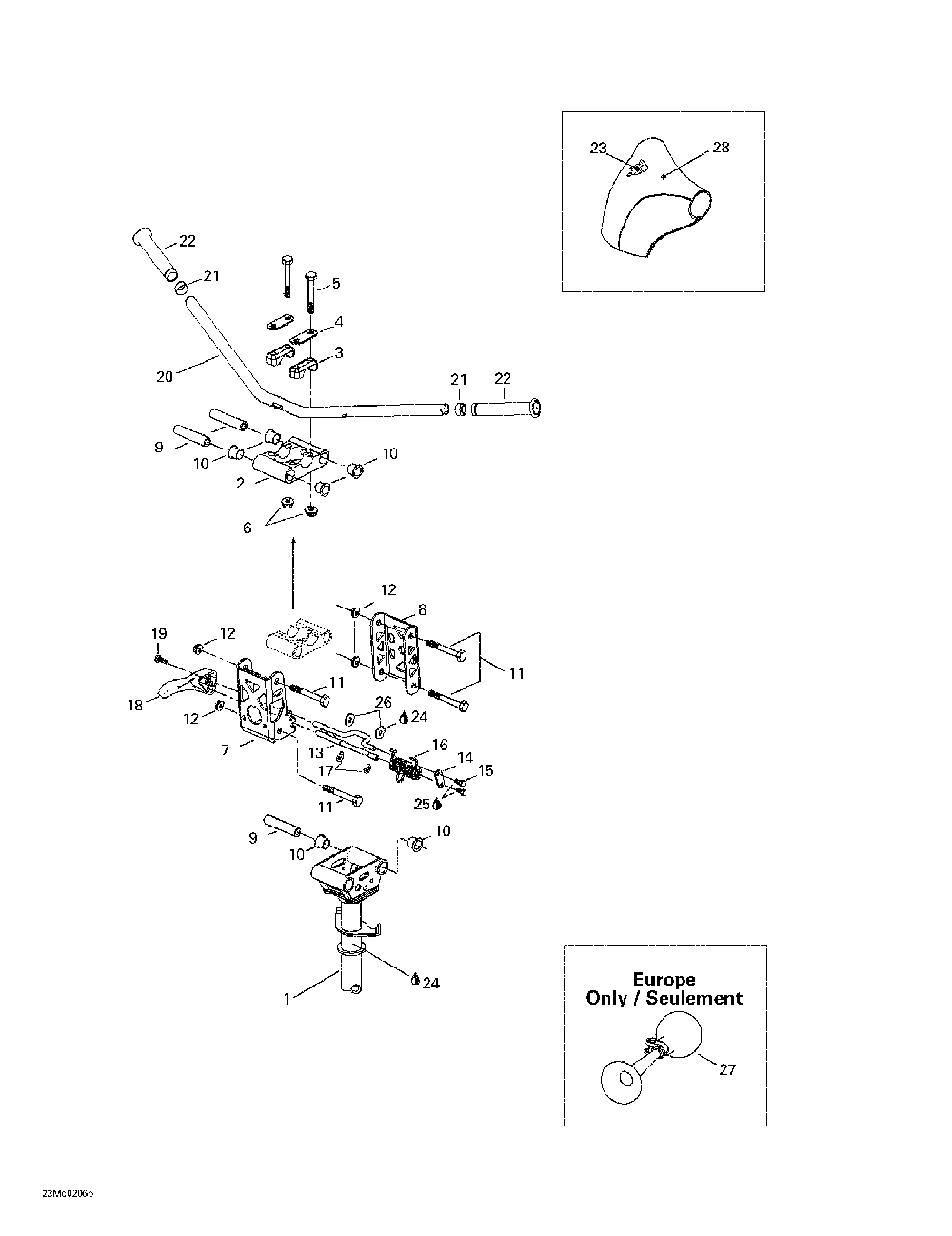

Руль

Ski-Doo (Bombardier) Legend 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
506151429
Arbre Dir.peint*tube-main Paint Legend 600. Legend 800.
2
506151147
Bride Usinee *clamp-mach. Legend 600. Legend 800.
3
506151622
Support Guidon *steering Support Legend 600. Legend 800.
4
506151196
Renfort *reiforcement Legend 600. Legend 800.
5
207086044
Screw-hex.cap Din.931 Legend 600. Legend 800.
6
233281414
Nut-flange Elastic Din.6926 Legend 600. Legend 800.
7
506151156
Bras Avant *arm-front Legend 600. Legend 800.
8
506151152
Bras Arriere *arm-rear Legend 600. Legend 800.
9
506151146
Entretoise *spacer Legend 600. Legend 800.
10
506151153
Coussinet *cushion Legend 600. Legend 800.
11
207688044
Screw-hex.flange Din.6921 Legend 600. Legend 800.
13
506151162
Barrure Soudee *lock-weld. Legend 600. Legend 800.
14
506151240
Plaque *plate Legend 600. Legend 800.
15
207141044
Screw-hex.cap Din.933 Legend 600. Legend 800.
16
506151219
Ressort *spring Legend 600. Legend 800.
17
414274500
Circlip-black Chromate Legend 600. Legend 800.
18
506151188
Manette *handle Legend 600. Legend 800.
19
205041284
Screw-socket Hd.din.912 Gm6174m Legend 600. Legend 800.
20
506151440
Guidon Peint *bar-handle Paint Legend 600. Legend 800.
21
572081900
Bout De Guidon *end-bar Handle Legend 600. Legend 800.
22
572100500
Gaine Poignee *grip-handle Legend 600. Legend 800.
23
506151445
Mousse *foam Legend 600. Legend 800.
24
293550033
Synthetic Grease 10x14oz Legend 600. Legend 800.
25
293800060
Loctite 243 *loctite-243 Legend 600. Legend 800.
26
517302265
Rondelle *washer Legend 600. Legend 800.
27
549011291
Avertisseur *horn Legend 600. Legend 800.
28
506151494
Housse Coussin.*cover-padding Legend 600. Legend 800.
