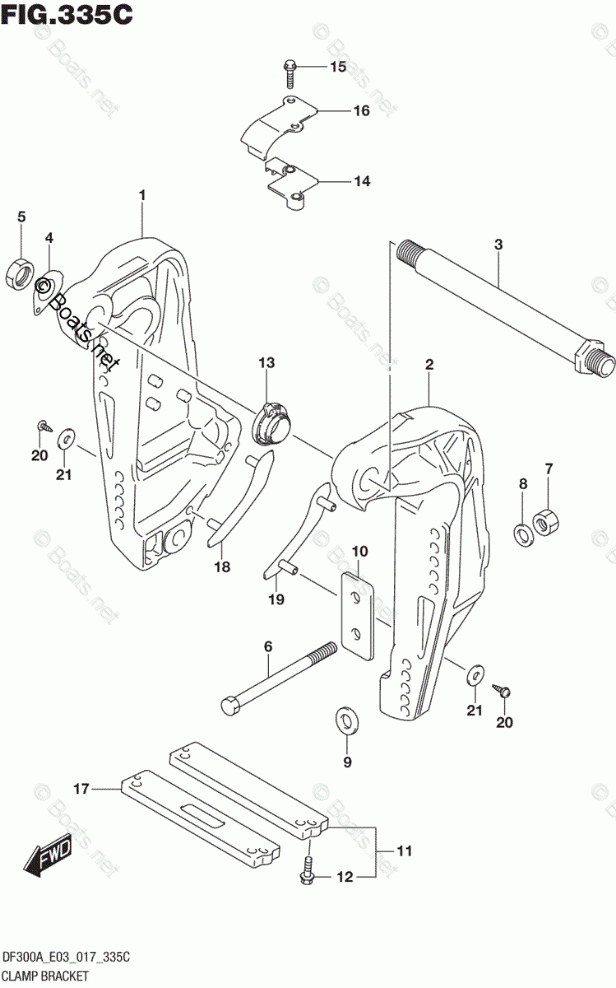

Clamp Bracket (L) (DF300A E03)

Suzuki Marine DF 300APX2
Suzuki Marine
#oem кодцена
1-1
41111-96J40-YAY
BRACKET, CLAMP STBD (BLACK)
1-2
41111-96J40-Y5S
BRACKET, CLAMP STBD (WHITE)
2-1
41121-96J30-YAY
BRACKET, CLAMP PORT (BLACK)
2-2
41121-96J30-Y5S
BRACKET, CLAMP PORT (WHITE)
3
41130-92J03
SHAFT, CLAMP BRKT
4
41135-92J00
WASHER, CLAMP BRACKET SHAFT
5
09159-22006
NUT
6-2
09100-12085
BOLT (12.7X115) *{OPT}*
6-1
09100-12086
BOLT (12.7X150)
6-3
09100-12092
BOLT (12.7X75) *{OPT}*
7
09159-12062
NUT
8
09160-13021
WASHER (13.2X26X3)
9
09160-13022
WASHER (13.2X45X3)
10
41155-93J02
PLATE, TRANSOM
11
55320-94900
ZINC SET, PROTECTION
12
09116-06121
BOLT (6X25)
13
48140-93J01
CAM, TILT LIMIT SWITCH
14
48144-93J00
HOLDER, TILT LIMIT SWITCH
15
09103-06278
BOLT (6X25)
16
48145-93J00
COVER, TILT LIMIT SWITCH
17
55321-94910
ANODE (MAGNESIUM) *{OPT}*
18
41117-93L00
PLATE, CLAMP BRACKET LWR STBD
19
41122-93L00
PLATE, CLAMP BRACKET LWR PORT
20
03542-0516C
SCREW
21
09160-05053
WASHER
