Clutch Shaft (DF300A E03) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 300APX2 (2017)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2017
DF 300APX2

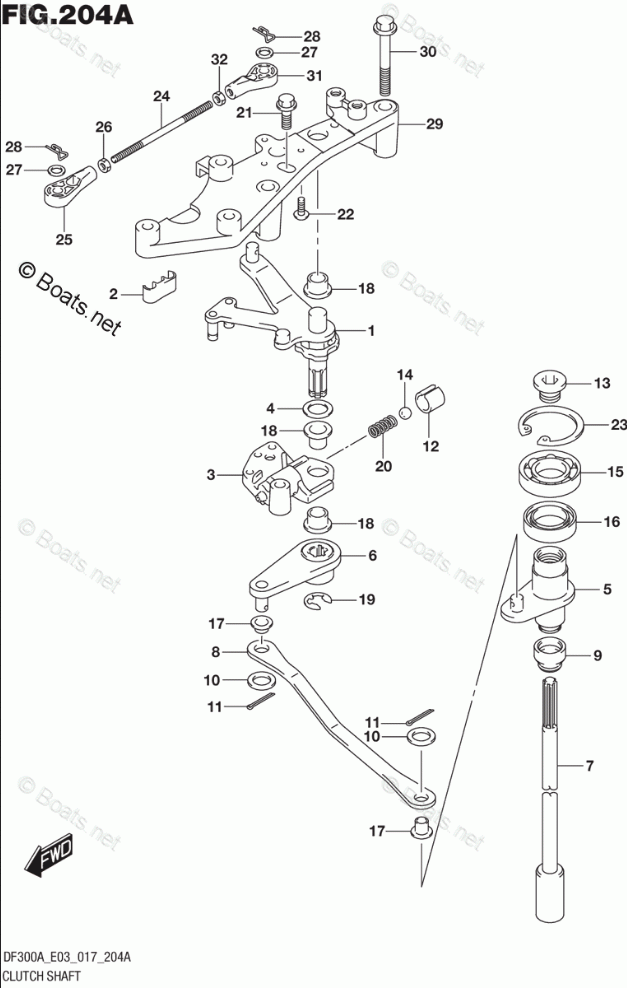

Clutch Shaft (DF300A E03)
Clutch Shaft (DF300A E03)

Clutch Shaft (DF300A E03)

Suzuki Marine DF 300APX2

oem код

название

цена

LEVER, CLUTCH

BUSH, CLUTCH LEVER

HOLDER, CLUTCH LEVER

WASHER (10X20X3)

SHAFT, CLUTCH

ARM, CLUTCH SHAFT

7-1

23111-93J10

ROD, CLUTCH (L) *{W/TRANSOM(L)}*

7-2

23111-93J00

ROD, CLUTCH *{W/TRANSOM(X) W/TRANSOM(XX)}*

LINK, CLUTCH LEVER

COVER, CLUTCH ROD

WASHER (6.5X15X1.0)

SPRING PIN (10.2X10)

PLUG (12X9)

BALL

BEARING (17X35X8)

OIL SEAL (18X30X8)

BUSH

BUSH

E RING

SPRING

BOLT

SCREW

СТОПОРНОЕ КОЛЬЦО

LINK, CLUTCH LEVER NO.2

67467-89J01

CONNECTOR, REMOCON CABLE

NUT, REMOCON CABLE

WASHER (7X12X1)

CLIP

HOLDER, CLUTCH LEVER

BOLT

CONNECTOR, REMOCON CABLE NO.2

67471-99E10

NUT, REMOCON CABLE NO.2
