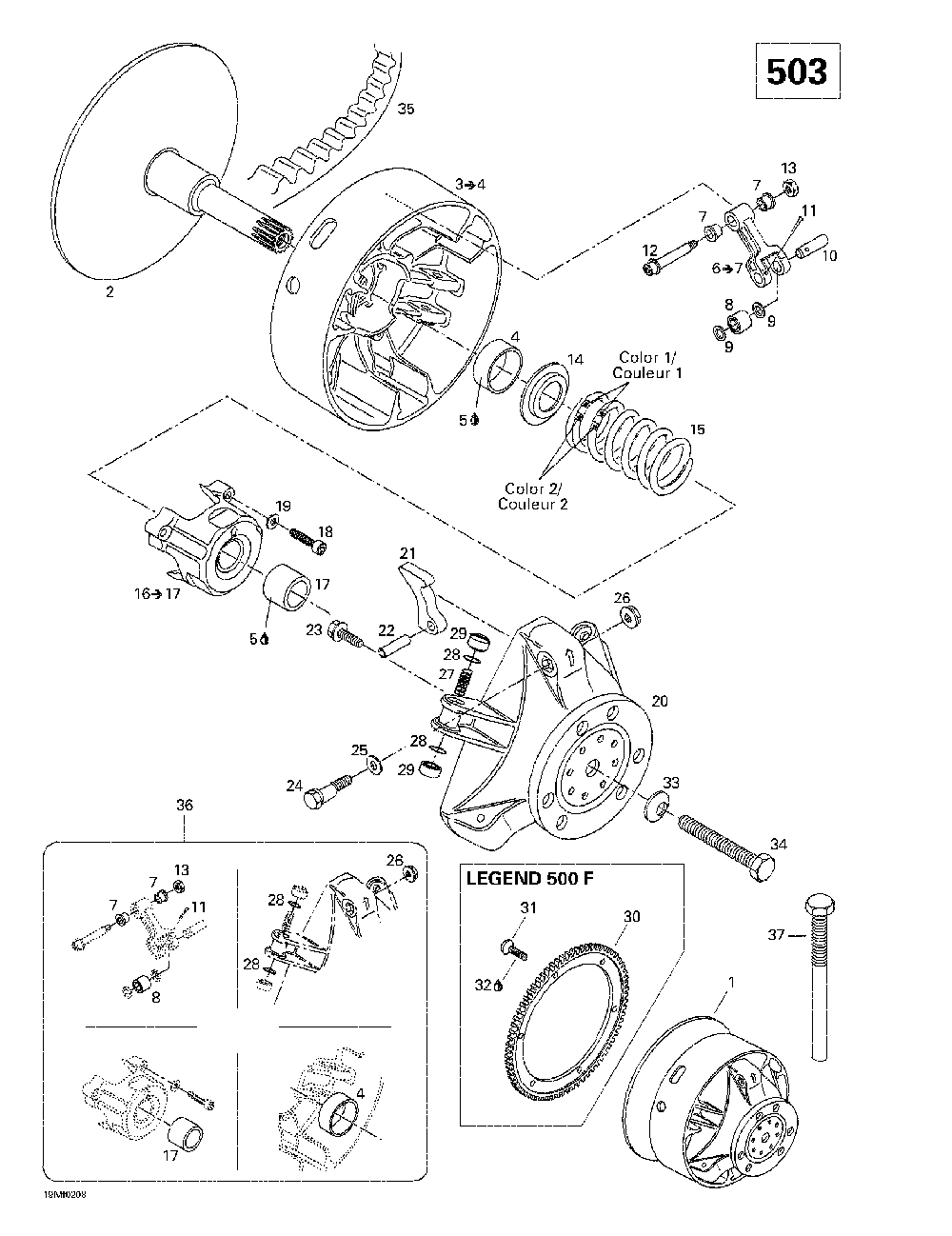

05- drive pulley (503)

Ski-Doo (Bombardier) MX Z 380 F/500 F
Ski-Doo (Bombardier)
#oem кодцена
2
417222412
Flasque Fixe Us*flange-fix.mac Mx Z 500 F. Legend 500 F.
3
417222241
Flasque Coul.as*flange-slid.as Includes 3 - 4. Mx Z 500 F. Legend 500 F.
4
417004201
Douille *bushing Mx Z 500 F. Legend 500 F.
5
413703100
Loctite 609 *loctite-609 Mx Z 500 F. Legend 500 F.
6
417222383
Levier Ass. *lever-assy Includes 6 - 7. Mx Z 500 F. Legend 500 F.
7
417004305
Douille *bushing Mx Z 500 F. Legend 500 F.
8
417222947
Rouleau Ass. *roller-ass. Mx Z 500 F. Legend 500 F.
9
417004302
Rondelle Butee *washer-stopper Mx Z 500 F. Legend 500 F.
10
417004309
Goupille *pin Mx Z 500 F. Legend 500 F.
11
732958001
Goupille Fendue*pin-cotter Mx Z 500 F. Legend 500 F.
12
417004800
Vis Assemble *screw-ass Y Mx Z 500 F. Legend 500 F.
13
232561414
Nut-stop Elastic Din.985 Mx Z 500 F. Legend 500 F.
14
417222044
Siege Ressort *seat-spring Mx Z 500 F. Legend 500 F.
15
414817500
Ressort Embra. *spring-clutch Mx Z 500 F.
415015200
Ressort *spring Legend 500 F.
16
417222304
Couvercle *spring Cover Includes 16 - 17. Mx Z 500 F. Legend 500 F.
17
417004501
Douille *bushing Mx Z 500 F. Legend 500 F.
19
420245370
Rondelle *washer Mx Z 500 F. Legend 500 F.
20
417222081
Cuvette Regul.a*govern.cup Assy. Mx Z 500 F. Legend 500 F.
21
417005296
Rampe 296 *ramp-296 Mx Z 500 F. Legend 500 F.
22
732804009
Pin-rolled Din.1481 M8 X 24 Mx Z 500 F. Legend 500 F.
23
210361890
Screw-forming Hex.hd.black Oxide Mx Z 500 F. Legend 500 F.
24
417005500
Vis Calibration*screw-calib. Mx Z 500 F. Legend 500 F.
25
417005600
Rondelle *washer Mx Z 500 F. Legend 500 F.
26
233061414
Nut-flange Hexagonal Din.6927 Mx Z 500 F. Legend 500 F.
27
417005700
Ressort *spring Mx Z 500 F. Legend 500 F.
28
732401030
Joint Torique *o-ring Mx Z 500 F. Legend 500 F.
29
417223021
Glissiere *shoe-slider Mx Z 500 F. Legend 500 F.
30
417300305
Cour.lancement *gear-ring Legend 500 F.
31
236281684
Screw-forming Bn.hd.torx Legend 500 F.
32
293800005
Loctite 271 *loctite-271 Legend 500 F.
34
417113800
Boulon *bolt-pulley Drive Mx Z 500 F. Legend 500 F.
35
415060600
Courroie *belt-drive Mx Z 500 F. Legend 500 F.
36
417006100
Ens.rep.emb. *kit-clutch Rep Mx Z 500 F. Legend 500 F.
37
529007900
Extrac.poulie *puller-drive Mx Z 500 F. Legend 500 F.
