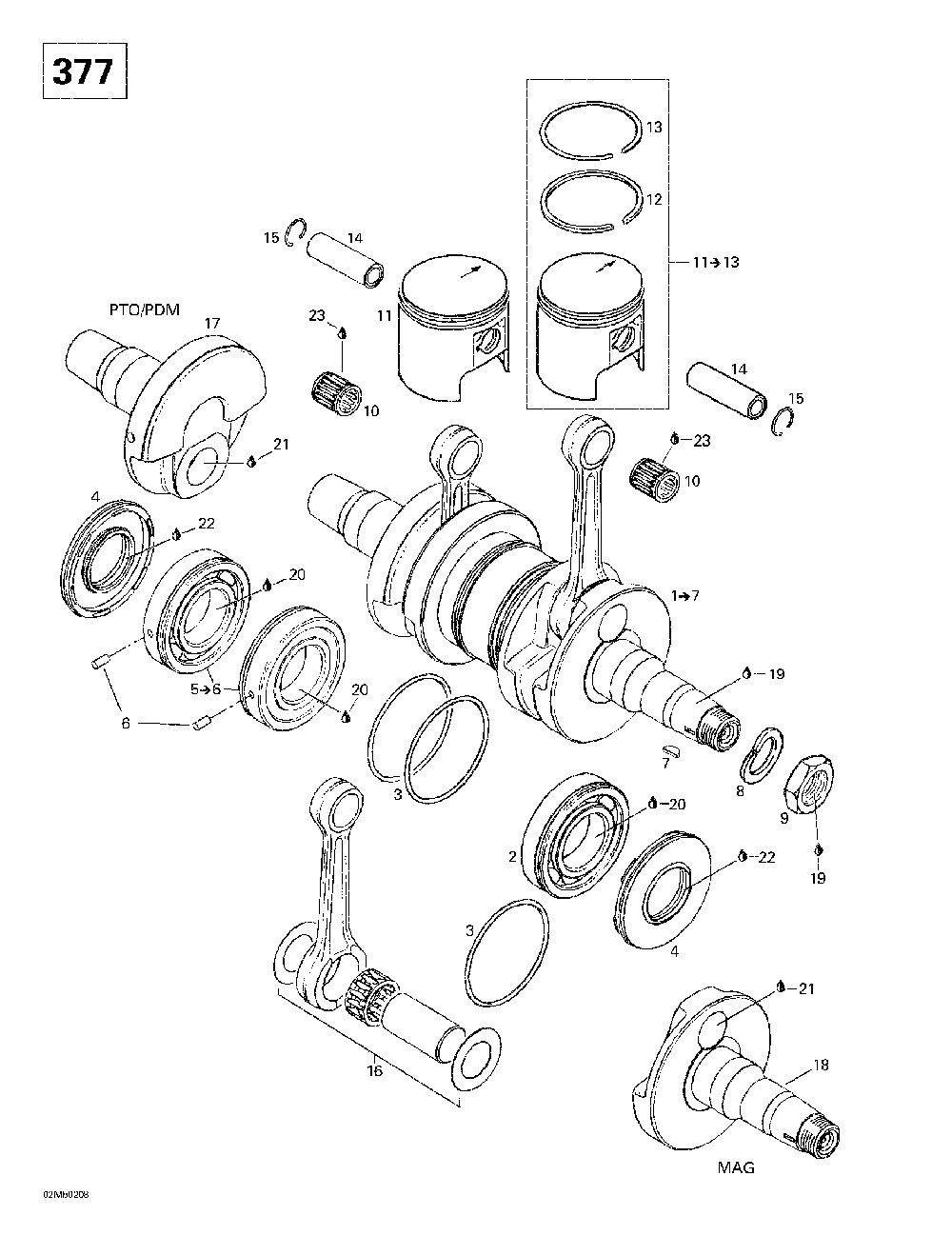

01- crankshaft (377)

Ski-Doo (Bombardier) MX Z 380 F/500 F
Ski-Doo (Bombardier)
#oem кодцена
1
420889630
Vilebrequin *crankshaft Includes 1 - 7. Mx Z 380 F. Legend 380 F.
2
420832570
Roulement Bille*ball Bearing Mx Z 380 F. Legend 380 F.
3
293300022
Joint Torique *o-ring Mx Z 380 F. Legend 380 F.
4
420831952
Anneau Etanche *seal-oil Mx Z 380 F. Legend 380 F.
5
420832574
Roulement Bille*ball Bearing Includes 5 - 6. Mx Z 380 F. Legend 380 F.
6
420929972
Goupille Ressor*pin-roll Mx Z 380 F. Legend 380 F.
7
420246055
Clavette *key-woodruff Mx Z 380 F. Legend 380 F.
8
420945759
Rondelle-frein *washer-lock 22 Mx Z 380 F. Legend 380 F.
9
420842234
Nut-hex.m22 X 1, 5 Mx Z 380 F. Legend 380 F.
10
420932904
Roul.aiguille *needle Bearing Mx Z 380 F. Legend 380 F.
11
420890060
Piston 61.93 *piston 61.93 Includes 11 - 13. Mx Z 380 F. Legend 380 F.
420890061
Piston 62.18 *piston 62.18 Mx Z 380 F. Legend 380 F.
420890062
Piston 62.43 *piston 62.43 Mx Z 380 F. Legend 380 F.
12
420915895
Segment R 62.00*ring-r 62.00 Mx Z 380 F. Legend 380 F.
420915896
Segment R 62.25*ring-r 62.25 Mx Z 380 F. Legend 380 F.
420915897
Segment R 62.5 *ring-r 62.5 Mx Z 380 F. Legend 380 F.
13
420215215
Segment Semi-tr*ring-semi Trap Mx Z 380 F. Legend 380 F.
420215216
Segment Semi-tr*ring-semi Trap Mx Z 380 F. Legend 380 F.
420215217
Segment Semi-tr*ring-semi Trap Mx Z 380 F. Legend 380 F.
14
420916260
Axe De Piston *pin-gudgeon Mx Z 380 F. Legend 380 F.
15
420945735
Circlip Piston *circlip-piston Mx Z 380 F. Legend 380 F.
16
420889634
Ens.tige Rep. *kit-rod Repair Mx Z 380 F. Legend 380 F.
17
420818204
Vilebrequin Pto*crankshaft-pto Mx Z 380 F. Legend 380 F.
18
420819010
Demi-vileb.mag.*half-crank Mag Mx Z 380 F. Legend 380 F.
19
293800060
Loctite 243 *loctite-243 Mx Z 380 F. Legend 380 F.
20
293800070
Loct.anti Grip.*loct-antiseize Mx Z 380 F. Legend 380 F.
21
413711400
Loctite 648 *loctite-648 Mx Z 380 F. Legend 380 F.
22
413707000
Dow Corning 111*dow Corning 111 Mx Z 380 F. Legend 380 F.
23
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Mx Z 380 F. Legend 380 F.
