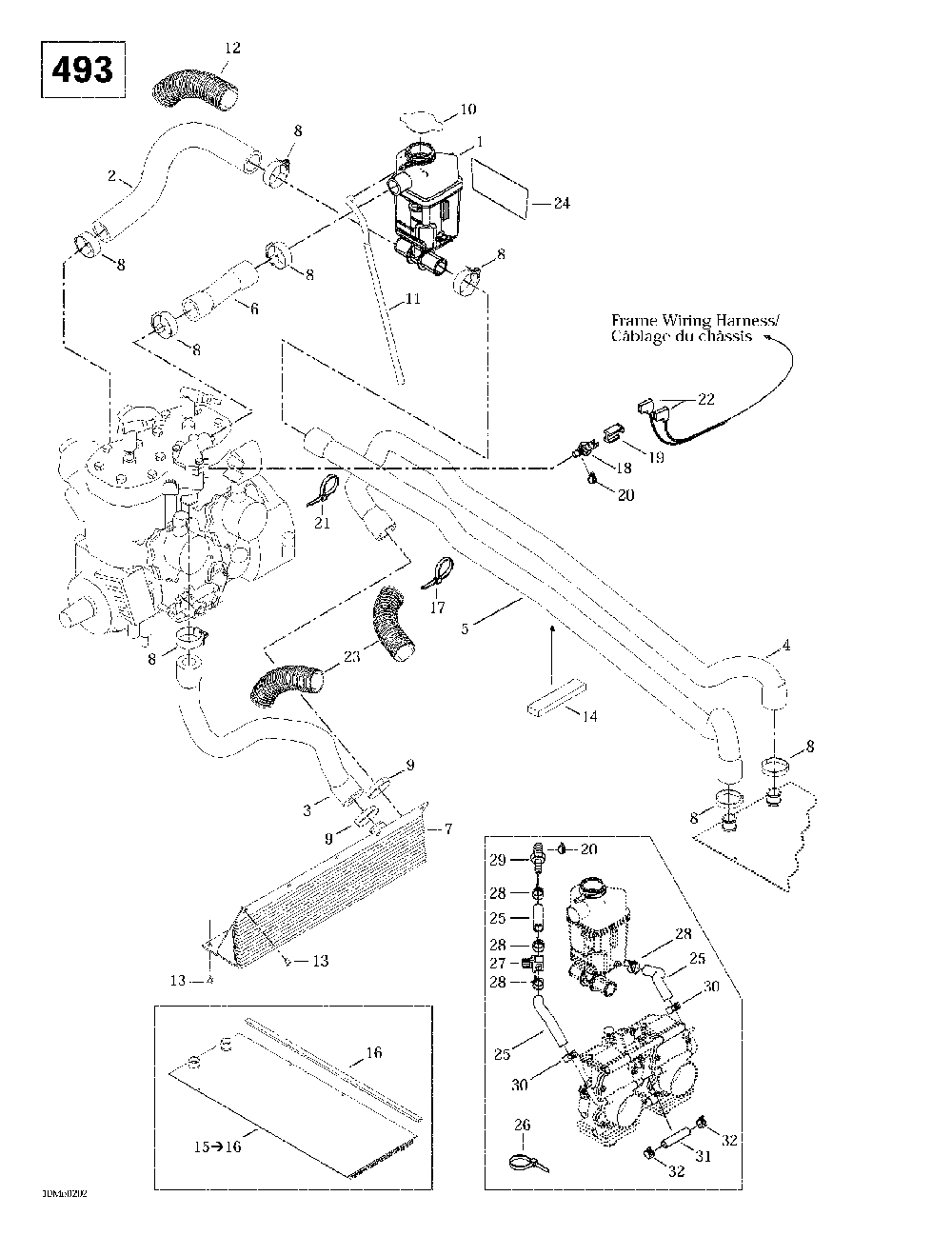

Система охлаждения

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
509000134
Res.antigel *tank-coolant Mx Z 500.
2
509000135
Boyau Entre Mot*hose-inlet Eng Mx Z 500.
3
509000046
Boyau Sort.mot.*hose-out.eng. Mx Z 500.
4
509000003
Boyau Inter Rad*hose-radiator Mx Z 500.
5
509000004
Boyau Sort.rad.*hose-out.rad. Mx Z 500.
6
509000112
Boyau *hose Mx Z 500.
7
517297100
Radiateur Av.s.*rad.-front Weld. Mx Z 500.
8
408800400
Clamp-gear Mx Z 500.
9
509000045
Bride Serrage *clamp-gear Mx Z 500.
10
509000187
Bouchon Radiat.*pressure Cap Mx Z 500.
11
415110000
Boyau Polyure *hose-polyurethane Mx Z 500.
12
415084700
Gaine *protector Tube Mx Z 500.
13
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500.
14
293200003
Joint Etanche *seal-tray Mx Z 500.
15
518322901
Radiateur Arr.s*rad.-rear Weld. Includes 15 - 16. Mx Z 500.
16
415012300
Protecteur *protector Mx Z 500.
17
293750008
Tie Rap 350mm *tie-rap 350mm Mx Z 500.
18
512047000
Capteur Temp. *sensor-temp. Mx Z 500.
19
515175297
Tampon Connect.*plug-connector Mx Z 500.
20
293800018
Scellant Tuyau *sealant-pipe Mx Z 500.
21
293750002
Tie Rap 142mm *tie-rap 142mm Mx Z 500.
22
409010300
Cosse Femelle *terminal-femal. Mx Z 500.
23
409902200
Gaine 25mm *tubing-25mm Mx Z 500.
24
514053399
Pare Chaleur *heat Shield Mx Z 500.
25
509000093
Boyau 8mm *hose-8mm Mx Z 500.
26
414115200
Tie-rap 180 Mm Mx Z 500.
27
512059324
Soupape 5/16" *valve-5/16" Mx Z 500.
28
414655700
Bride A Ressort*clamp-spring Mx Z 500.
29
293710082
Raccord Droit *fitting-straight Mx Z 500.
30
293650170
Bride Serrage *hose Clamp Mx Z 500.
31
404161956
Durite *hose Mx Z 500.
32
404161957
Clip *clip Mx Z 500.
