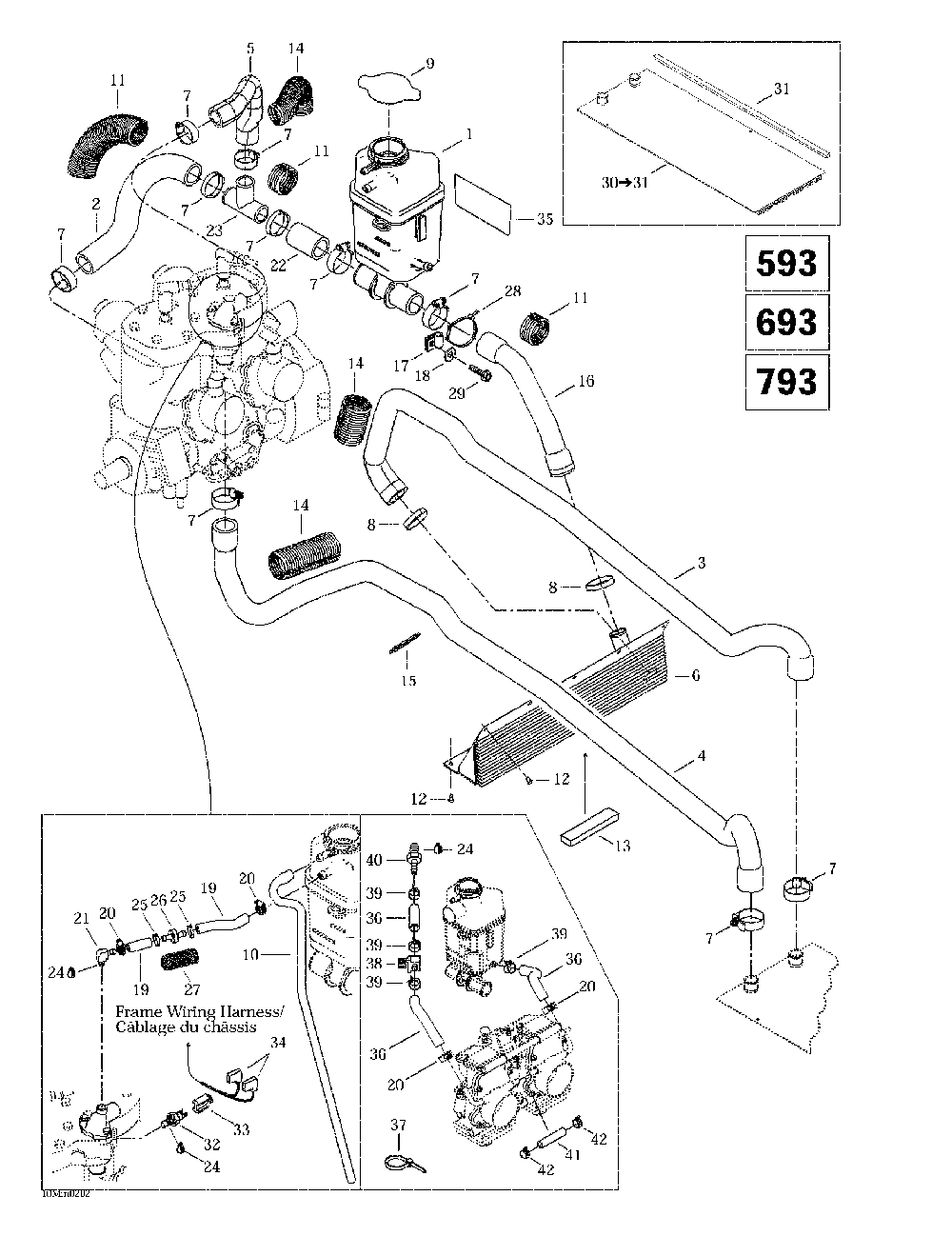

Система охлаждения (593)

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
509000167
Res.antigel *tank-coolant Mx Z 600. Mx Z 700. Mx Z 800.
2
509000141
Boyau Entre Mot*hose-inlet Eng Mx Z 600. Mx Z 700. Mx Z 800.
3
509000003
Boyau Inter Rad*hose-radiator Mx Z 600. Mx Z 700. Mx Z 800.
4
509000145
Boyau Sortie .*hose-outer Mx Z 600. Mx Z 700. Mx Z 800.
5
509000142
Boyau *hose Mx Z 600. Mx Z 700. Mx Z 800.
6
509000146
Radiateur Av.s.*rad.-front Weld. Mx Z 600. Mx Z 700. Mx Z 800.
509000150
Radiateur Av. S*rad.-front Weld. (renegade) Mx Z 600. Mx Z 700. Mx Z 800.
7
408800400
Clamp-gear Mx Z 600. Mx Z 700. Mx Z 800.
8
509000045
Bride Serrage *clamp-gear Mx Z 600. Mx Z 700. Mx Z 800.
9
509000187
Bouchon Radiat.*pressure Cap Mx Z 600. Mx Z 700. Mx Z 800.
10
415110000
Boyau Polyure *hose-polyurethane Mx Z 600. Mx Z 700. Mx Z 800.
11
415084700
Gaine *protector Tube Mx Z 600. Mx Z 700. Mx Z 800.
12
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 600. Mx Z 700. Mx Z 800.
13
293200003
Joint Etanche *seal-tray Mx Z 600. Mx Z 700. Mx Z 800.
14
409902200
Gaine 25mm *tubing-25mm Mx Z 600. Mx Z 700. Mx Z 800.
15
293750008
Tie Rap 350mm *tie-rap 350mm Mx Z 600. Mx Z 700. Mx Z 800.
16
509000144
Boyau Sort.rad.*hose-out.rad. Mx Z 600. Mx Z 700. Mx Z 800.
17
415052400
Attache Collier*open Clamp Mx Z 600. Mx Z 700. Mx Z 800.
18
391301600
Rondelle *washer Mx Z 600. Mx Z 700. Mx Z 800.
19
509000093
Boyau 8mm *hose-8mm Mx Z 600. Mx Z 700. Mx Z 800.
20
293650170
Bride Serrage *hose Clamp Mx Z 600. Mx Z 700. Mx Z 800.
21
293700020
Raccord Coude90*fitting-elbow Mx Z 600. Mx Z 700. Mx Z 800.
22
509000143
Boyau *hose Mx Z 600. Mx Z 700. Mx Z 800.
23
414619900
Raccord En T *fitting-t Mx Z 600. Mx Z 700. Mx Z 800.
24
293800018
Scellant Tuyau *sealant-pipe Mx Z 600. Mx Z 700. Mx Z 800.
25
293650053
Bride Serrage *clamp-oetiker Mx Z 600. Mx Z 700. Mx Z 800.
26
509000153
Soupape Retenue*valve-check Mx Z 600. Mx Z 700. Mx Z 800.
27
415080000
Gaine *protector Tube Mx Z 600. Mx Z 700. Mx Z 800.
28
509000165
Tie Rap *tie-rap Mx Z 600. Mx Z 700. Mx Z 800.
29
210252040
Screw-forming Hex.hd.fl.din.7500d Mx Z 600. Mx Z 700. Mx Z 800.
30
518322901
Radiateur Arr.s*rad.-rear Weld. Includes 30 - 31. Mx Z 600. Mx Z 700. Mx Z 800.
31
415012300
Protecteur *protector Mx Z 600. Mx Z 700. Mx Z 800.
32
512047000
Capteur Temp. *sensor-temp. Mx Z 600. Mx Z 700. Mx Z 800.
33
515175297
Tampon Connect.*plug-connector Mx Z 600. Mx Z 700. Mx Z 800.
34
409010300
Cosse Femelle *terminal-femal. Mx Z 600. Mx Z 700. Mx Z 800.
35
514053399
Pare Chaleur *heat Shield Mx Z 600. Mx Z 700. Mx Z 800.
37
414115200
Tie-rap 180 Mm Mx Z 600. Mx Z 700. Mx Z 800.
38
512059324
Soupape 5/16" *valve-5/16" Mx Z 600. Mx Z 700. Mx Z 800.
39
414655700
Bride A Ressort*clamp-spring Mx Z 600. Mx Z 700. Mx Z 800.
40
293710082
Raccord Droit *fitting-straight Mx Z 600. Mx Z 700. Mx Z 800.
41
404161956
Durite *hose Mx Z 600. Mx Z 700. Mx Z 800.
42
404161957
Clip *clip Mx Z 600. Mx Z 700. Mx Z 800.
