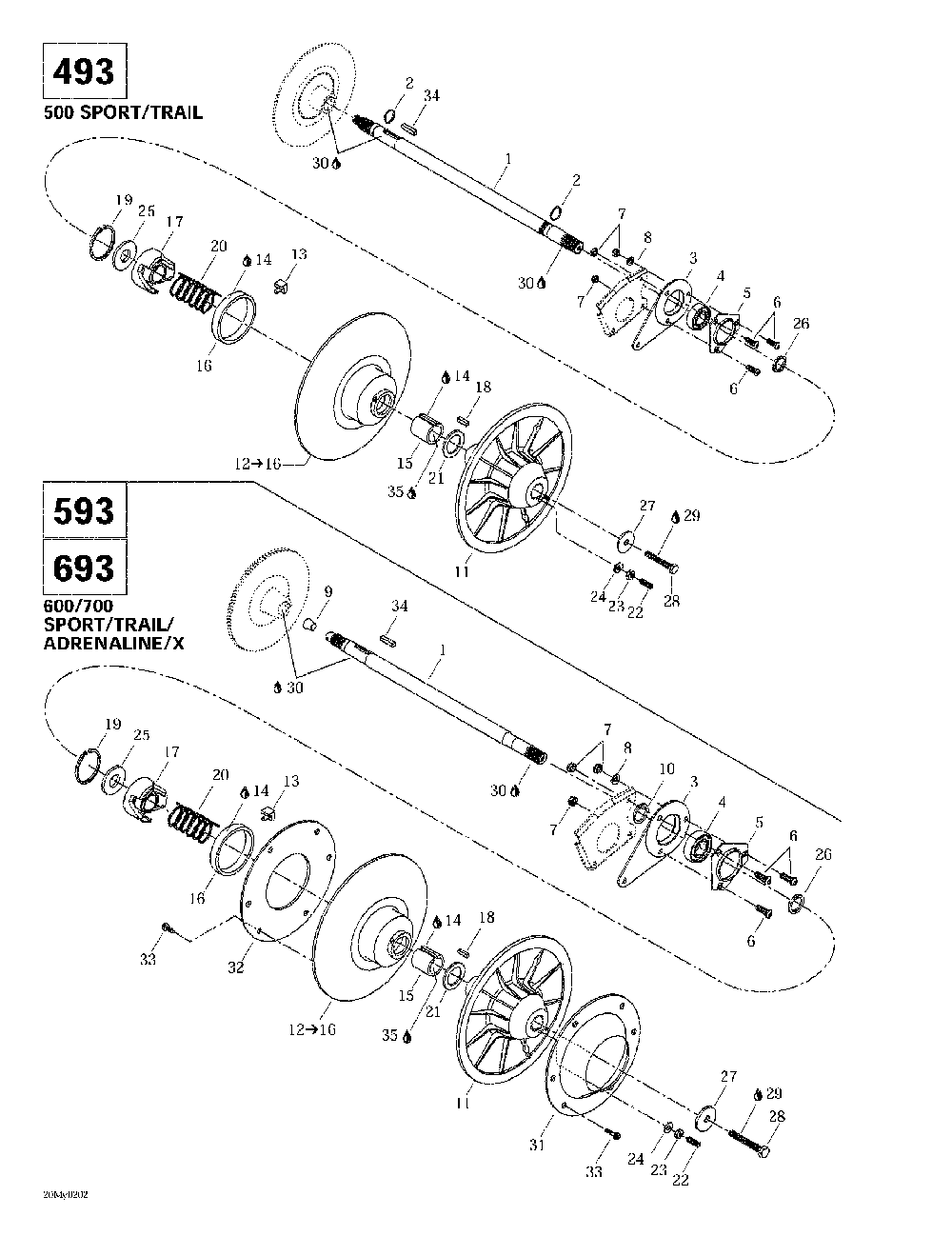

05- driven pulley (493)

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
504151858
Arbre Renvoi *shaft-counter Mx Z 500.
501026300
Arbre Renvoi *shaft-counter Mx Z 600. Mx Z 700.
2
371910000
Circlip *circlip Mx Z 500.
3
080044200
Entretoise *spacer Mx Z 500. Mx Z 600. Mx Z 700.
4
504152008
Roulement Bille*ball Bearing Mx Z 500.
504152535
Roulement Bille*ball Bearing Mx Z 600. Mx Z 700.
5
501025000
Flasque *flange Mx Z 500. Mx Z 600. Mx Z 700.
6
205482546
Screw-socket Bn.hd.iso.7380 Mx Z 500. Mx Z 600. Mx Z 700.
7
232581414
Nut-stop Elastic Din.985 Mx Z 500. Mx Z 600. Mx Z 700.
8
234081410
Washer-flat Din.125a Mx Z 500. Mx Z 600. Mx Z 700.
9
414784800
Bouchon Liege *cork Mx Z 600. Mx Z 700.
10
504149100
Entretoise *spacer Mx Z 600. Mx Z 700.
11
417126477
Flasque Fixe Us*flange-fix.mach Mx Z 500. Mx Z 600. Mx Z 700.
12
417126486
Flasque Coul.as*flange-slid.as Includes 12 - 16. Mx Z 500. Mx Z 600. Mx Z 700.
13
414918000
Glissiere Came *shoe-cam Slid. Mx Z 500. Mx Z 600. Mx Z 700.
14
413703100
Loctite 609 *loctite-609 Mx Z 500. Mx Z 600. Mx Z 700.
15
415011200
Douille *bushing Mx Z 500. Mx Z 600. Mx Z 700.
16
414876600
Coussinet Garl.*bushing-garlock Mx Z 500. Mx Z 600. Mx Z 700.
17
417126590
Came Usine 42 *cam-mach.42 Mx Z 500.
417126337
Came Usine 47 *cam-mach.47 Mx Z 600.
417126585
Came Usine *cam-mach. Mx Z 700.
18
414820800
Clavette *key Mx Z 500. Mx Z 600. Mx Z 700.
19
371903100
Circlip *circlip Mx Z 500. Mx Z 600. Mx Z 700.
20
414558900
Ressort Rappel *spring-release Mx Z 500. Mx Z 600. Mx Z 700.
21
504141900
Rondelle Appuie*washer-thrust Mx Z 500. Mx Z 600. Mx Z 700.
22
206263044
Screw-set Socket Din.913 Mx Z 500. Mx Z 600. Mx Z 700.
23
232061414
Nut-hexagonal Din.934 Mx Z 500. Mx Z 600. Mx Z 700.
24
420245370
Rondelle *washer Mx Z 500. Mx Z 600. Mx Z 700.
25
504141800
Rondelle *washer Mx Z 500. Mx Z 600. Mx Z 700.
27
517302322
Rondelle Force *washer-strength Mx Z 500. Mx Z 600. Mx Z 700.
28
207087544
Screw-hex.cap Din.931 Mx Z 500. Mx Z 600. Mx Z 700.
29
293800060
Loctite 243 *loctite-243 Mx Z 500. Mx Z 600. Mx Z 700.
30
293800070
Loct.anti Grip.*loct-antiseize Mx Z 500. Mx Z 600. Mx Z 700.
31
504142000
Coupole *cup Mx Z 600. Mx Z 700.
32
504142100
Cerceau *ring Mx Z 600. Mx Z 700.
33
210251180
Screw-forming Hex.hd.fl.gm6174m Mx Z 600. Mx Z 700.
34
507021300
Clavette *key Mx Z 500. Mx Z 600. Mx Z 700.
504152026
Roulement Bille*ball Bearing Mx Z 600. Mx Z 700.
