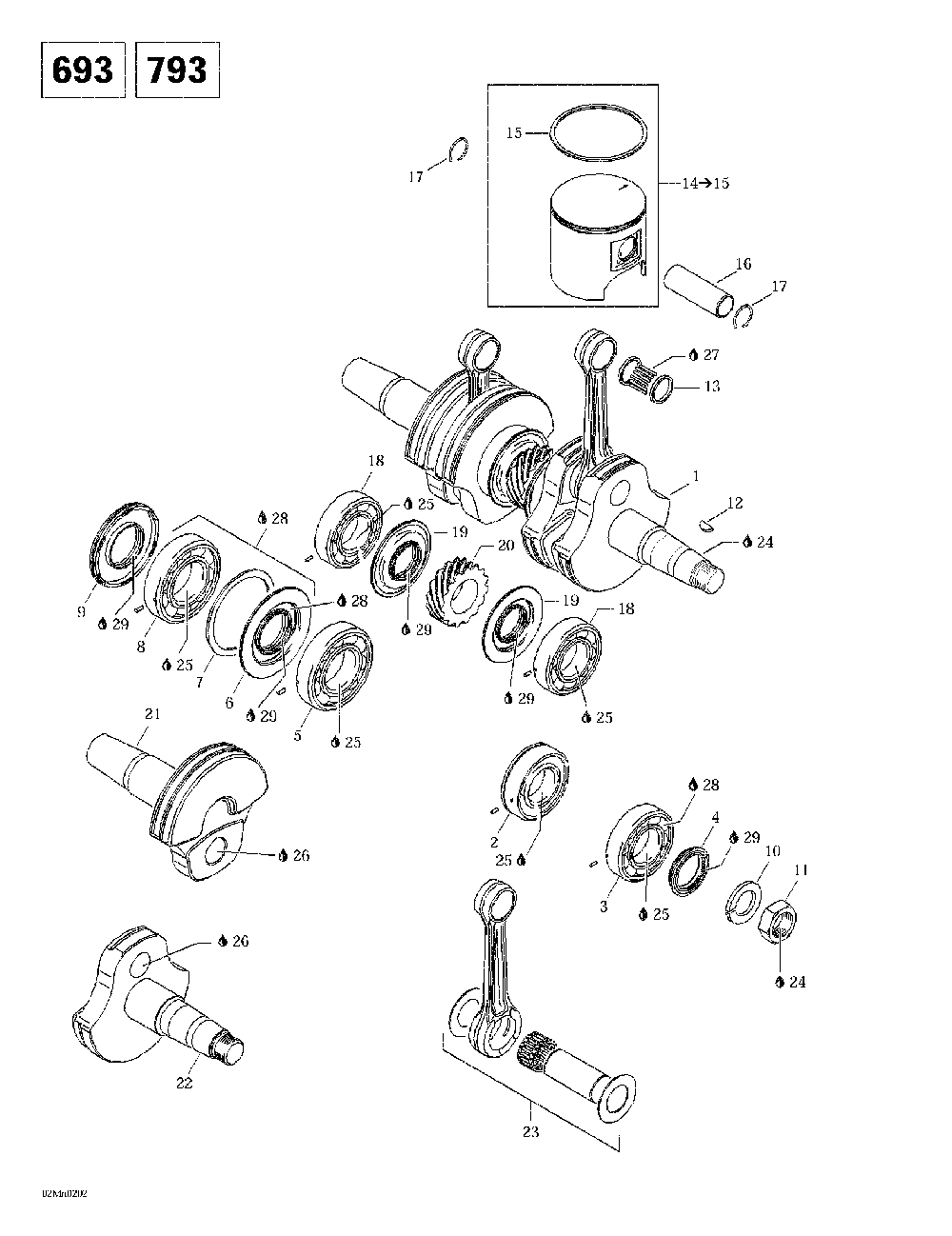

Коленчатый вал и поршни (693, 793)

Ski-Doo (Bombardier) MX Z 500/600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
421000574
Vilebreq.refait*crank.rebuild 693 Includes 1 - 9. Mx Z 700.
1
421000573
Vilebreq.refait*crank.rebuild 793 Includes 1 - 8. Mx Z 800.
2
420832633
Roulement Bille*ball Bearing Mx Z 700. Mx Z 800.
3
420832575
Roulement Bille*ball Bearing Mx Z 700. Mx Z 800.
4
420931792
Anneau Etanche *seal-oil Mx Z 700. Mx Z 800.
5
420832600
Roulement Bille*ball Bearing Mx Z 700. Mx Z 800.
6
420931910
Anneau Etanche *seal-oil Mx Z 700. Mx Z 800.
7
420926190
Rondelle *washer Mx Z 700. Mx Z 800.
420832601
Roulement Bille*ball Bearing Mx Z 800.
9
420931280
Anneau Etanche *seal-oil Mx Z 700.
420931285
Anneau Etanche *seal-oil Mx Z 800.
10
420945759
Rondelle-frein *washer-lock 22 Mx Z 700. Mx Z 800.
11
420842234
Nut-hex.m22 X 1, 5 Mx Z 700. Mx Z 800.
12
420246015
Clavette *key-woodruff Mx Z 700. Mx Z 800.
13
420832428
Roul.aiguille *needle Bearing Mx Z 700. Mx Z 800.
14
420888298
Piston 77, 88 *piston-assy 77, 88 Includes 14 - 15. Mx Z 700.
420889457
Piston 81, 87 *piston-assy 81, 87 Mx Z 800.
15
420815226
Segment Semi-tr*ring-semi Trap Mx Z 700.
420815360
Segment Semi Tr*ring Semitrapez Mx Z 800.
16
420916371
Axe De Piston *pin-gudgeon Mx Z 700. Mx Z 800.
17
420845106
Circlip Piston *circlip-piston Mx Z 700. Mx Z 800.
19
420931455
Anneau Etanche *seal-oil Mx Z 700. Mx Z 800.
20
420834355
Engrenage Cent.*gear-central Mx Z 700. Mx Z 800.
21
420818708
Vilebrequin Pto*crankshaft-pto Mx Z 700.
420819030
Vilebrequin Pto*crankshaft-pto Mx Z 800.
22
420818739
Vilebrequin Mag*crankshaft-mag Mx Z 700.
420819061
Vilebrequin Mag*crankshaft-mag Mx Z 800.
23
420684653
Ens.tige Rep. *kit-rod Repair Mag-side Mx Z 700.
420684654
Ens.tige Rep. *kit-rod Repair Pto-side Mx Z 700.
24
293800060
Loctite 243 *loctite-243 Mx Z 700. Mx Z 800.
25
293800070
Loct.anti Grip.*loct-antiseize Mx Z 700. Mx Z 800.
26
413711400
Loctite 648 *loctite-648 Mx Z 700. Mx Z 800.
27
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Mx Z 700. Mx Z 800.
28
293550021
Graisse Isoflex*grease-isoflex Mx Z 700. Mx Z 800.
29
420899271
Graisse *grease Mx Z 700. Mx Z 800.
13
420832445
Roul.aiguille *needle Bearing Mx Z 700. Mx Z 800.
